Technical Information
13
S2 Canister Vacuums

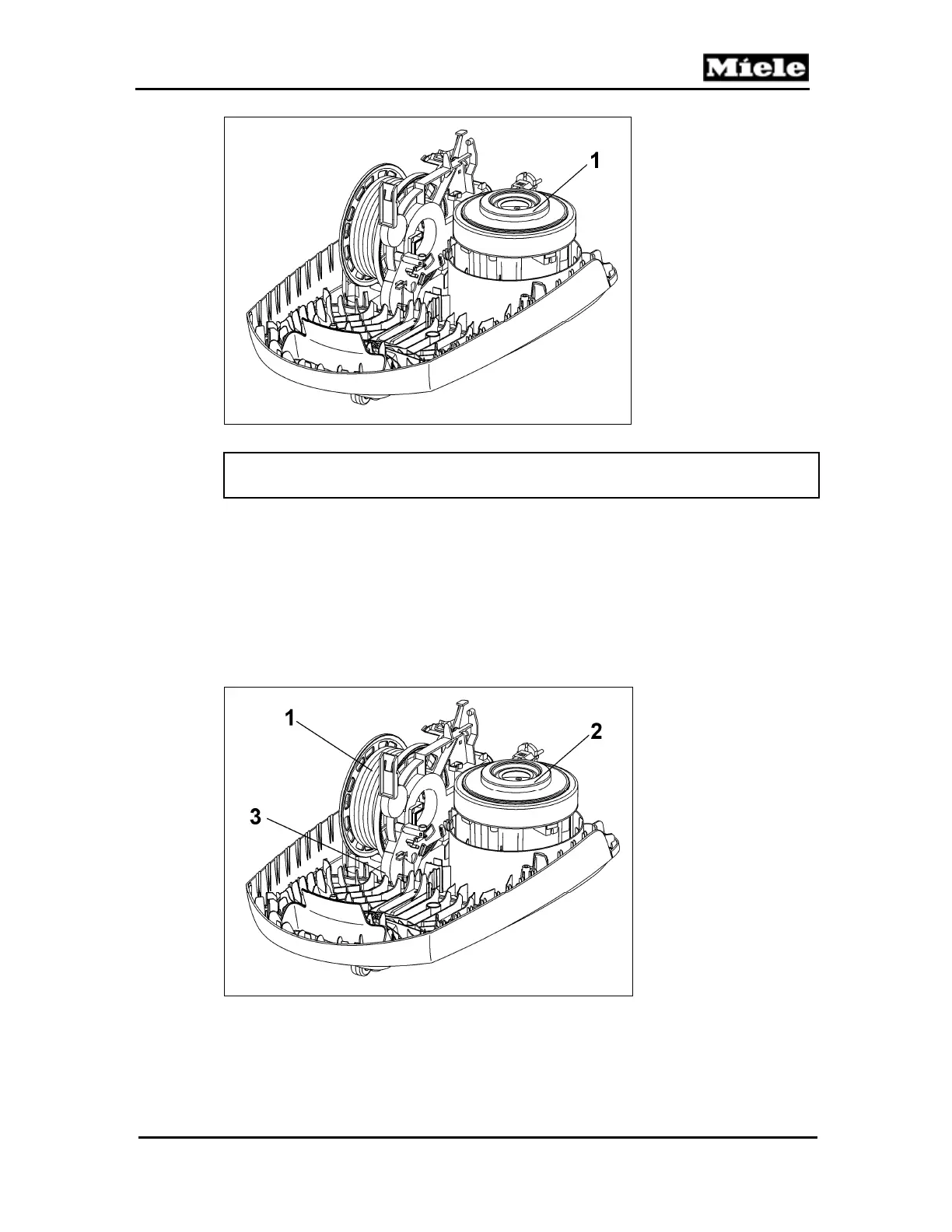

Figure 010-4: Motor
Note:
When re-installing, the rubber seal must first be installed in the cover frame.
4.3 Cord Reel Removal
1. Remove the casing top. See Section 020-4.3.
2. Remove the cap. See Section 030-4.1.
3. Release the electronic retainer, Figure 010-3, Item 1, and tilt it upwards,
Figure 010-3, Item 2.
4. Remove the cover frame; see Section 020-4.5.
5. Disconnect the cord reel (Figure 010-5, Item 1) from the motor (Figure
010-5, Item 2).
Figure 010-5: Cord Reel and Motor
6. Free the cord reel assembly from its retainers (Figure 010-5, Item 3, and
Figure 010-6, Item 1).
