Miele S2 Series - Pushbutton Replacement (for Telescopic Hoses); Figure 040-3: Pushbutton Replacement

Technical Information
34
S2 Canister Vacuums
4.2 Pushbutton Replacement (for Telescopic Hoses)
1. Pry off the old pushbutton with a small flathead screwdriver.
2. Place the bar, Figure 040-3, Item D, in its holder.
3. Place the spring, Figure 040-3, Item A, in its holder.
4. Place the pushbutton, Figure 040-3, Item B, on the bar.
5. Push the housing, Figure 040-3, Item C, into position.
6. Check for correct function.

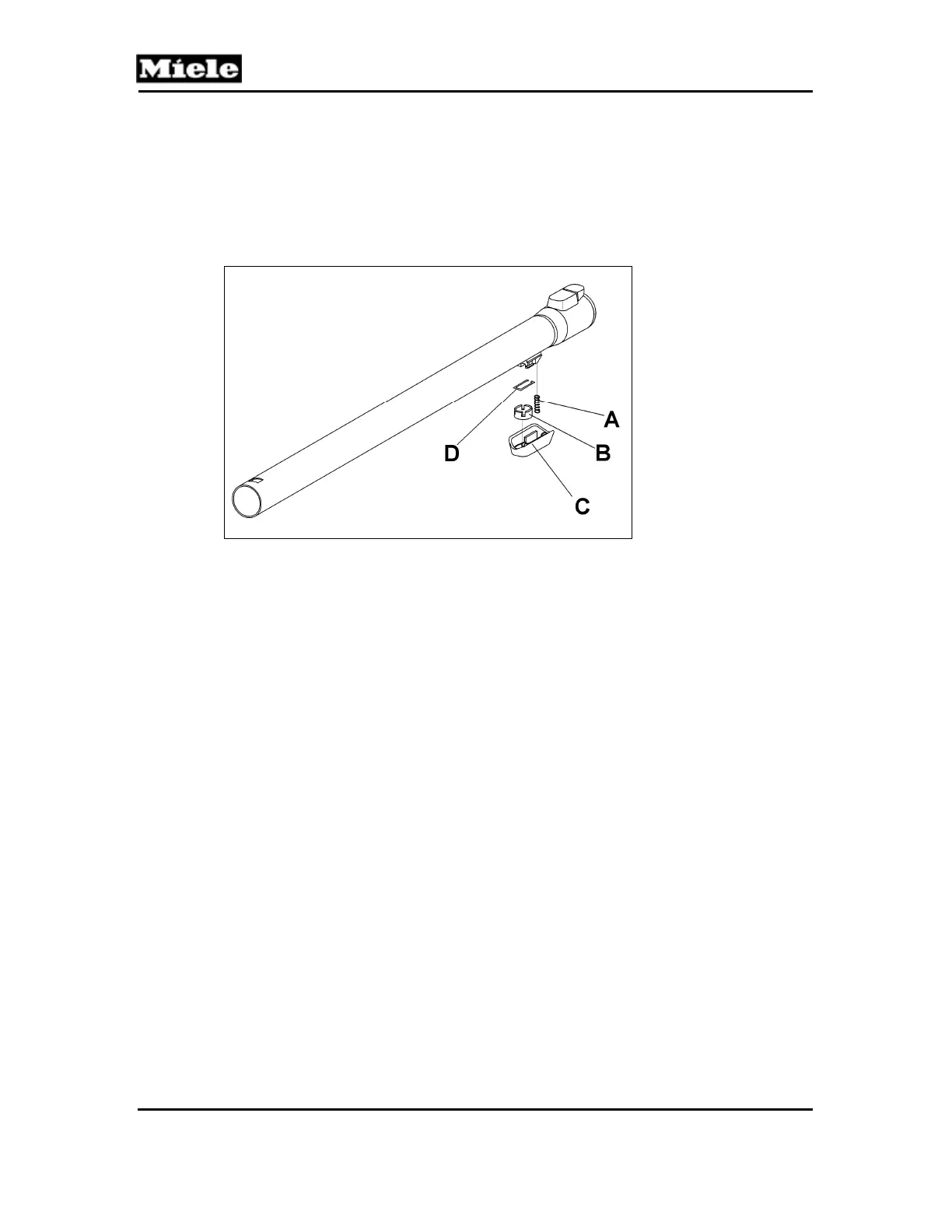

Figure 040-3: Pushbutton Replacement
