Technical Information
16
S2 Canister Vacuums

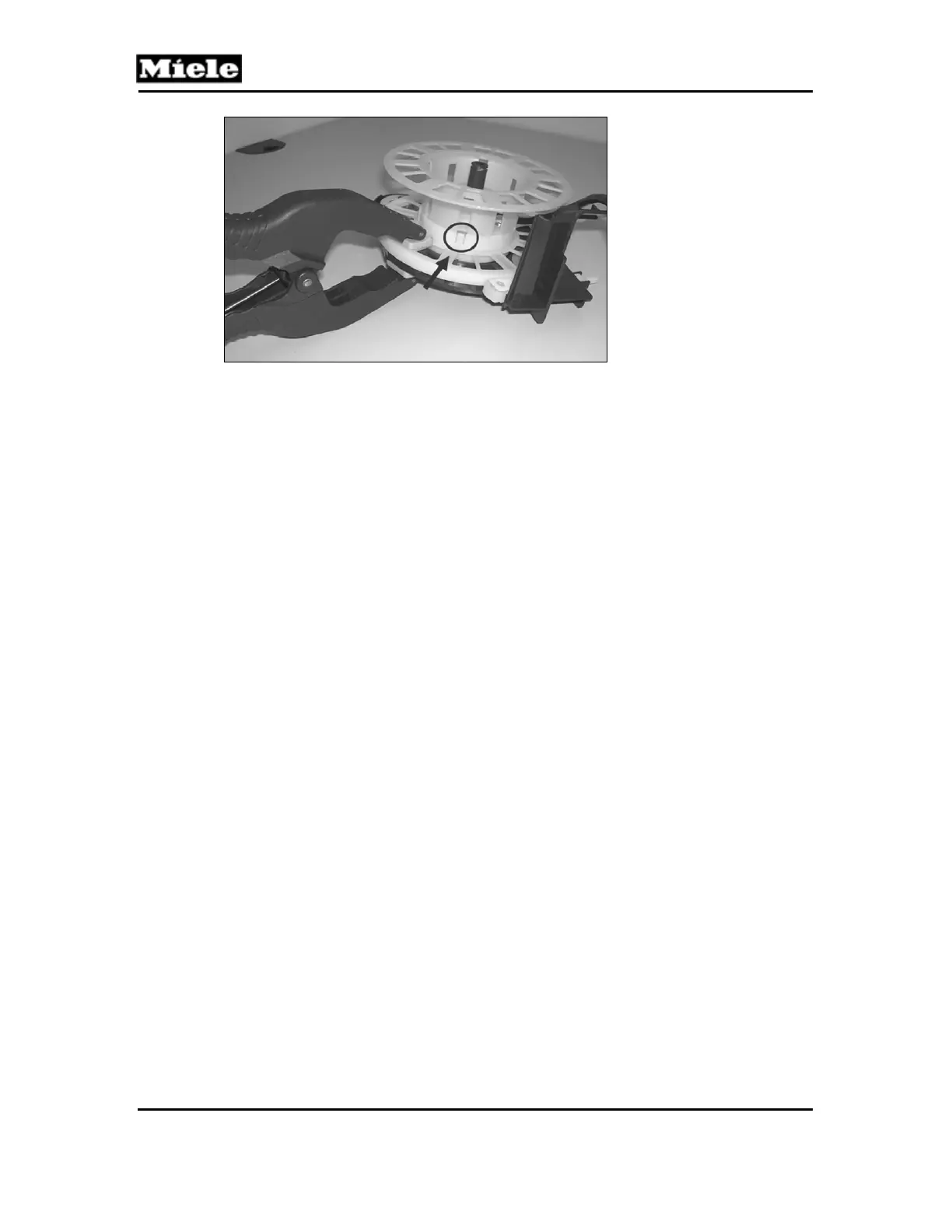

Figure 010-10: Cord Reel Tabs
6. Remove the cord from the cord reel.
7. Install the new cord.
8. Reassemble the reel halves. Do not remove the clamp until the cord reel
halves are fully assembled.
9. When the reel has been reassembled, remove the clamp and retract the
cord slowly, leaving a 6” tail. Once the cord reel is installed in the vacuum
it is important to do an operational check and ensure that the cord
extends and retracts correctly.
