Miele S2 Series - Figure D-3: External Component Layout (with Basic Suction Hose)

Technical Information
8
S2 Canister Vacuums

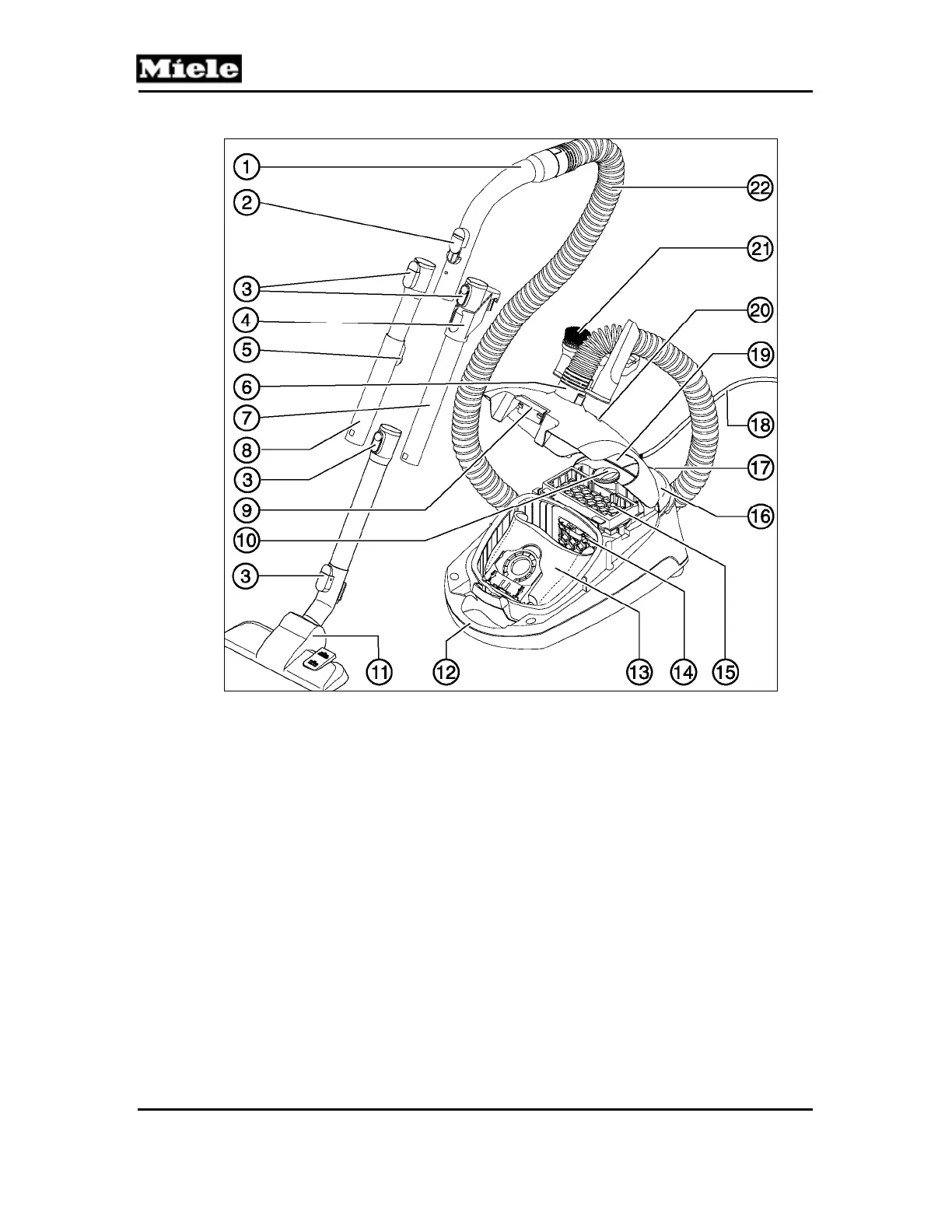

Figure D-3: External Component Layout (with Basic Suction Hose)
1
Handle
13
Bag
2
Air inlet valve
14
Motor protection filter
3
Release button
15
Exhaust filter (model-dependent)
4
Easylock suction hose
16
On/off footswitch
5 Adjustment knob for telescopic
suction hose(model-dependent)
17
Park System
6
Connection receptacle
18
Power cord
7
Suction hose (model-dependent)
19
Footswitch for automatic cord rewind
8 Telescopic suction hose
(model-dependent)
20
Bag change indicator
9 Release button for dust compartment
cover
21
Accessory holder for 3 accessories
10
Suction power regulator
22
Suction hose
11
Floor attachment
Not shown Suction hose holder (on underside of
appliance)
12
Carrying handle
