Miele S2 Series - Motor Removal; Figure 010-2: Caster Removal; Figure 010-3: Electronic Retainer

Technical Information
12
S2 Canister Vacuums

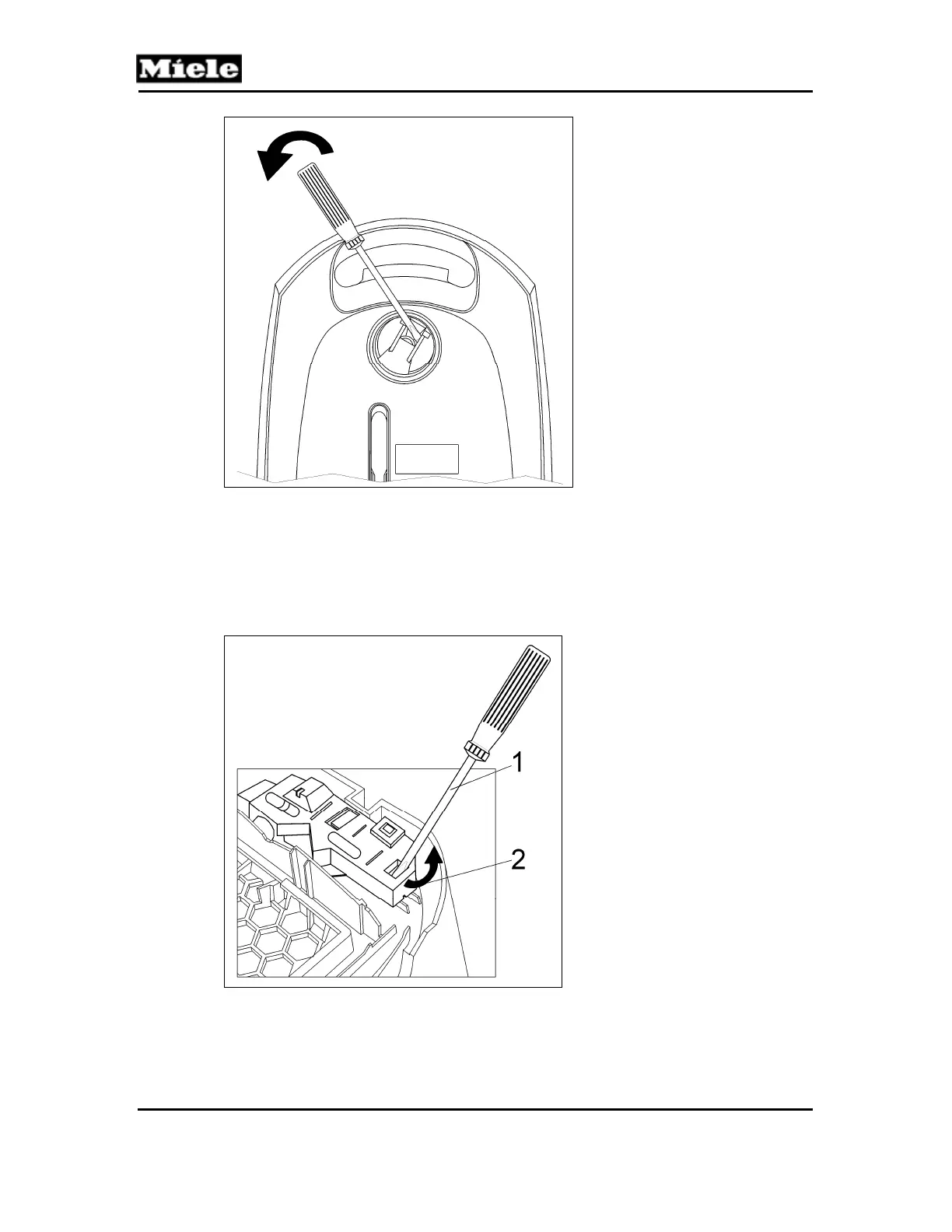

Figure 010-2: Caster Removal
4.2 Motor Removal
1. Remove the casing top. See Section 020-4.3.
2. Remove the cap. See Section 030-4.1.
3. Release the electronic retainer, Figure 010-3, Item 1, and tilt it upwards,
Figure 010-3, Item 2.
Figure 010-3: Electronic Retainer
4. Remove the cover frame; see Section 020-4.5.
5. Lift the motor (Figure 010-4, Item 1) up and out of the appliance.
6. Disconnect the connection to the cord reel.
