Technical Information
15
S2 Canister Vacuums
3. Clamp the cord reel to the body of the cord reel assembly to immobilize it.
See Figure 010-8. Failure to clamp the cord reel can allow it to rotate,
changing the spring tension and affecting operation. The reel can also
separate from the body, releasing the tension spring. Always clamp the
reel to the body before performing any cord repair.

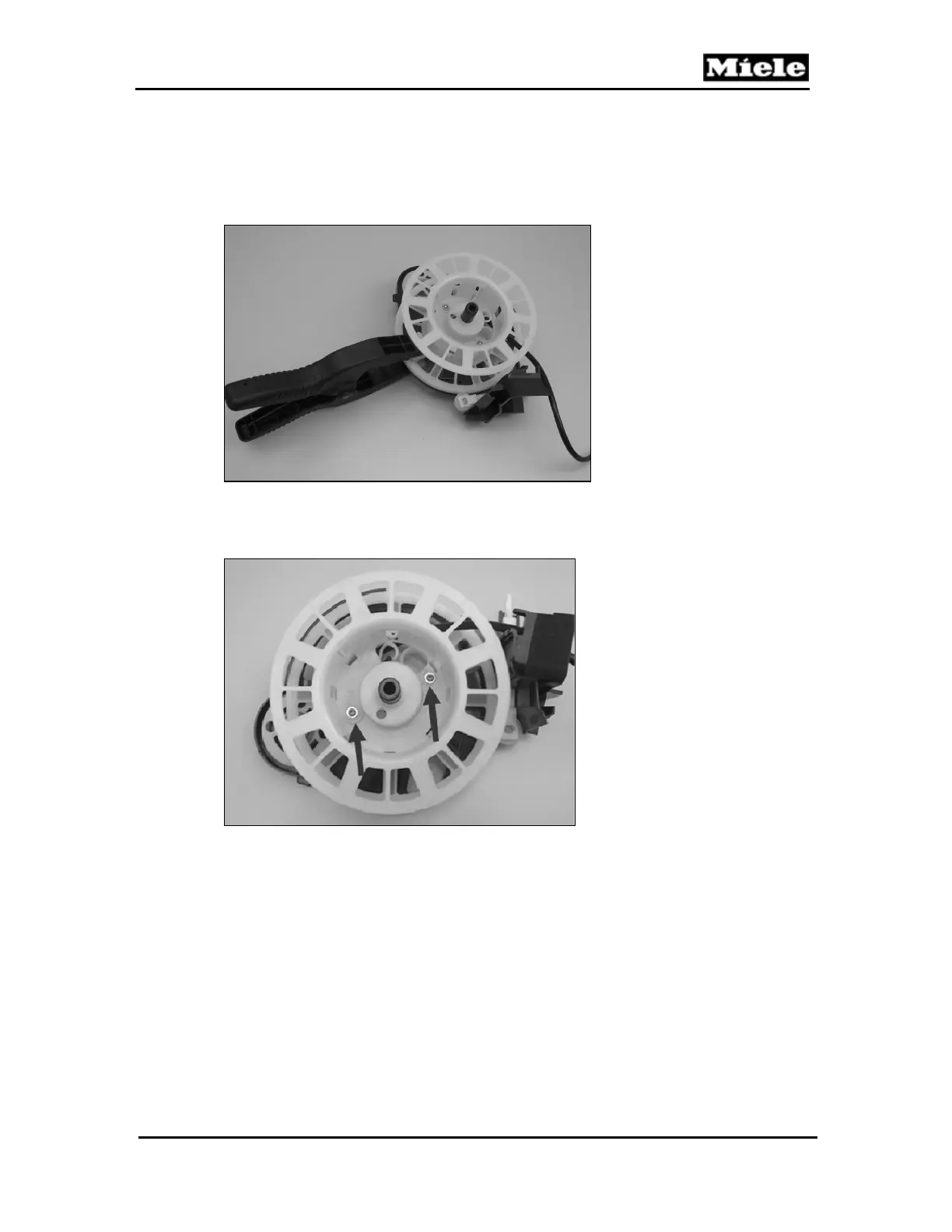

Figure 010-8: Cord Reel Clamped to Reel Assembly Body
4. Once the clamp is in place, remove the 2 T10 screws from the cord reel.
See Figure 010-9.
Figure 010-9: Screws Securing Cord Reel
5. Release the tabs holding the two halves of the cord reel together. See
Figure 010-10. The top of the reel will lift straight up.
