Mikado LOGO 200 - 1.2 Main Frame - Top Frame Assembly; 1.3 Main Frame - Lower Frame Assembly

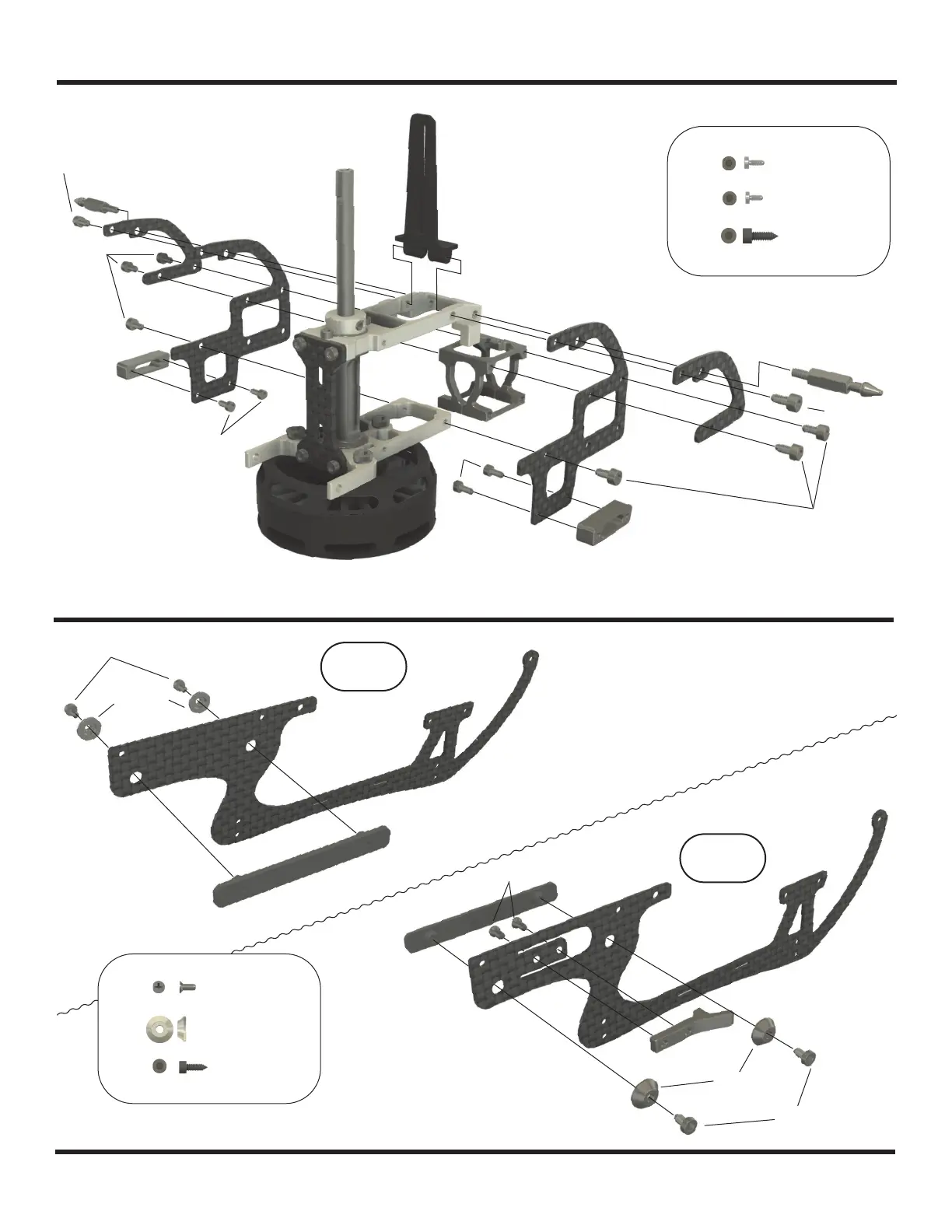

1.2 Main Frame - Top Frame Assembly
1.3 Main Frame - Lower Frame Assembly
Manual Logo 200 - ©Mikado Model Helicopters - Page 5
6 x
4 x
2 x
M2 x 4
M1.6 x 3
2 x 6 screw
M2x4
2 x 6 screw
2 x 6 screw
M2x4
M1.6x3
1.6x4
M1.6x3
1.6x4
1.6x6x2
washer
1.6x6x2
washer
M1.6x3
2 x
4 x
4 x
M1.6x3
1.6 x 4
1.6x6x2 washer
Right
Side
Left
Side
