Mikado Logo 600 - 3 Tail Boom; Tail Boom Installation and Ball Links

Manual LOGO 600 - ©Mikado Model Helicopters GmbH - Page 5
2x M3
1x M2x6
1x M2 Stop
2x M2,5x30
4x
Kugel/ball/Rotule Ø6x3
2x
M3x40
M3x40
M2x6
M2 Stop
M3x3
M2,5x30 (2x)
Ø4x705 mm
Ø5x520 mm

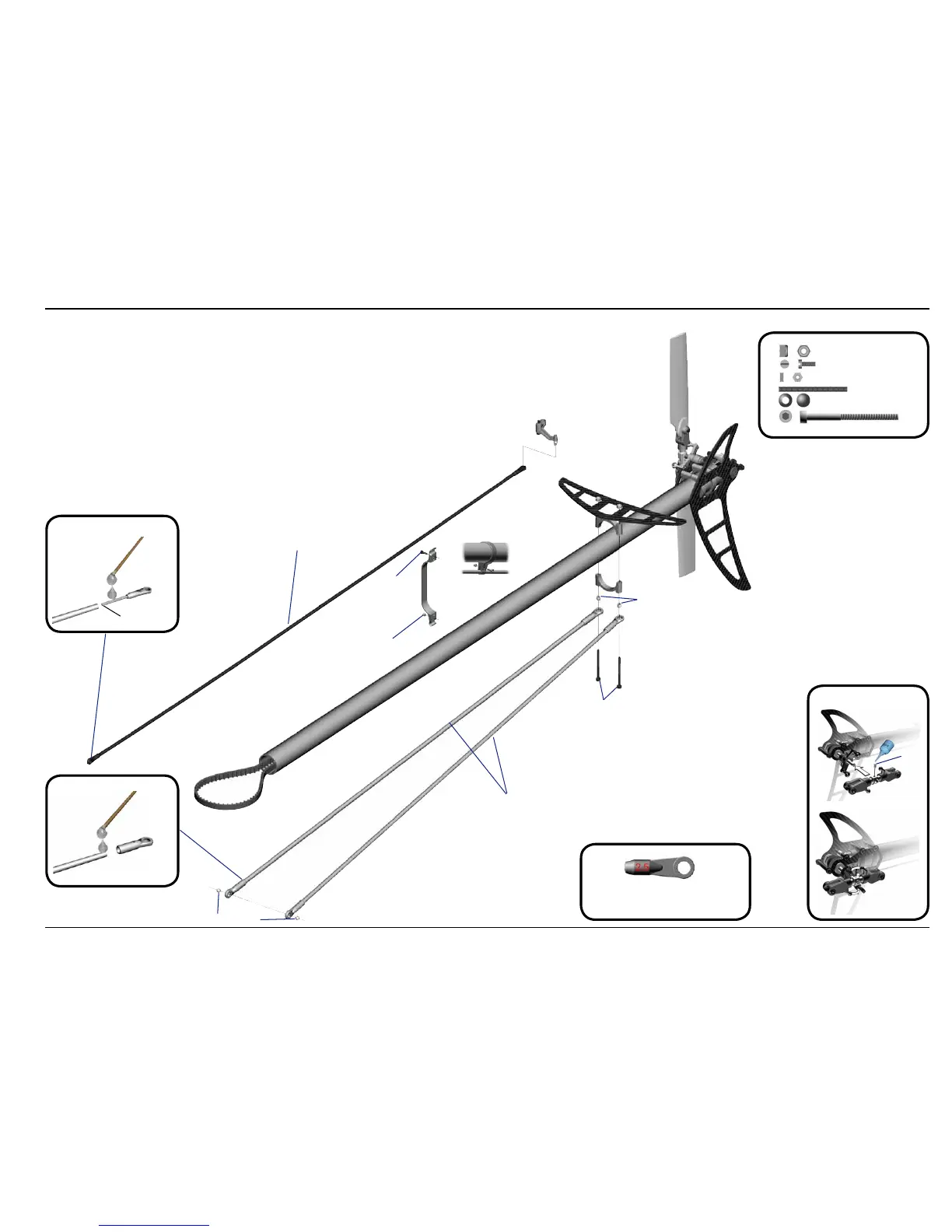

3 Tail Boom
Bag 6
Bag 5
Bag 6 + 11
Bag 6 + 11
Ball Ø6 mm
Ball Ø6 mm
Attach the ball links so that the engraved
number is on the outer surface pointing to-
wards you.
5 Min. Epoxy
5 Min. Epoxy
