Mikado Logo 600 - 4 Main Gear & Tail Boom Assembly; Integrating Main Gear and Tail Boom

Manual LOGO 600 - ©Mikado Model Helicopters GmbH - Page 6
5
4x M3
4x M3x10
4x M3x3
1x
4x M3x8
1x 10x16x0,2
1x 10x16x0,5
1x 3x16
1x M2,5x8


4

10x16x0,2
10x16x0,5
M3x8
(4x)
M3x10
M3x10
M3 Stopp (4)
M3x20
(7x)
1x 2,2x6
Secure scids using set screws 3x3.
Tighten tooth belt:
Pull tail rotor backwards and tighten screws
Grease
autorotation hub

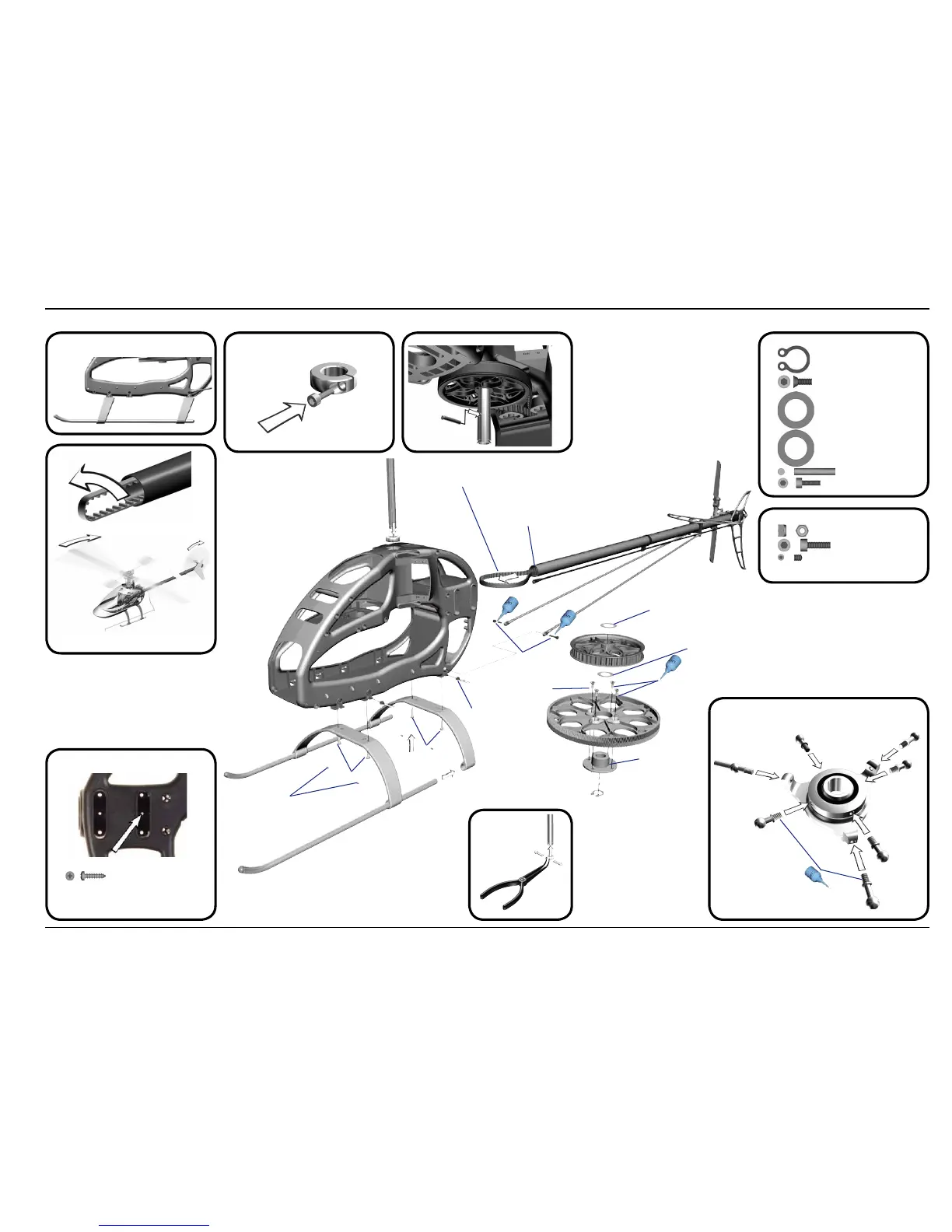

4 Main Gear & Tail Boom Assembly
Bag 2 • Bag 3 • Bag 6 • Bag 8
Bag 2
Swashplate bag 3
Bag 8
Tighten the pivot bolts
very carefully. Do not
overtighten them, as
they will break off.
Attach the tail boom with a screw 2.2x6
Push in tail boom until locked.
