Mikado Logo 600 - 6 V-Bar Rotor Head 600; V-Bar Rotor Head Assembly; Swashplate Driver Adjustment

Manual LOGO 600 - ©Mikado Model Helicopters GmbH - Page 8
5x M3x8
6x 3x8
2x 8x11x0,5
4x 8x16x5
2x 8x16x5
2x
11,5x16x1
2x M3x10
1x M3x20
2x M3x35
2x M5x12
2x M4x35
2x
5x15x1
3x M3
2x M4
2x Ø4,8x3
2x 3x12
4x 3x7x3
4x 3x6x2,5
2x 3x5x2
2x M3x14
1x M3x5
2x 3x5x0,3
 

4
7
8
9
5
6
M3x8 (5x)
M3 Stopp
M3 Stopp
M3x20
3x12
(5x)
48 mm
M3x10
M3x35
3x7x3
3x5x2
3x6x2,5
M3x14
M3x5
3x5x0,3
8x11x0,5
3x8
2x
M5x12
M5x12
10x14x1
8x14x4
11,5x16x1
11,5x16x1
6 V-Bar Rotor Head 600
Bag 7
Bag 7

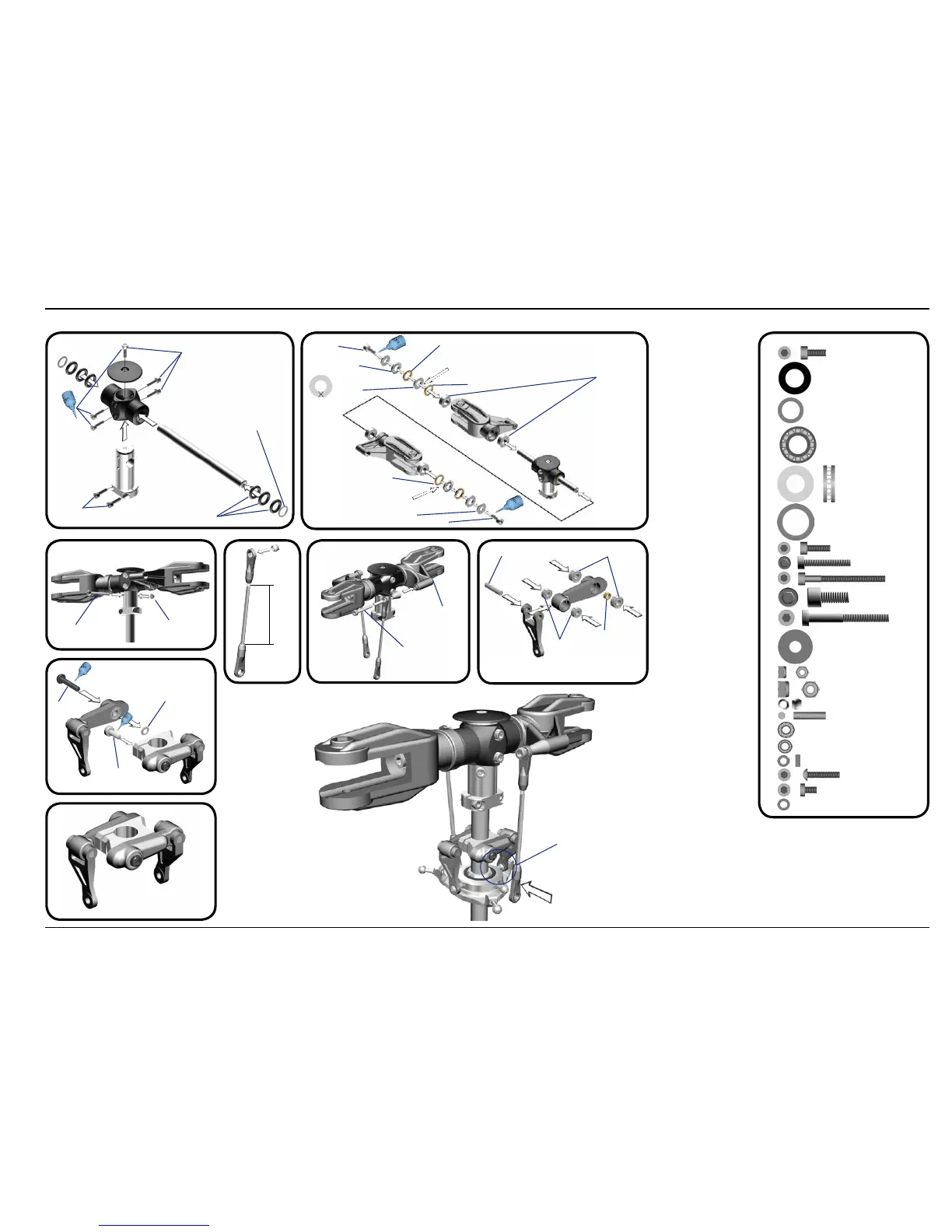

Please adjust the swashplate driver in such a way
that the balls on the inner and outer ring of the
swashplate are positioned exactly on a line along
the longitudinal axis of the heli.
Large inner
diameter
Small inner
diameter
Apply grease to bearing
If the blade holder shows axial
play, use one shime 10x16x0.5.
If the blade holder shows axial
play, use one shime 10x16x0.5.
