OM-193472 Page 29
Description
Part
No.
Dia.
Mkgs.
Item
No.

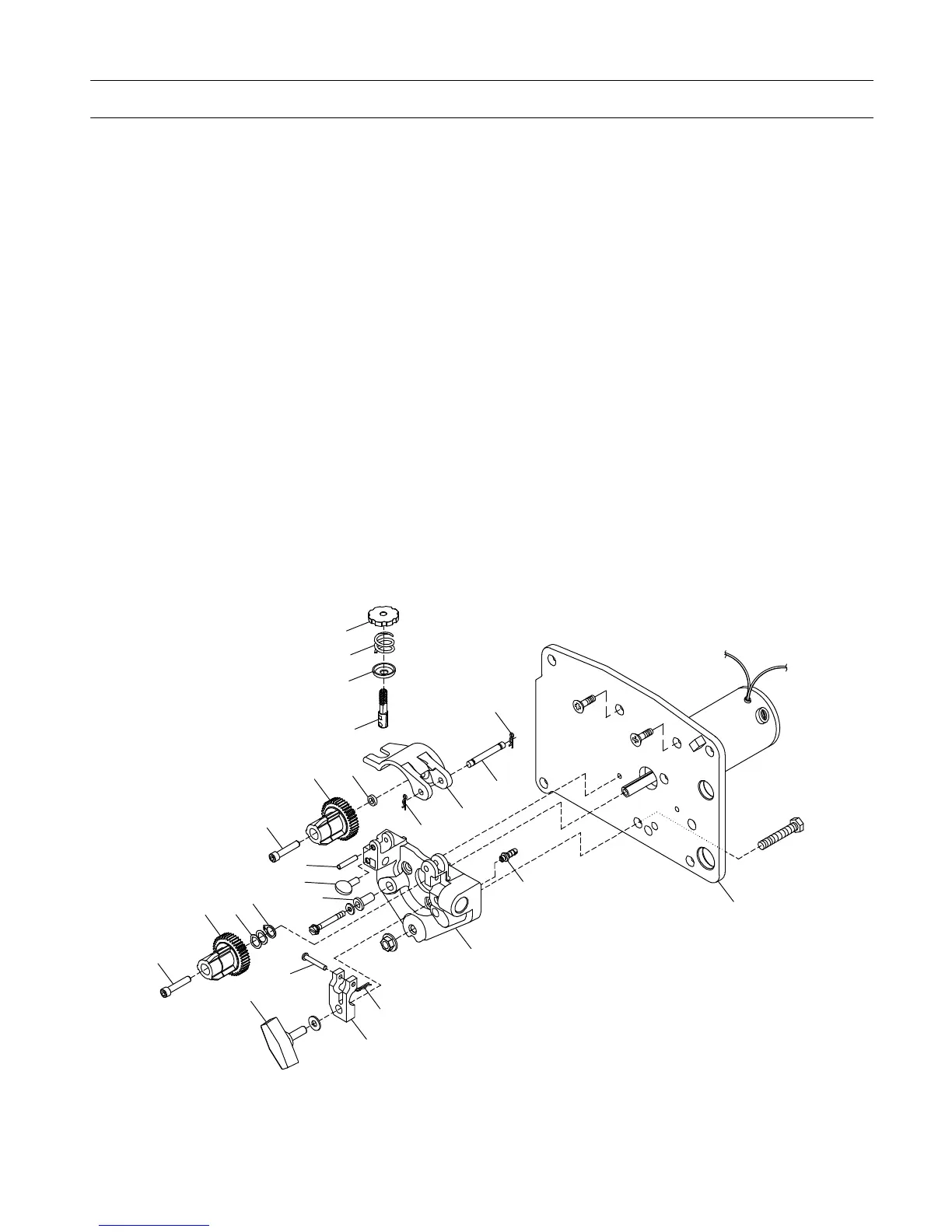

Figure 9-2. Drive Assembly, Wire (2 Drive Roll) (Fig 9-1 Item 40)
Quantity
1 602009 Screw, .250-20 X 1.250 Soc Hd Hex Gr 8 1... ............. ... ...........................
2 172075 Carrier, Drive Roll W/Component 24 Pitch 1... ............. ... ...........................
3 054263 Screw, Thumb Stl .250-20 X .500 1... ............. ... ..................................
4 010224 Pin, Spring Cs .187 X 1.000 1... ............. ... .......................................
5 166072 Spacer, Gear 1... ............. ... ....................................................
6 237842 Fastener, Pinned 1... ............. ... .................................................
7 085244 Washer, Cupped Stl .328 Id X .812 Od X .125 1... ............. ... ........................
8 089477 Spring, Cprsn .770 Od X .105 Wire X 1.225 1... ............. ... .........................
9 240975 Knob, Adjustment Tension 1... ............. ... .........................................
10 166071 Lever, Mtg Pressure Gear 1... ............. ... .........................................
11 151828 Pin, Cotter Hair .054 X .750 3... ............. ... .......................................
12 079634 Pin, Hinge 1... ............. ... .......................................................
13 144172 Fitting, Hose Brs Barbed M 3/16 Tbg X .250-20 1... ............. ... ......................
14 233319 Housing, Adapter Gun/Feeder 1... ............. ... .....................................
15 048449 Washer, Shldr Nyl .363 Od X .194 Id X .703 2... ............. ... .........................
16 124778 Knob, T 2.000 Bar W/.312-18 X 1.000lg 1... ............. ... .............................
17 605308 Ring, Rtng Ext .500 Shaft 1... ............. ... .........................................
18 079625 Washer, Wave .500 Id X .750 Od X .015Thk 2... ............. ... .........................
19 121271 Screw, .250-20 X .500 Soc Hd 1... ............. ... .....................................
20 172076 Carrier, Drive Roll W/Components 24 Pitch 1... ............. ... ..........................
21 192874 Insulator, Motor Drive 1... ............. ... .............................................
22 278295 Clamp, Power Pin Cast 1... ............. ... ...........................................
23 234073 Pin, Hinge 1... ............. ... .......................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
802 019-C
See Table 9-1 For
Drive Roll & Wire Guide Kits
11
11
22
23
Figure 9-2. Drive Assembly, Wire (2 Drive Roll )
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
