Miller 22A - Parts List - Continued; Drive Assembly, Wire (4 Drive Roll) Parts List

OM-193472 Page 30
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 9-3. Drive Assembly, Wire (4 Drive Roll) (Fig 9-1 Item 40)
Quantity
1 602009 Screw, .250-20 X 1.250 Soc Hd Hex Gr 8 4... ............. ... ...........................
2 172075 Carrier, Drive Roll W/Component 24 Pitch 4... ............. ... ...........................
3 166072 Spacer, Gear 4... ............. ... ....................................................
4 054263 Screw, Thumb Stl .250-20 X .500 2... ............. ... ..................................
5 010224 Pin, Spring Cs .187 X 1.000 2... ............. ... .......................................
6 237842 Fastener, Pinned 2... ............. ... .................................................
7 085244 Washer, Cupped Stl .328 Id X .812 Od X .125 2... ............. ... ........................
8 089477 Spring, Cprsn .770 Od X .105 Wire X 1.225 2... ............. ... .........................
9 240975 Knob, Adjust Tension 1.250 Dia X .312−18 Thrd 2... ............. ... ......................
10 230691 Lever, Mtg Pressure Gear 1... ............. ... .........................................
11 079634 Pin, Hinge 1... ............. ... .......................................................
12 151828 Pin, Cotter Hair .054 X .750 2... ............. ... .......................................
13 238728 Lever, Mtg Pressure Gear 1... ............. ... .........................................
14 605308 Ring, Rtng Ext .500 Shaft 1... ............. ... .........................................
15 192875 Insulator, Motor Drive (4 Roll) 1... ............. ... ......................................
16 187325 Insulator, Drive Assembly 1... ............. ... .........................................
17 144172 Fitting, Hose Brs Barbed M 3/16 Tbg X .250-20 1... ............. ... ......................
18 238726 Housing, Adapter Gun/Feeder 1... ............. ... .....................................
19 124778 Knob, T 2.000 Bar W/.312-18 X 1.000lg 1... ............. ... .............................
20 221654 Washer, Shldr Insulating 2... ............. ... ..........................................
21 079625 Washer, Wave .500 Id X .750 Od X .015Thk 2... ............. ... .........................
22 253187 Spacer, Stl .500 Id X .875 Od X 14 Ga 1... ............. ... ..............................
23 092865 Key, Stl 1... ............. ... .........................................................
24 172077 Carrier, Drive Roll Keyed 24 Pitch 1... ............. ... ..................................
25 121271 Screw, .250-20 X .500 Soc Hd 1... ............. ... .....................................
1
2
3
4
5
6
7
8
9
10
11
12
13
16
17
18
19
14
20
21
22
23
250 577-D
. Hardware is common and
not available unless listed.
See Table 9-2 For Drive
Roll & Wire Guide Kits
15
24
25

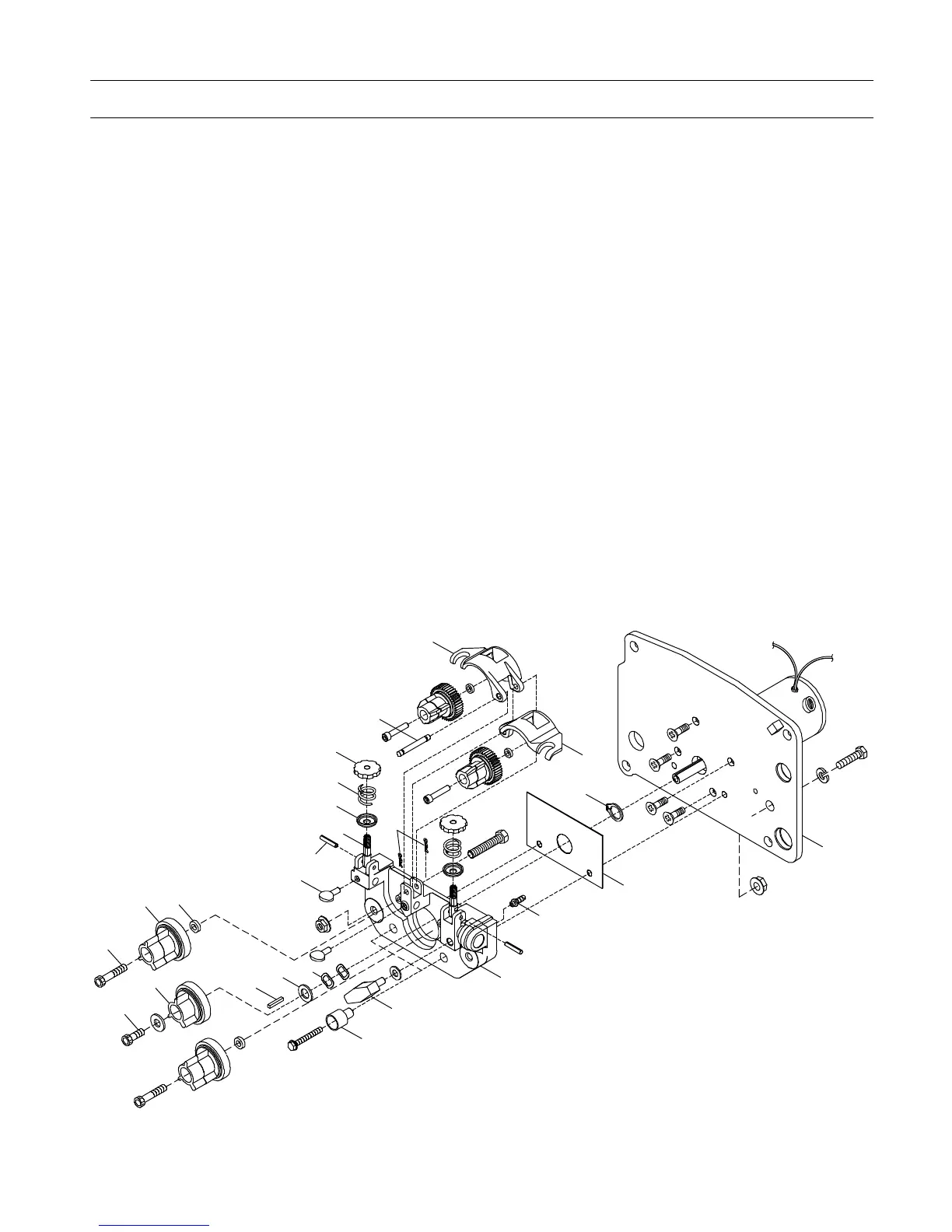

Figure 9-3. Drive Assembly, Wire (4 Drive Roll )
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
