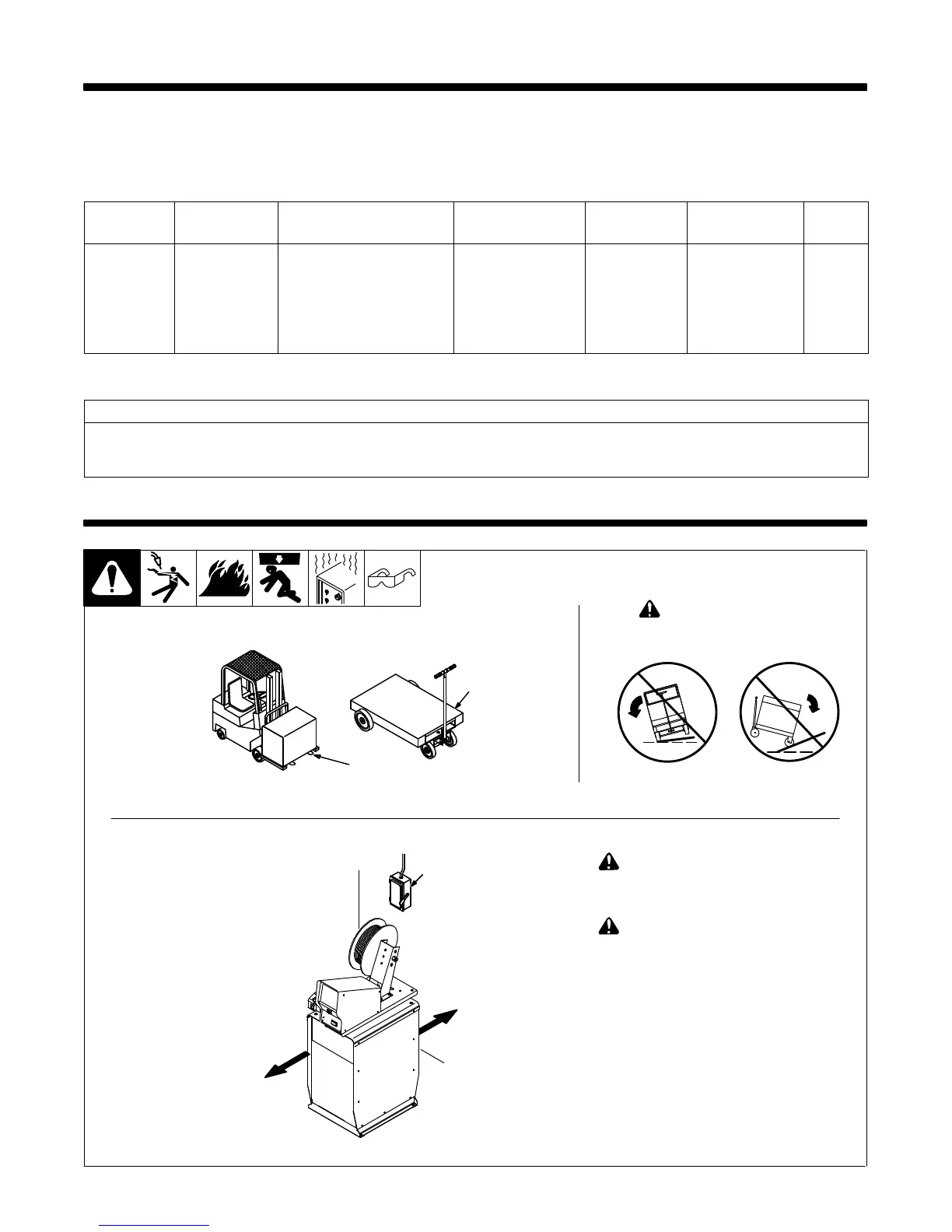

OM-248965 Page 13
SECTION 4 − SPECIFICATIONS
4-1. Serial Number And Rating Label Location
The serial number and rating information for this product is located on the back. Use rating label to determine input power requirements and/or rated
output. For future reference, write serial number in space provided on back cover of this manual.
4-2. Unit Specifications
Type of Input
Power
Welding Power
Source Type
Wire Feed Speed Range
Wire Diameter
Range
Welding Circuit
Rating
Overall
Dimensions
Weight
40 Volts DC
10 Amperes
Axcess E Series Standard: 40 To 1400 ipm
(1.0 To 35.6 mpm)
.035 To 3/32 in.
(0.8 To 2.4 mm)
Max Spool Weight:
60 lb (27 kg)
100 Volts,
750 Amperes,
100% Duty
Cycle
Length: 27 in.
(686 mm)
Width: 12-1/2 in.
(318 mm)
Height: 14-1/2 in.
(368 mm)
87 lb
(39.5 kg)
4-3. Environmental Specifications
IP Rating
IP2X
This equipment is designed for indoor use and is not intended to be used or stored outside.
IP2X 2014−06
SECTION 5 − INSTALLATION
! Special installation may be required
where gasoline or volatile liquids are
present − see NEC Article 511 or CEC
Section 20.
! Do not stack units. Beware of tipping.
1 Lifting Forks
Use lifting eyes or lifting forks to move unit.
If using lifting forks, extend forks beyond oppo-
site side of unit.
2 Hand Cart
Use cart or similar device to move unit.
3 Line Disconnect Device
Locate unit near correct input power supply.
5-1. Selecting A Location
3
18 in.
(460 mm)
18 in.
(460 mm)
OR
1
Movement
Location And Airflow
2
! Do not move or operate unit
where it could tip.
loc_axcessfeed 2016-01
