Miller Axcess E Dual User Manual

OM-248965 Page 14
248 966-A
1 Welding Power Source
2 Wire Feeder
3 Gas Cylinder
4 Gas Hose
5 Network Feeder Cable
6 Negative (−) Weld Cable
7 Workpiece
8 Voltage Sensing Lead
Recommended for Accu-pulse and
RMD (optional).
. Positive (+) voltage sensing
lead is contained in the motor
cable.
9 Positive (+) Weld Cable

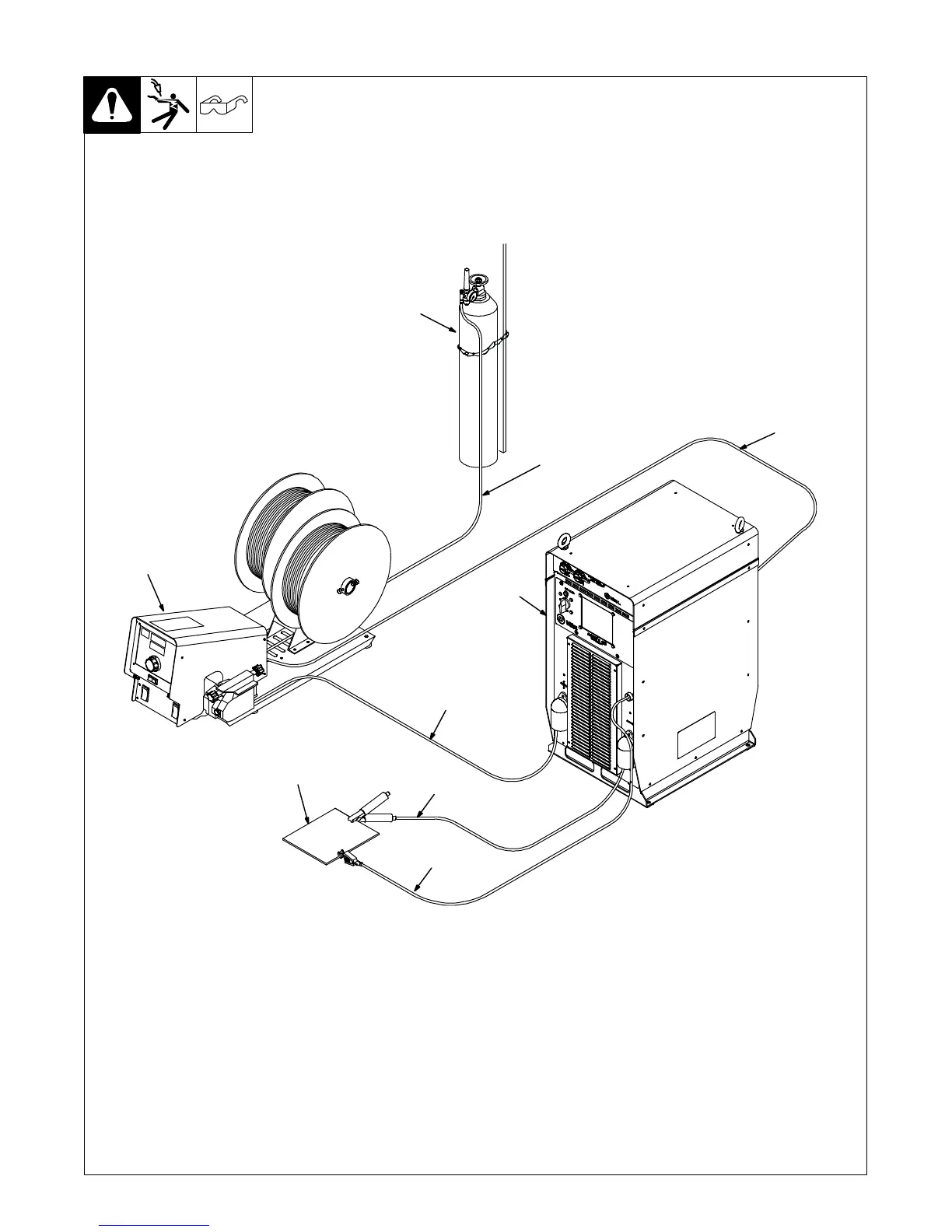

5-2. Connection Diagram
1
2
3
4
5
7
8
9
6
