Miller Axcess E Dual User Manual

OM-248965 Page 15

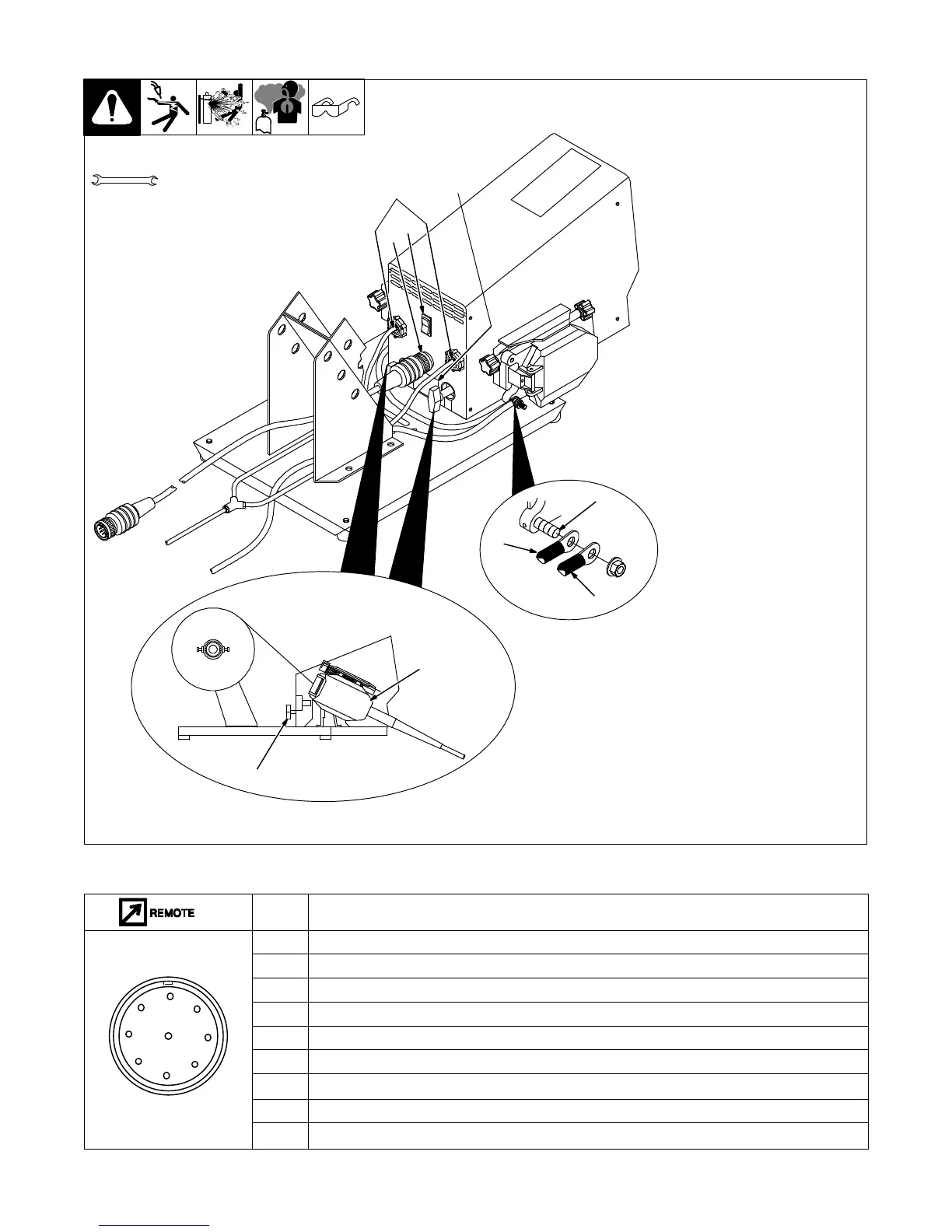

5-3. Rear Panel Connections And Rotating Drive Assembly
249 913-A / 802 825-A / Ref. 245 241-A
1 9-Pin Network Receptacle
2 Power Switch
3 Shielding Gas Valve Fitting
(Left And Right)
Requires fitting with 5/8-18 right-
hand threads. Connect customer-
supplied gas hose.
4 Weld Cable Terminal
5 Jumper Cable
6 Weld Cable
7 Drive Assembly
8 Drive Assembly Rotation
Knob (Left And Right)
9 Rating Label Location
To rotate the drive assembly,
loosen drive assembly rotation
knob, rotate drive assembly, and
tighten knob.
9/16, 5/8 in.
Tools Needed:
7
8
1
2
3
9
4
5
6
5-4. 9-Pin Network Receptacle Information
9
Pin Pin Information
A
B
I
C
H
D
G
E
F
A Capacitor C1 to ground
B Shield
C Volt sense
D Can low
E Can high
F +24 volts dc common
G + 24 volts dc
H Motor voltage +40 volts dc common
I Motor voltage +40 volts dc
