Miller Axcess E Dual - Page 58

OM-248965 Page 54
804 024-D
. Hardware is common and
not available unless listed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
8

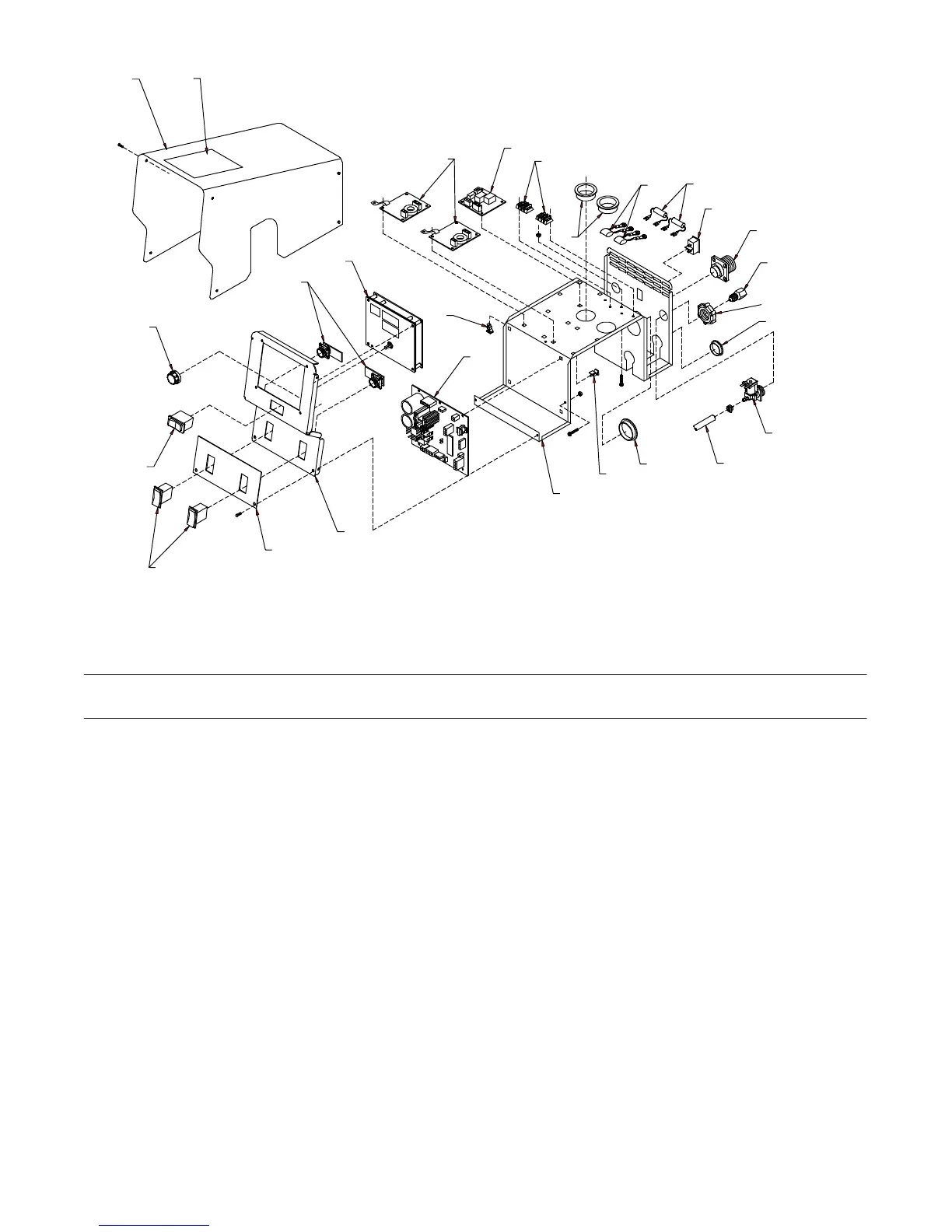

Figure 11-2. Control Box
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-2. Control Box (Figure 11-1 Item 21)
Quantity
1 +220321 Wrapper, Feeder Dual Axcess 1... .............. .. ...................................
2 134464 Label, Warning General Precautionary 1... ............... .. ............................
3 245603 Panel, PC Card Switch/Overlay 1... ............... .. ..................................
4 PC6 245594 Circuit Card Assy, Wire Feed Module w/Program 1... .... ..... .. ...................
5 134201 Stand−Off Support, PC Card 16... ............... .. ....................................
6 PC2 242362 Circuit Card Assy, Motor Filter 2... .... ..... .. ...................................
7 220063 Circuit Card Assy, Relay 1... ............... .. ........................................
8 010494 Bushing, Snap−In Nyl 1.375 ID x 1.750 Mtg Hole 2... ............... .. ..................
220314 Filter Assy, Sense Lead (Includes) 2..................... .. ...............................
9 038855 Block, Term 20 Amp 2 Pole Screw Term 2... ............... .... .........................
10 216696 Capacitor, w/Terminals (.027uf) 2... ............... .... ................................
11 224383 Resistor, w/Terminals (2k 5 Watt) 2... ............... .... ...............................
220458 Cable, Volt Sense 23 in. 1..................... .... ......................................
12 S1 213632 Switch, Rocker Dpdt 10A 250VAC/20A 30VAC On-None-On 1... ..... ...... .. .........
13 RC1 211018 Connector, Circ 97/Met 9 Pin Size 20 Rcpt 1... .... ...... .. ........................
14 211989 Fitting, w/Screen 2... ................ .. ...............................................
15 220805 Nut, 750-14 NPS 1.48hex .41h Nyl 2... ............... .. ...............................
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
