Miller Axcess E Dual - Page 60

OM-248965 Page 56
See Table 11-1 For
Drive Roll & Wire Guide Kits
. Hardware is common and
not available unless listed.
802950−F
6
7
8
9
1
2
3
4
5
14
15
16
17
18
13
10
11
12
13
12
19
20
21
22
23
24
28
26
25
27
31
32
35
33
34
6
1
2
3
4
5
29
30
36

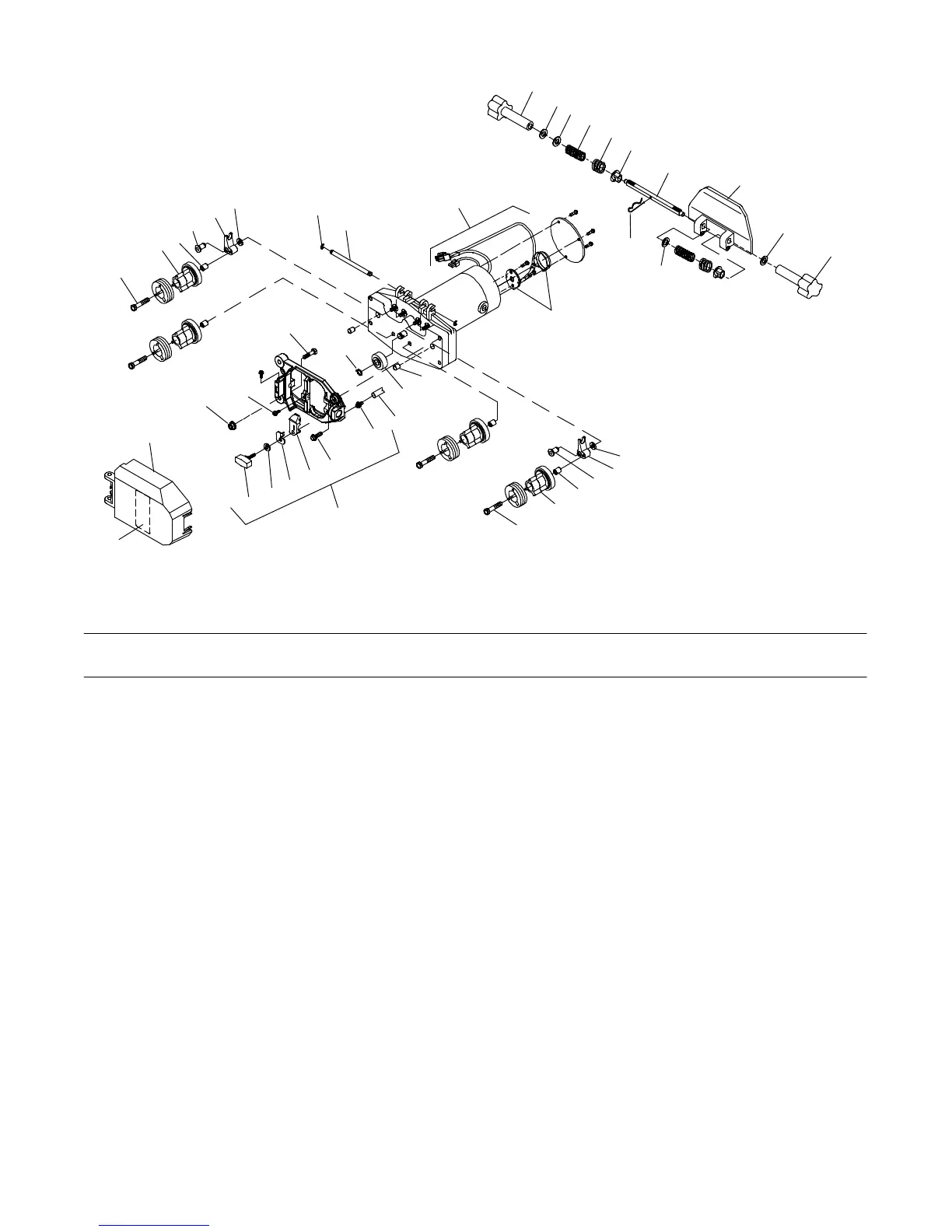

Figure 11-3. Drive Assembly, Wire
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-3. Drive Assembly, Wire (Figure 11-1 Item 4)
Quantity
1 010668 Screw, Cap Stl Sch .250-20 x 1.500 4... ............... .. ...............................
2 172075 Carrier, Drive Roll w/Components 4... ............... .. .................................
3 149962 Spacer, Carrier Drive Roll 4... ............... .. ........................................
4 149486 Pin, Rotation Arm Rocker 2... ............... .. ........................................
5 132750 Arm, Pressure 2... ............... .. ..................................................
6 150520 Spacer, Flat Stl .257 ID x .619 OD x .105 2... ............... .. ..........................
7 133493 Ring, Retaining Ext .250 Shaft X .025thk 2... ............... .. ...........................
8 133350 Pin, Hinge 1... ............... .. .....................................................
9 M1 *213005 Motor, Gear 1... .... ...... .. ....................................................
203631 Pressure Arm (Includes) 1..................... .. .........................................
10 182415 Pin, Cotter Hair 1... ............... .... ...............................................
11 203640 Knob, w/Extension Short Pressure Arm 1... ............... .... ..........................
12 133739 Washer, Flat Buna .375 ID x .625 OD x .062thk 2... ............... .... ...................
13 203641 Washer, Flat Stl SAE No. 8 2... ............... .... .....................................
14 182156 Spring, Cprsn 2... ............... .... .................................................
15 182155 Spring 2... ............... .... .......................................................
16 132746 Bushing, Spring 2... ............... .... ...............................................
17 203633 Shaft, Spring 1... ............... .... .................................................
18 203632 Carrier, Shaft 1... ............... .... .................................................
19 203637 Knob, W/Extension Long Pressure Arm 1... ............... .... ..........................
20 {Encoder Assy, Quad 500 CPR 5 VDC Shaftless w/Plug (Includes) 1... .......................... ....
261292 Encoder, Differential E8p 500cpr 1/4” Bore 1..................... .... ........................
261293 Cbl Assy, Shielded 4 Wire 18” Axcess Encoder w/Plug 1..................... .... .............
*Recommended Spare Parts.
{Have nearest Factory Authorized Service Agent replace encoder.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
