Miller Digital Elite User Manual

OM-256 476 Page 14
SECTION 5 − REPLACING THE LENS COVERS
5-1. Replacing Outside Lens Cover − Digital Pro-Hobby Series Helmets
! Never use the auto-darkening
lens without the inside and
outside lens covers properly
installed. Welding spatter will
damage the auto-darkening
lens and void the warranty.

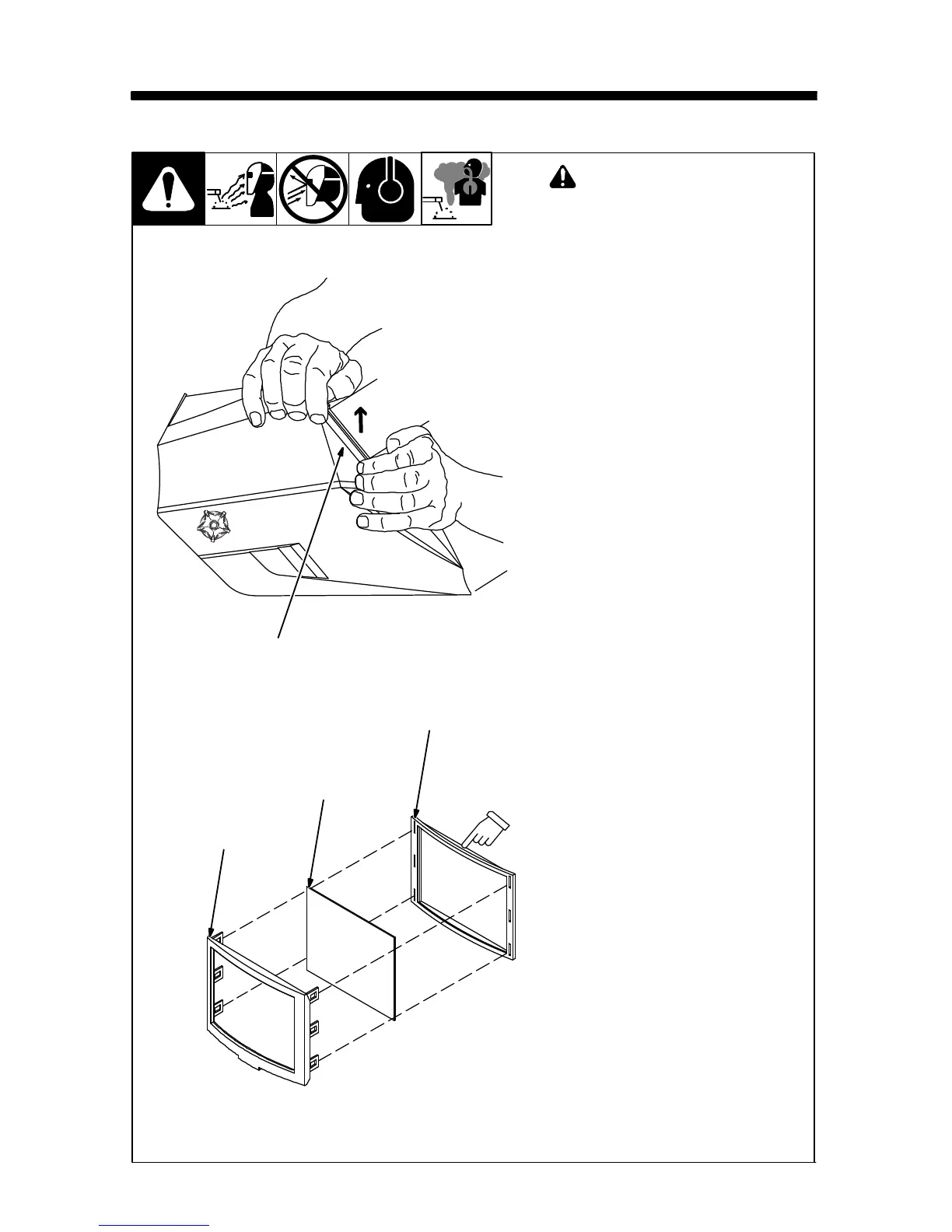

1 Outside Lens Cover Frame
2 Lens Cover
3 Gasket
Remove lens cover frame by grasp-
ing the outside corners and pulling
the frame away from the helmet.
Remove lens cover and gasket from
the six-prong lens frame. Replace
lens cover and reinstall gasket and
lens in frame. Reinstall frame in hel-
met.
 Be sure the flat side of lens gas-
ket faces the six-prong lens
frame.
 Be sure all six prongs of lens
frame are securely fastened in
slots in helmet.
1
804 794
1
2
3
Be sure flat side of gasket
faces lens frame.

Miller Digital Elite Specifications

General

Arc Sensors	4
Shade Range	5-13
Type	Auto-Darkening Welding Helmet
Welding Processes	MIG, TIG, Stick, Flux-Cored
Power Supply	Solar and Battery
Weight	13.4 oz
