OM-256 476 Page 17
5-4. Replacing Inside Lens Cover − Digital Performance Series Helmets
! Never use the auto-darkening
lens without the inside and out-
side lens covers properly
installed. Welding spatter will
damage the auto-darkening
lens and void the warranty.

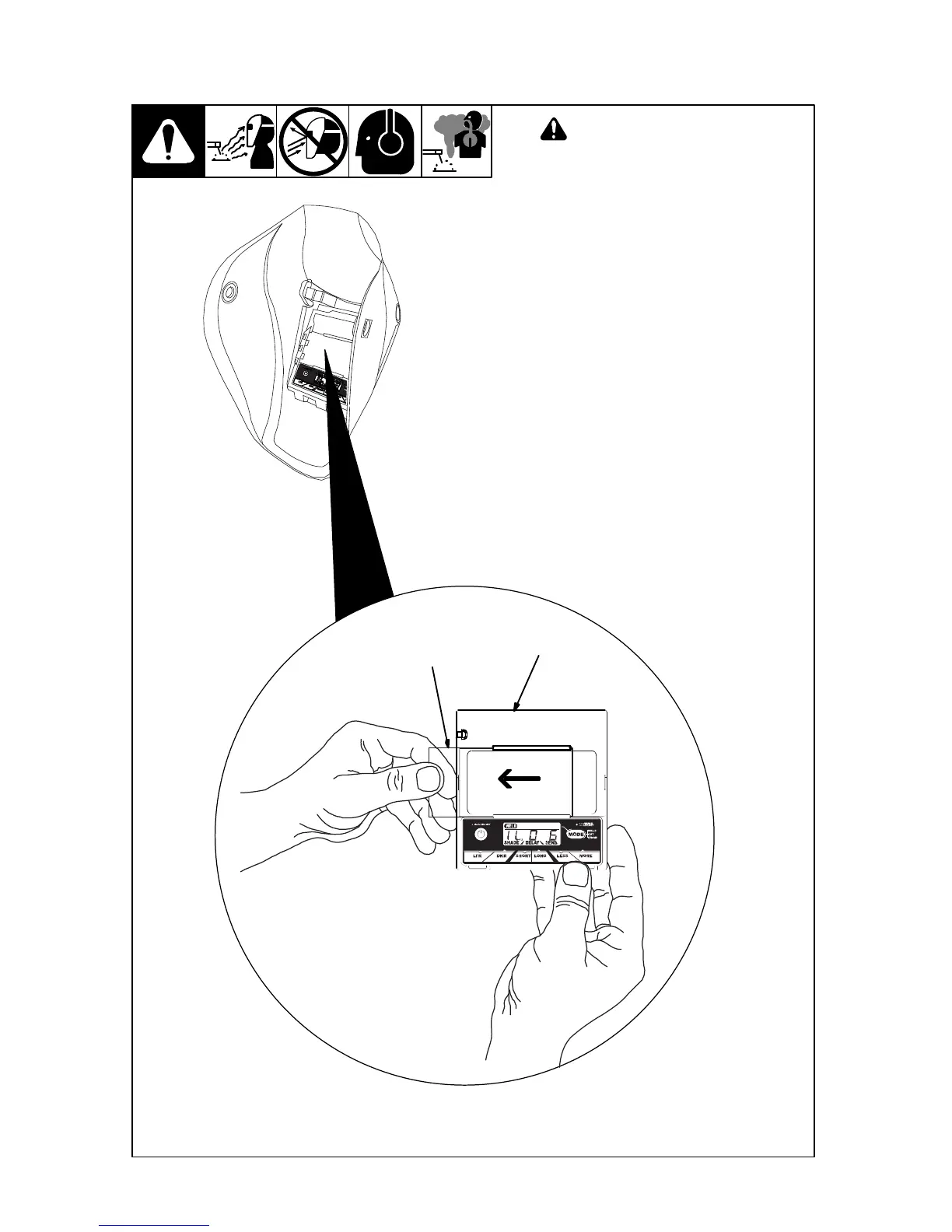

1 Lens Assembly
2 inside Lens Cover
Remove the lens cover holder (see
Section 5-3). Remove lens assembly.
Remove the inside lens cover by pry-
ing the cover up at either thumbnail
opening at each side of the cover.
Slide cover it out of either side of
frame. Replace lens cover and rein-
stall the assembly in the helmet by re-
versing the above procedure.
Be sure the cover lens is seated
properly (flat) to prevent fogging.
