OM-256 476 Page 16

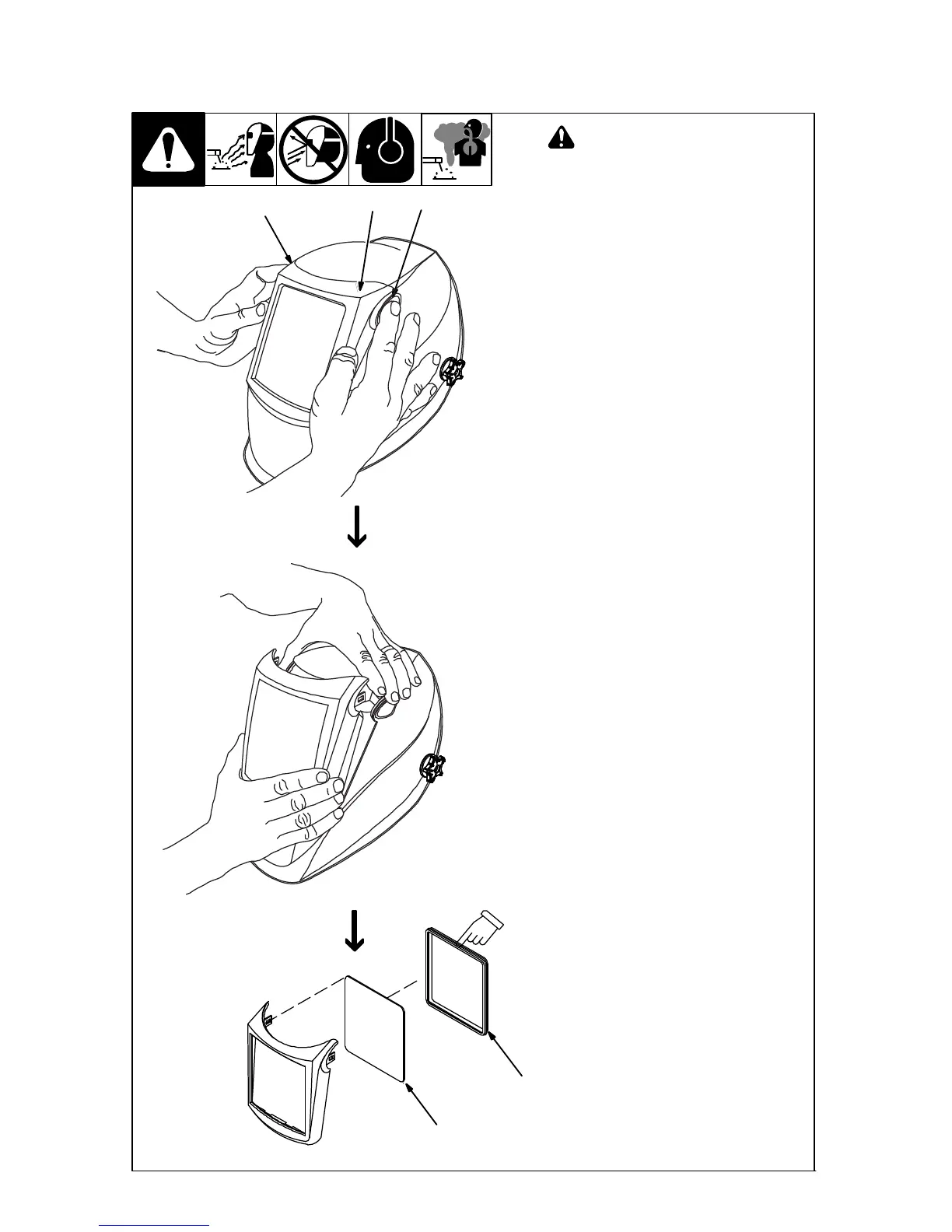

5-3. Replacing Outside Lens Covers On Digital Elite And Performance
Quick-Release Helmets
! Never use the auto-darkening
lens without the inside and
outside lens covers properly
installed. Welding spatter will
damage the auto-darkening
lens and void the warranty.
1 Front Lens Holder
2 Release Points
3 Lens Cover
4 Gasket
Remove front lens holder by press-
ing release points and pulling the
holder away from the helmet.
Remove lens cover and gasket from
the holder. Replace lens cover and
reinstall gasket and lens in holder.
Reinstall holder in helmet.
Be sure the flat side of lens
cover gasket faces the lens cov-
er holder.
1
2
Be sure flat side of gasket
faces lens cover holder.
2
4
3
To Next Page
