OM-225 216 Page 11

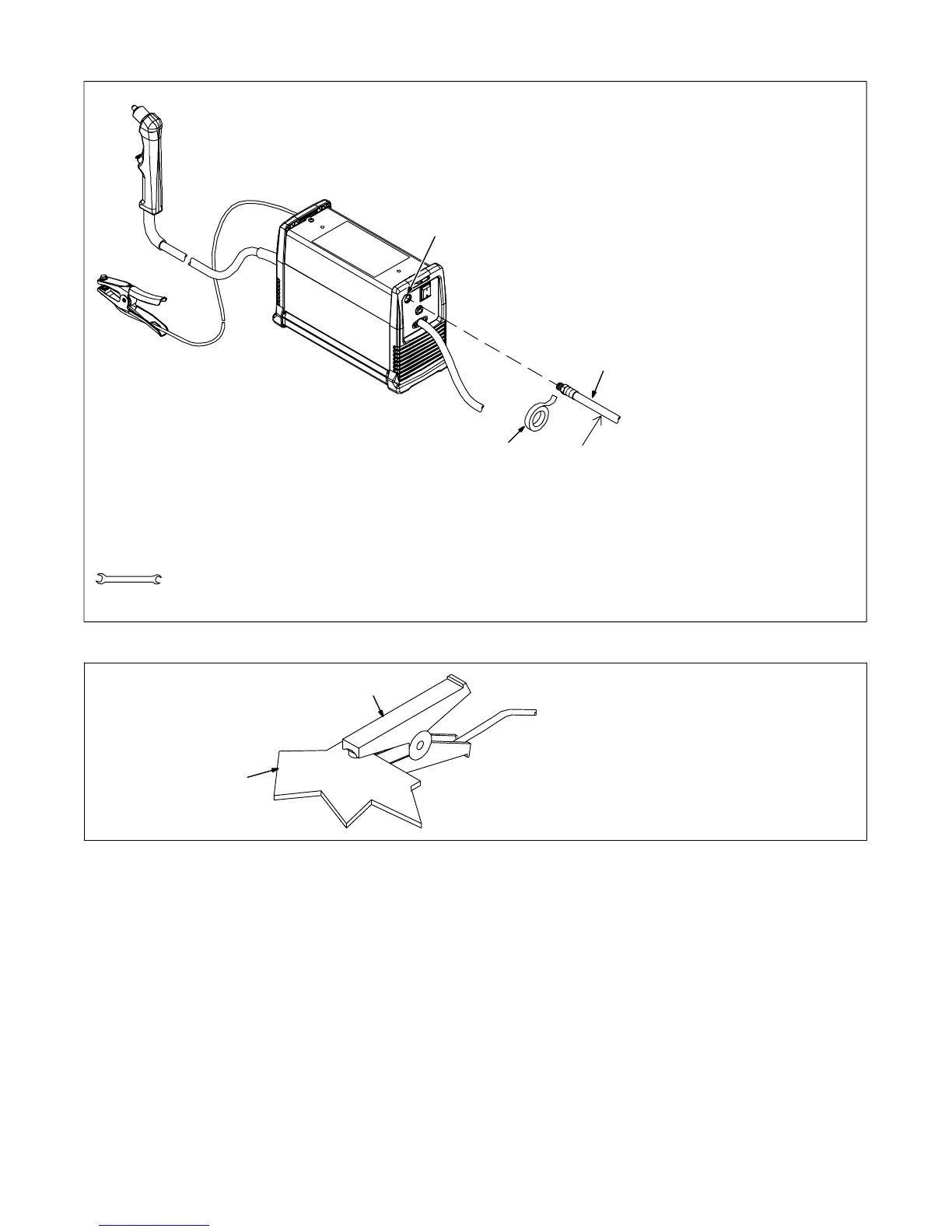

4-6. Connecting Gas/Air Supply
804 505-A
. Use only clean, dry air with 90
to 110 psi (620 to 758 kPa)
pressure.
1 Gas/Air Inlet Opening
2 Hose
3 Teflon Tape
Obtain hose with 1/4 NPT right-
hand thread fitting. Wrap threads
with teflon tape (optional) or apply
pipe sealant, and install fitting in
opening. Route hose to gas/air
supply.
Tools Needed:
3
From Gas/Air
Supply
1
2
9/16 in
4-7. Connecting Work Clamp
802 463-A
1 Work Clamp
2 Workpiece
Connect work clamp to a clean,
paint-free location on workpiece, as
close to cutting area as possible.
1
2
To Next Page
