6-3. Wrapper Removal
Ref. 804 505-A
Y Turn off power, and
disconnect input power plug
from receptacle before
working on unit.
Y Significant DC voltage can
remain on capacitors after unit
is Off. Wait until all front panel
LED’s are off before removing
wrapper.
Y Check DC bus voltage
according to Section 6-4 after
removing wrapper.

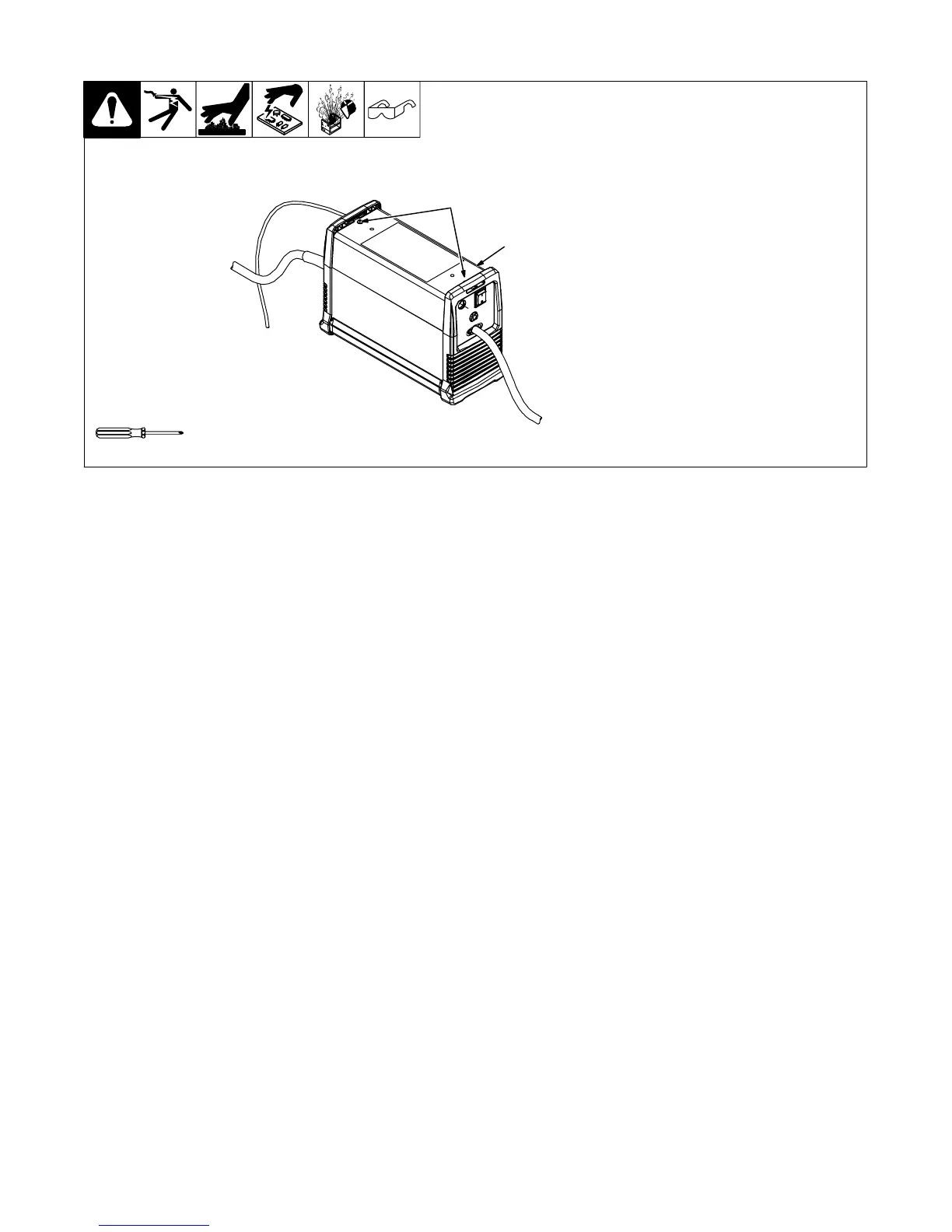

1 Wrapper
2 Torx Screws (Fine Thread)
Remove Torx screws and slide
wrapper off.
Torx 25
Tools Needed:
1
2
