Miller ICE-27T User Manual

OM-225 216 Page 30
1 183 427 Handle Assy, complete (1)
2 171 248 Push Button Switch (1)
3 228 405 Leads, 12 ft (1)
4 203 119 Main Body (1)
5 185 833 Switch Assembly
w/spring (1)
190 220 Spring, trigger assembly
169 231 Grease, silicone (1)
225 615 Torch, replacement 12 ft (1)
See Figure 8-3 for
additional consumable parts.
1
1
2 3
4
5
Item
No.
Part
No. Description

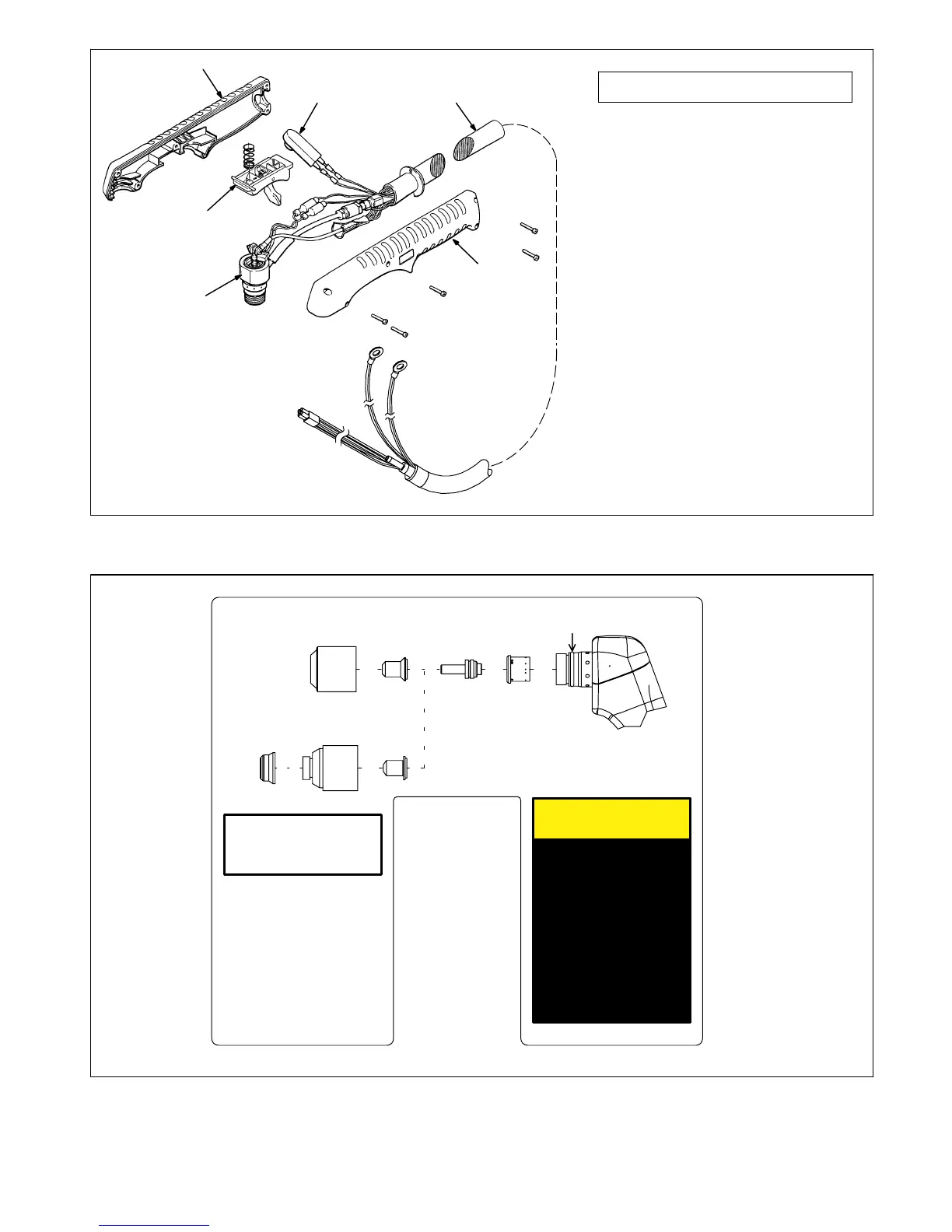

Figure 8-2. Torch, ICE-27T
228 449-A
Turnoffpowerbefore
checkingtorchparts.
Checkbeforeeach
useandhourly
duringoperation.
CAUTION
228449−A
ICE−27C/T
CONSUMABLES
FAILURETORE−
PLACEWORNTIP
ORELECTRODE
WILLDAMAGE
TORCHANDVOID
WARRANTY.
Drag
Shield
225616
RetainCup,
DragShield
225672
Tip,Drag
Shield
225671
Retaining
Cup
202808
Tip
176656
Electrode
176655
Swirl
Ring
202809
O−Ring
169232
Figure 8-3. Consumable Parts For ICE-27C/T
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
