Miller Insight Core 301072 User Manual

OM-260430 Page 13

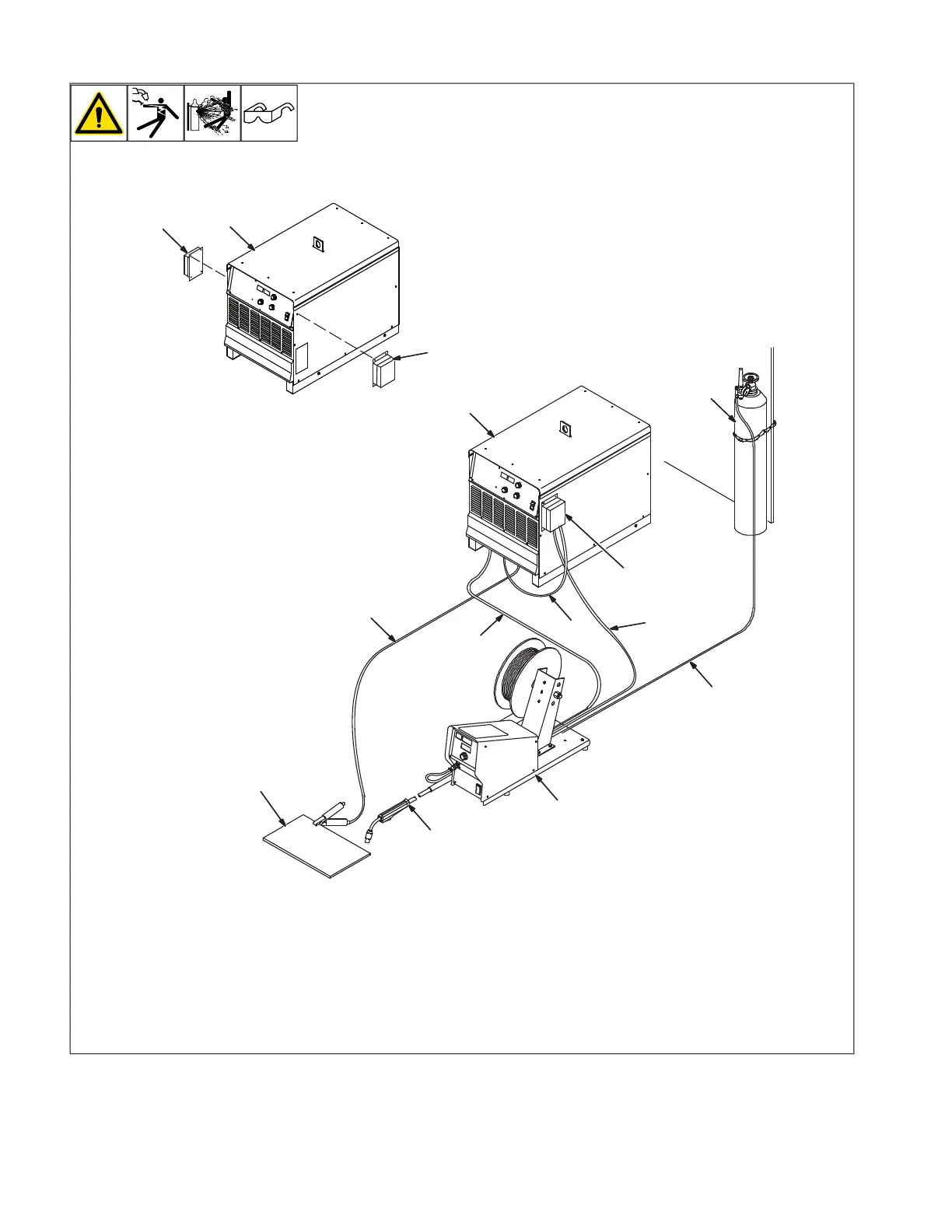

3-6. Mounting And Connecting Insight Core Module To Welding Power Source
Ref. 803502-A / 245855-A
1
1
2
2
2
3
4
5
6
7
8
9
10
11
1 Welding Power Source
2 14-Pin Insight Core Module
F
Module can be mounted on either side
of welding power source.
3 14-Pin Control Cable To Power Source
4 14-Pin Control Cable From Feeder
5 Positive (+) Weld Cable
6 Negative (-) Weld Cable
7 Gas Hose
8 Wire Feeder
9 Mig Gun
10 Work Piece
11 Gas Cylinder And Regulator (Customer
Supplied)
