Miller Insight Core 301072 User Manual

OM-260430 Page 14

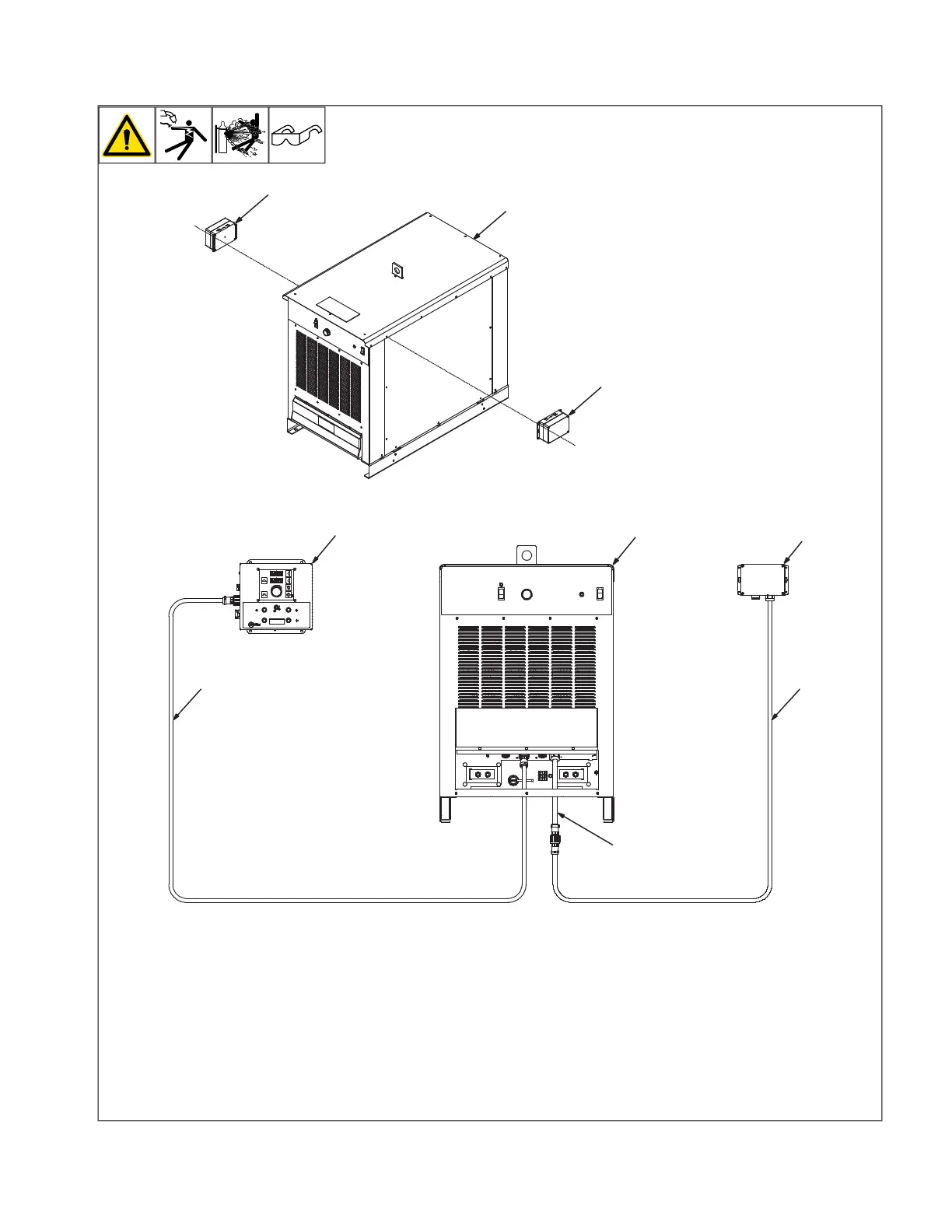

3-7. Mounting And Connecting Insight Core Module To SubArc Digital Series w/Low
Voltage Accessories
272591-A / 272594-A
1
1
2
4
5
6 3
2
2
1 Welding Power Source
2 14-Pin Insight Core Module
F
Module can be mounted on either side
of welding power source.
3 14-Pin Control Cable To Power Source
4 Insight Core to SubArc Digital Series
Adapter
F
SubArc Digital Series power sources
using a low voltage SubArc Interface
Digital/Analog require optional SubArc
Digital Series to Insight Core Adaptor
301295. Contact Miller Electric for as-
sistance in selecting the proper adap-
tor for your SubArc power source.
5 SubArc Interface Digital/Analog
6 SubArc Control Cable
