Miller Insight Core 301072 User Manual

OM-260430 Page 16

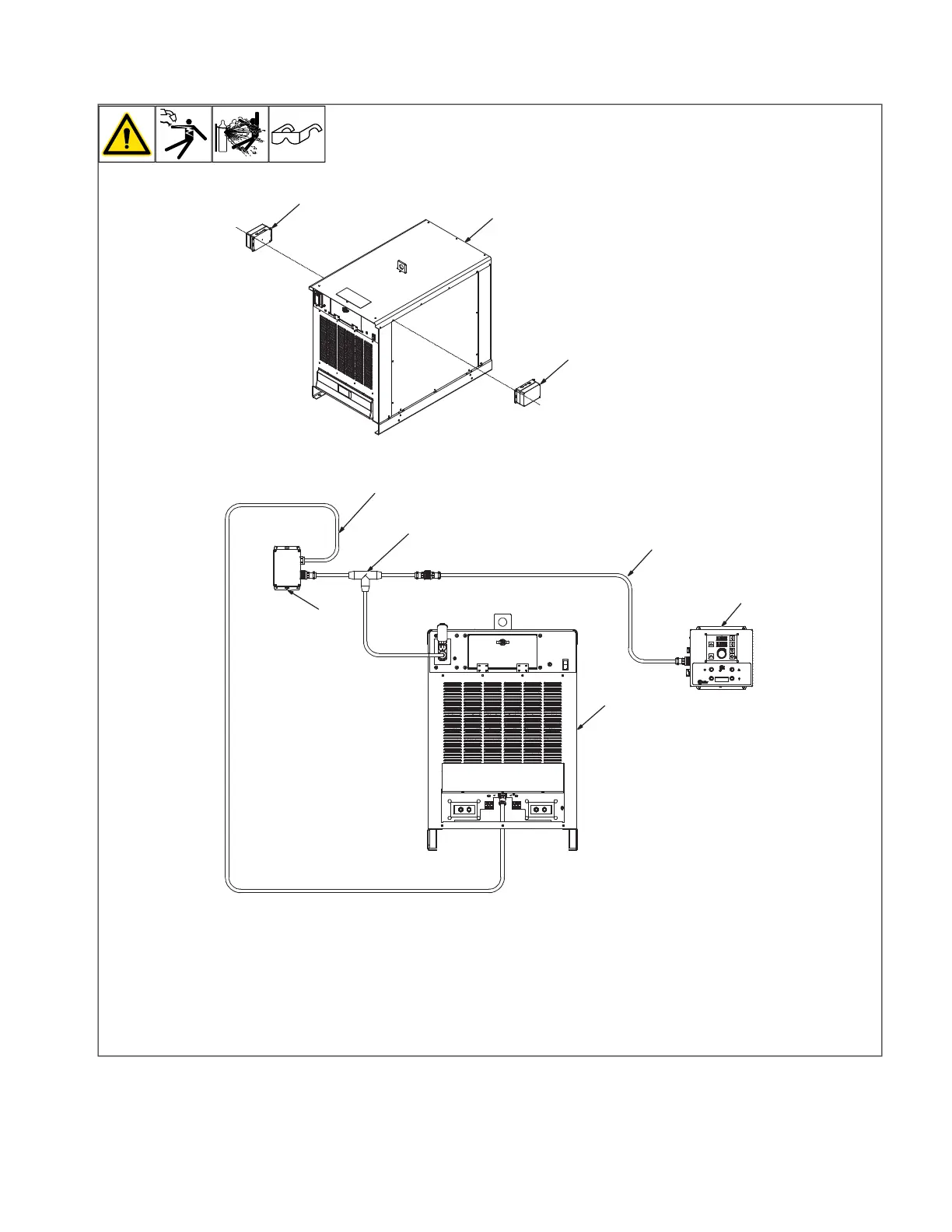

3-9. Mounting And Connecting Insight Core Module To SubArc AC/DC 1000/1250 And
Summit Arc 1000 Series Power Sources Using 115V Accessories
272593-A / 272589-A
1
1
2
3
4
5
6
2
2
1 Welding Power Source
2 14-Pin Insight Core Module
F
Module can be mounted on either side
of welding power source.
3 14-Pin Control Cable To Power Source
4 115VAC To 14-Pin Adapter Cord
F
SubArc power sources using 115V Ac-
cessories, including the HDC 1500
Series controller, require 115V to 14-
Pin Adapter Cord 301259. Contact
Miller Electric for assistance in
selecting the proper adaptor for your
SubArc power source.
5 HDC 1500 A/DX Controller
6 Control Cable
