4-8. Firmware Update Installation
F
For help installing or running the Configuration Utility, see Section 4-3 and Section 4-4. For help locating firmware files, see Section 4-5.
When firmware files are located and any additional configuration settings are made (if necessary), click Save in the Configuration window. You
will be prompted to insert a USB drive. After doing so, click Save. When finished, your USB drive contains a file named boot.cfg and a folder/di-
rectory named Firmware that contains the firmware file(s) you have selected. The Insight Core device requires these files/folder to be located on
your USB drive in order to upgrade the firmware.

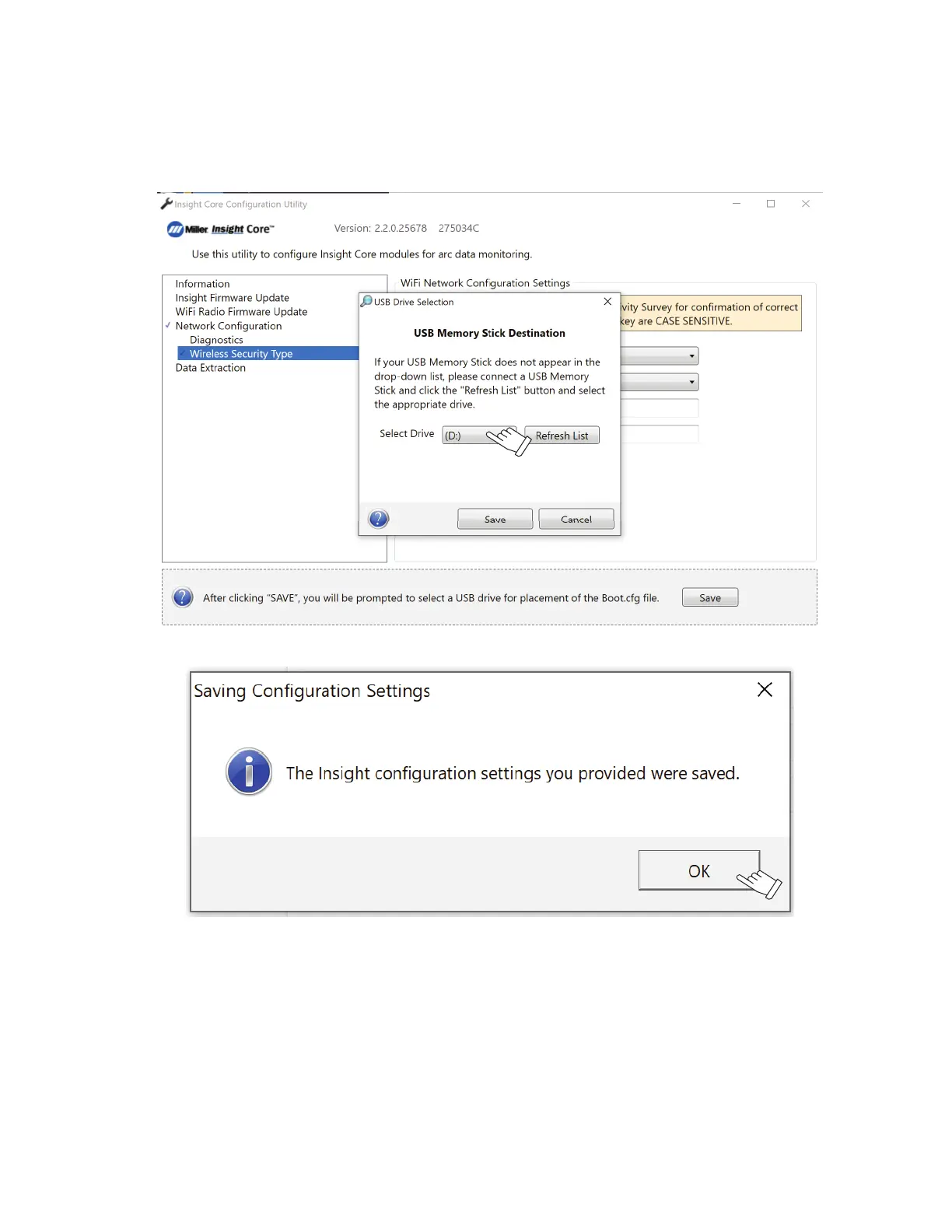

Figure 4-25. Selecting USB Drive Letter
Figure 4-26. Approving Insight Configuration Settings
After clicking OK, the application will close, and you are ready to install the firmware upgrade on your Insight Core module.
F
Make sure Insight Ethernet jack is connected to a cable providing an Internet accessible network connection for wired connections, or that
the wireless network is available for wireless connections.
1. Turn the welding power source off.
2. Insert the USB drive into Insight USB receptacle.
3. Turn the welding power source on.
F
The USB LED will flash, indicating the transfer of your settings. When flashing stops, both the Internet and Network LED lights turn on solid
green to indicate successful connection to your network and Internet. Firmware update is complete.
F
The device is now reading for registration. To continue with registration, proceed to next Section.
