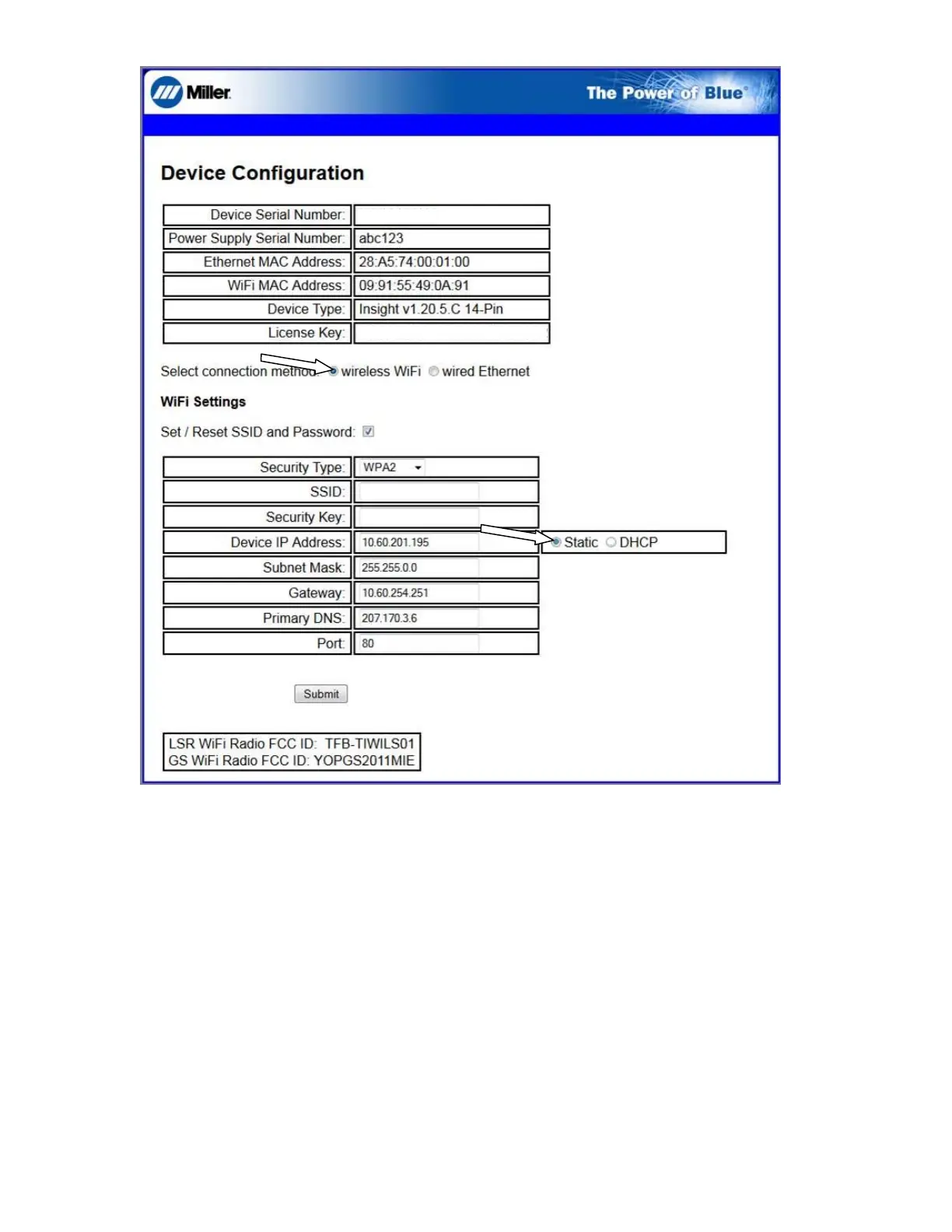

Figure 4-27. Insight Server Page
a. In the WiFi Settings section, select Static for Device IP Address.
b. Insert the device IP static address, subnet mask, gateway, DNS information, port number, security type, SSID, and security key provided
by your IT Department (see Figure Figure 4-27).
c. When finished, click Submit to save your settings for this device.
7. Unplug the Ethernet (CAT5 or CAT6) patch cord from your PC.
8. Turn the welding power source off, and remove any USB stick if still inserted.
9. Wait 10 seconds.
10. Turn welding power source on. The yellow Network light should turn on first when it identifies your network. The green Internet light should turn on
when it sees open access to the Internet.
11. When both LED lights are illuminated solid, the physical installation for Static WiFi IP Address is complete.
. To continue with firmware installation, proceed to Section 4-13.
Figure 4-24. Insight Server Page
7. Unplug the Ethernet (CAT5 or CAT6) patch cord from your PC.
8. Turn the welding power source off, and remove any USB stick if still inserted.
9. Wait ten seconds.
10.Turn welding power source on. The yellow Network light should turn on first when it identifies your network. The green Internet light should
turn on when it sees open access to the Internet.
11. When both LEDs are illuminated solid, the physical installation for Static WiFi IP Address is complete.
F
To continue with firmware installation, proceed to Section 4-8.
