A complete Parts List is available at www.MillerWelds.com
OM-246193 Page 13

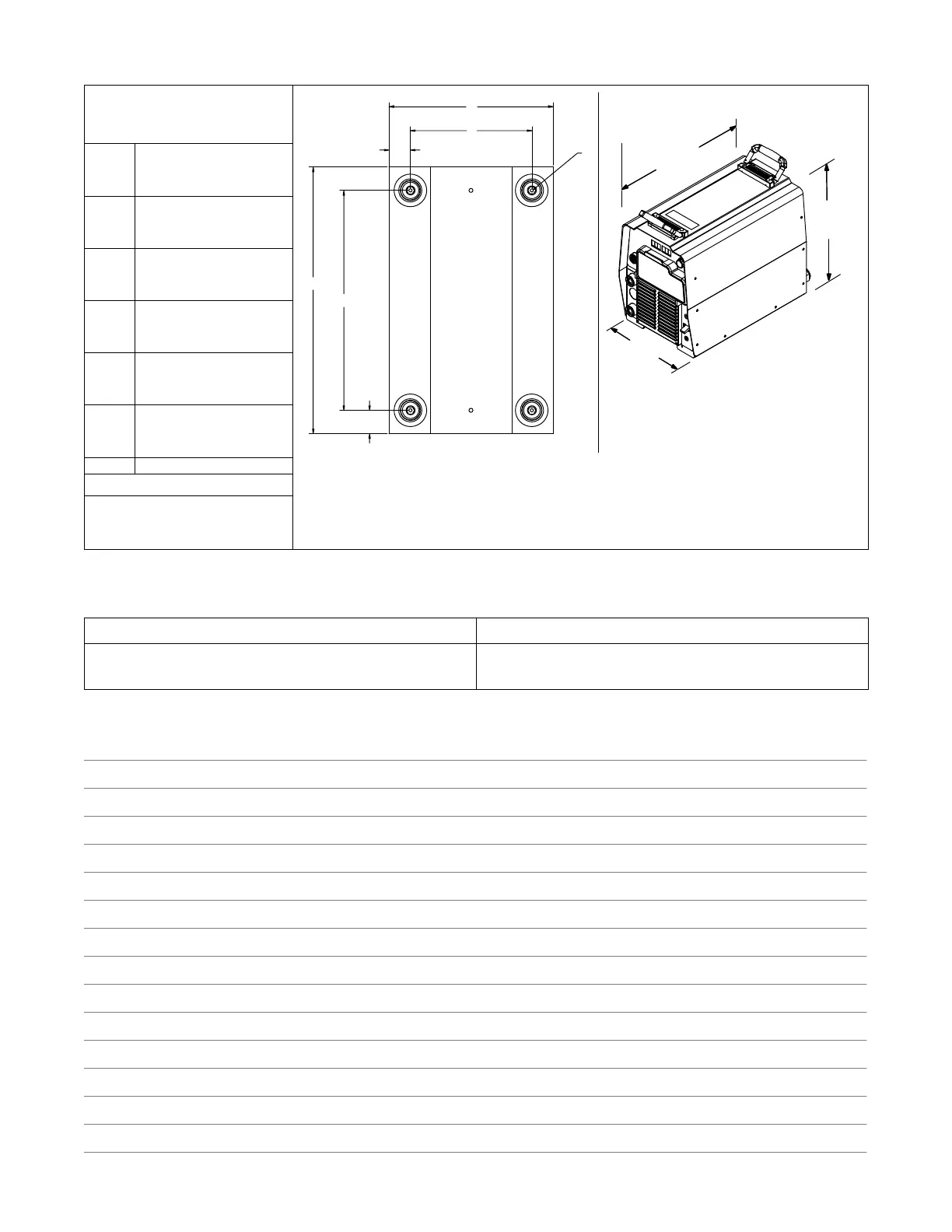

4-7. Dimensions And Weight
Hole Layout Dimensions
24 in.
(610
mm)
17 in.
(432 mm)
12-1/2 in.
(318 mm)
804 801-A
A
D
C
B
E
G
F
A 11-3/4 in. (298 mm)
B 1-11/16 in. (42 mm)
C 15-3/4 in. (400 mm)
D 19-3/32 in. (485 mm)
E 8-11/16 in. (221 mm)
F 1-17/32 in. (39 mm)
G 1/4-20 UNC -2B thread
Weight
80 lb (36.3 kg)
93.5 lb (42.4 kg)
w/optional 115 VAC
4-8. Environmental Specifications
A. Temperature Specifications
Operating Temperature Range* Storage/Transportation Temperature Range
14 to 104°F (−10 to 40°C)
*Output is derated at temperatures above 104°F (40°C).
−4 to 131°F (−20 to 55°C)
Temp1_016- 08
