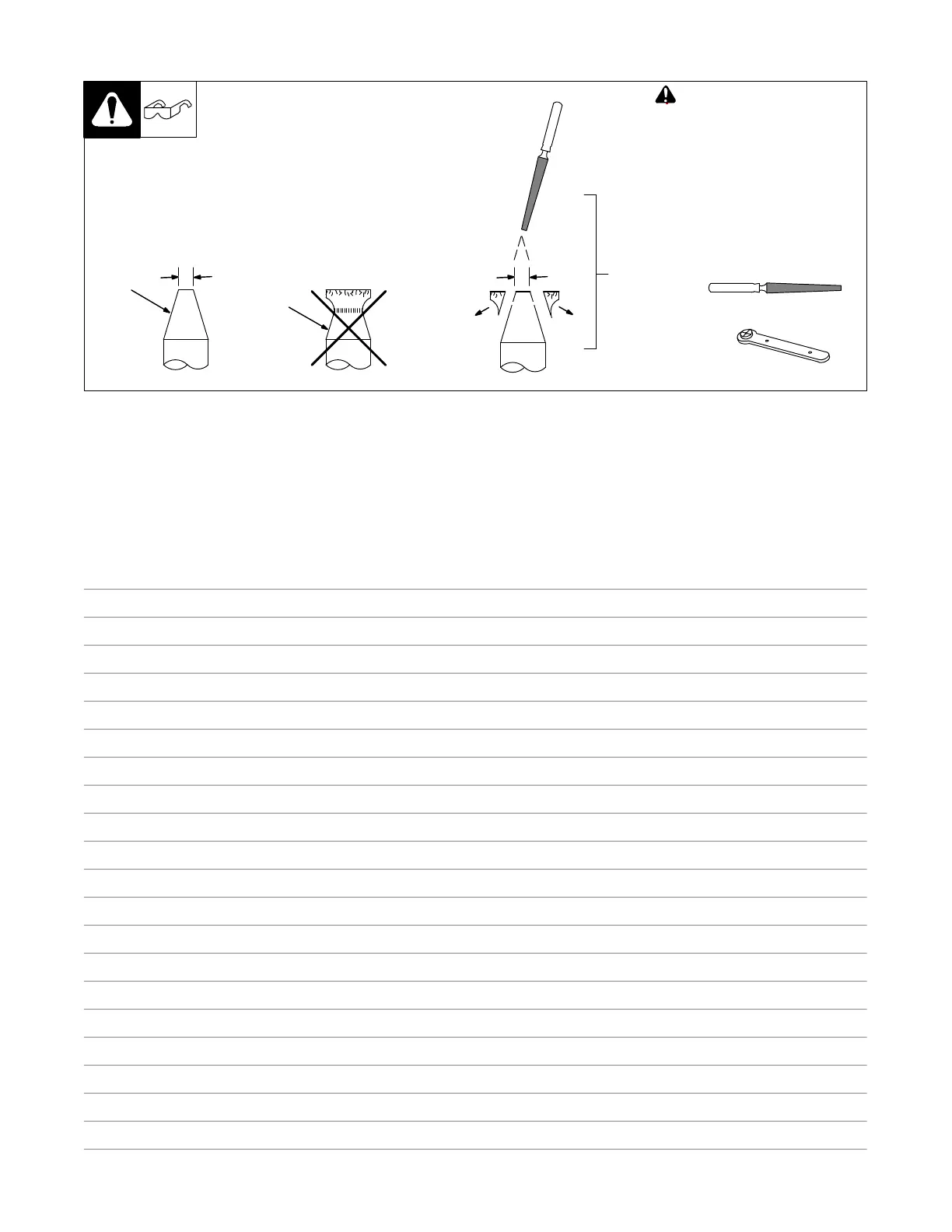

B. Dressing The Tips
! Turn off and unplug welder.
1 New Tip
2 Used Tip Requiring Dressing
3 Dressing Method − Keep top
diameter same as a new tip.
1
Tools Needed:
d = <1/8 in. (3.2 mm)
diameter
for 1.5 kVA models;
5/32 in. (4 mm)
for 2.5 kVA models
2
3d d
OR
