Miller MSW-41 - Main Assembly Parts

TM-716 Page 24 MSW And LMSW Series
SECTION 9 − PARTS LIST
145 048-E
. Hardware is common and
not available unless listed.
1
2
3
4
5
6
7
8
9
10
11
10
3
12
13
14
15
48
17
18
19
20
21
22
46
17
19
24
25
26
3
31
30
29
28
27
33
3435
36
37
32
16
49
46
45
38
39
40
47
42
41
43
44

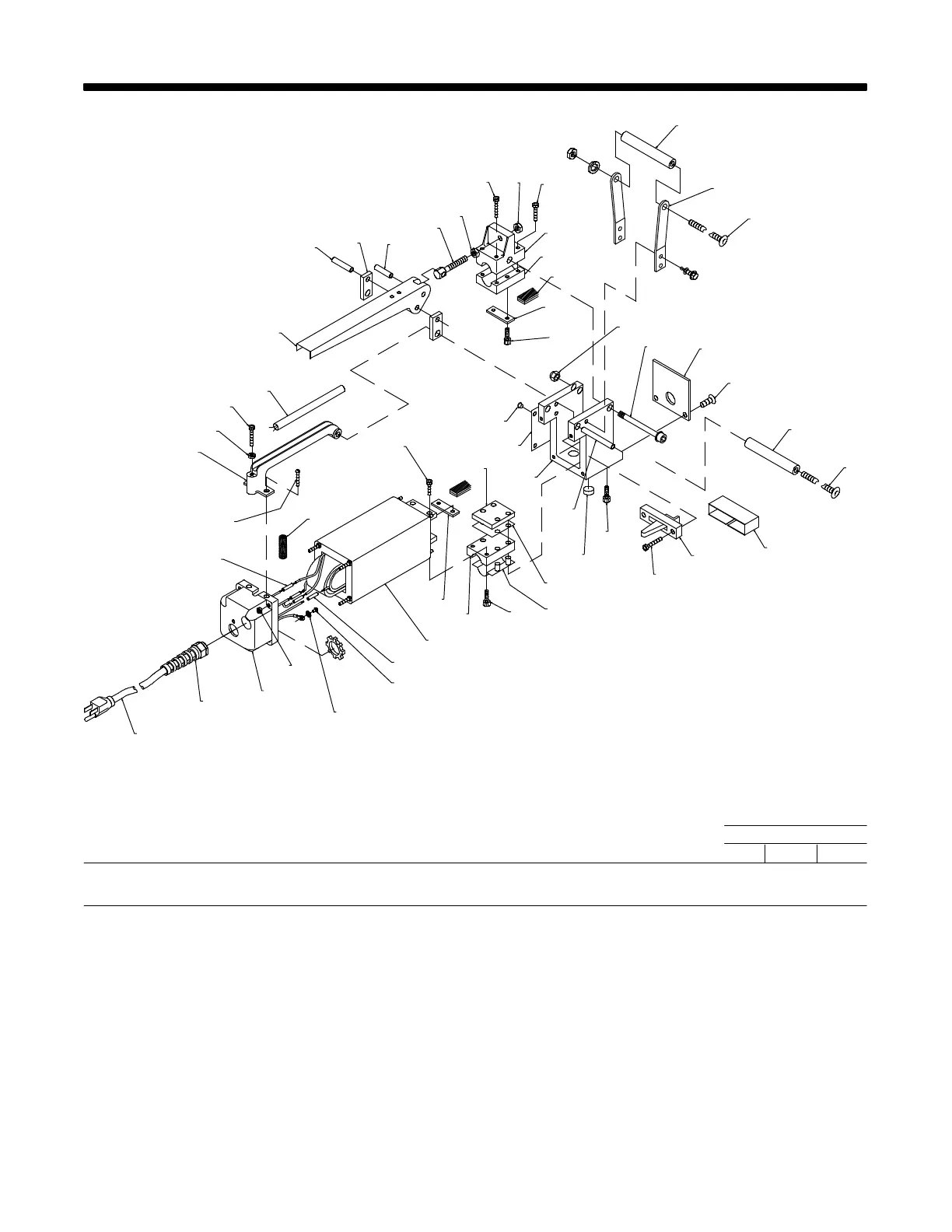

Figure 9-1. Main Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 9-1. Main Assembly
Quantity
Model
41,41T 42,42T 52,52
T
1 019 643 HANDLE, carrying 1 1... ............. .. ................................. ....
1 019 646 HANDLE, carrying 1... ............. .. ...............................................
2 601 865 NUT, stl hex full fnsh .250-20 1 1 1... ............. .. ........................ .... ....
3 602 009 SCREW, cap stl sch .250-20 x 1.250 7 7 7... ............. .. ................. .... ....
4 023 660 WIRING HARNESS, switch 1 1 1... ............. .. ......................... .... ....
5 023 199 LEVER, operating 1 1... ............. .. ................................. ....
5 082 090 LEVER, operating 1... ............. .. ...............................................
6 010 714 PIN, spring CS .312 x 1.750 1 1 1... ............. .. ........................ .... ....
7 010 712 LINK, tgl connecting 2 2 2... ............. .. ............................... .... ....
8 010 713 PIN, spring CS .312 x 1.250 1 1 1... ............. .. ........................ .... ....
9 010 715 BOLT, pressure adjustment 1 1 1... ............. .. ......................... .... ....
10 601 876 NUT, stl hex jam .437-20 2 2 2... ............. .. ........................... .... ....
11 010 668 SCREW, cap stl sch .250-20 x 1.500 2 2 3... ............. .. ................. .... ....
12 017 668 HOLDER, tong top 1 1 1... ............. .. ................................ .... ....
13 010 709 CLAMP, tong top 1 1 1... ............. .. .................................. .... ....
14 010 623 BRAID, tong set of four 1 1 1... ............. .. ............................ .... ....
