TM-716 Page 3MSW And LMSW Series
SECTION 2 − −INTRODUCTION
2-1. Specifications
Model
AC Input
Voltage
50/60 Hz
1-Phase
Work Capacity Com-
bined
Thickness
Uncoated Mild Steel
Rated
Output At
50% Duty
Cycle*
Welder Dimensions Weight
Height Width Length Net Ship
MSW-41T 110
1/8 in.**
(3.2 mm)
1.5 kVA
6 in.
(152 mm)
4-1/2 in.
(114 mm)
13 in.
(330 mm)
34 lb
(15.4 kg)
38 lb
(17.2 kg)
LMSW-52T 220
3/16 in.**
(4.7 mm)
2.5 kVA
6 in.
(152 mm)
4-1/2. in
(114 mm)
16 in.
(406 mm)
42 lb
(19.1 kg)
45 lb
(20.4 kg)
*Based on 10 second time period; means unit can weld for 5 seconds out of each 10 second time period.
** Not recommended for aluminum or copper alloys.
Model
MSW-41, 41T LMSW-52, 52T
Tong Length
6 in.
(152 mm)
12 in.
(305 mm)
18 in.
(457 mm)
6 in.
(152 mm)
12 in.
(305 mm)
18 in.
(457 mm)
Input Volts
110 220
Output Amps 10%
5500 4500 3600 6750 5800 4850
SECTION 3 − INSTALLATION

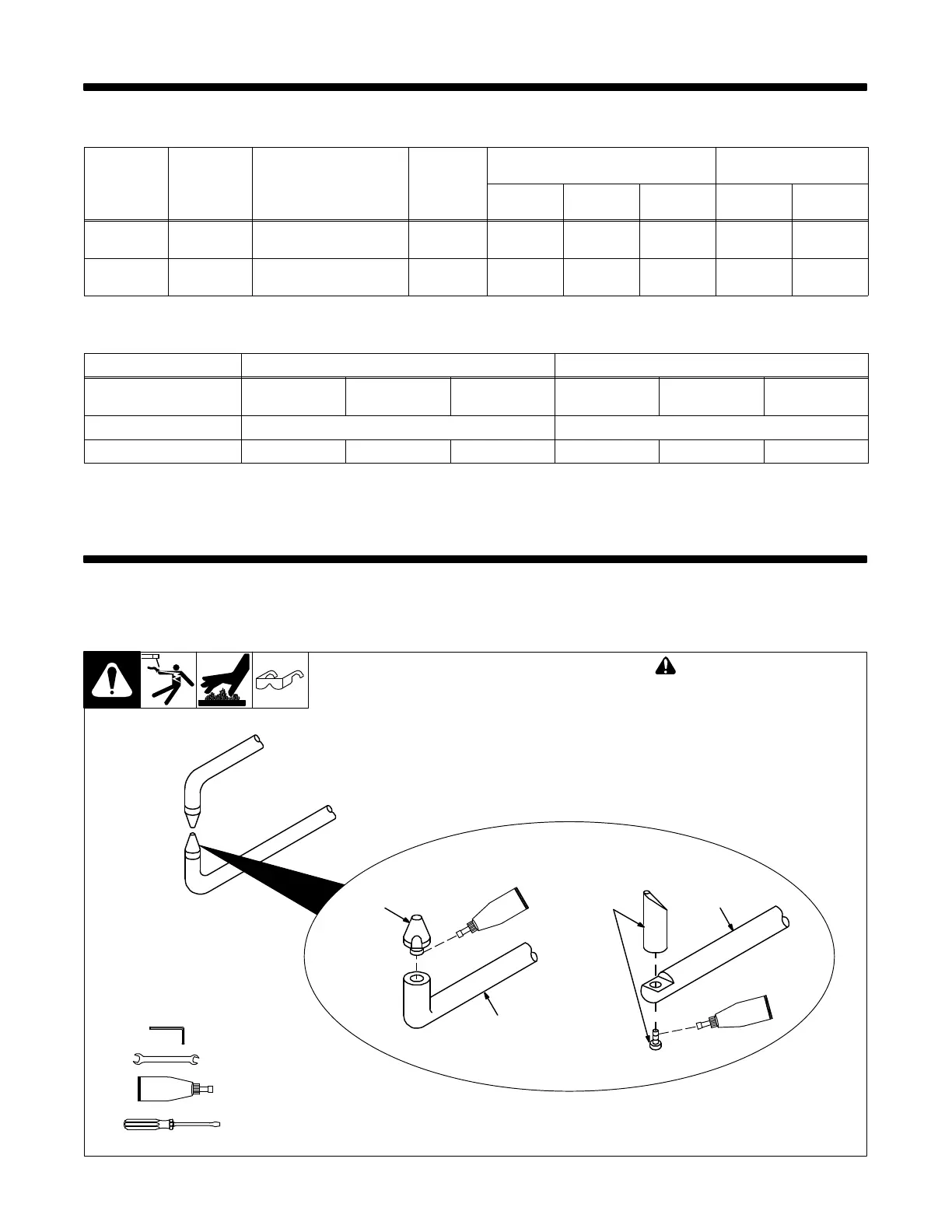

3-1. Installing Or Dressing Tips
Ref. 800 155-B / Ref. 800 154
! Turn off and unplug welder.
1 Threaded Tip
2 Tip With Hexhead Screw
3 Tong
Coat threads with supplied heat
sink compound and install tip onto
tong. Do not overtighten.
Tools Needed:
A. Installing Tips
3
1
2
3
3/16 in.
9/16 in.
OR
