TM-716 Page 20 MSW And LMSW Series
SECTION 8 − ELECTRICAL DIAGRAMS
. The circuits in this manual can be used for troubleshooting, but there might be minor circuit differences from your machine. Use circuit inside
machine case or contact distributor for more information.
The following is a list of all diagrams for models covered by this manual.
Model Serial Or Style Number
Circuit
Diagram
Wiring
Diagram
MSW-41, MSW-42, LMSW-52 5595 or S1A1 thru KD-52 478-A1
KD-53 and following 162 467-B
MSW-41T HD-6 and following 162 466-C
MSW-42T & LMSW-52T HD-6 thru JA-40 048 101-A
JA-41 and following 072 065-C
162 467-B

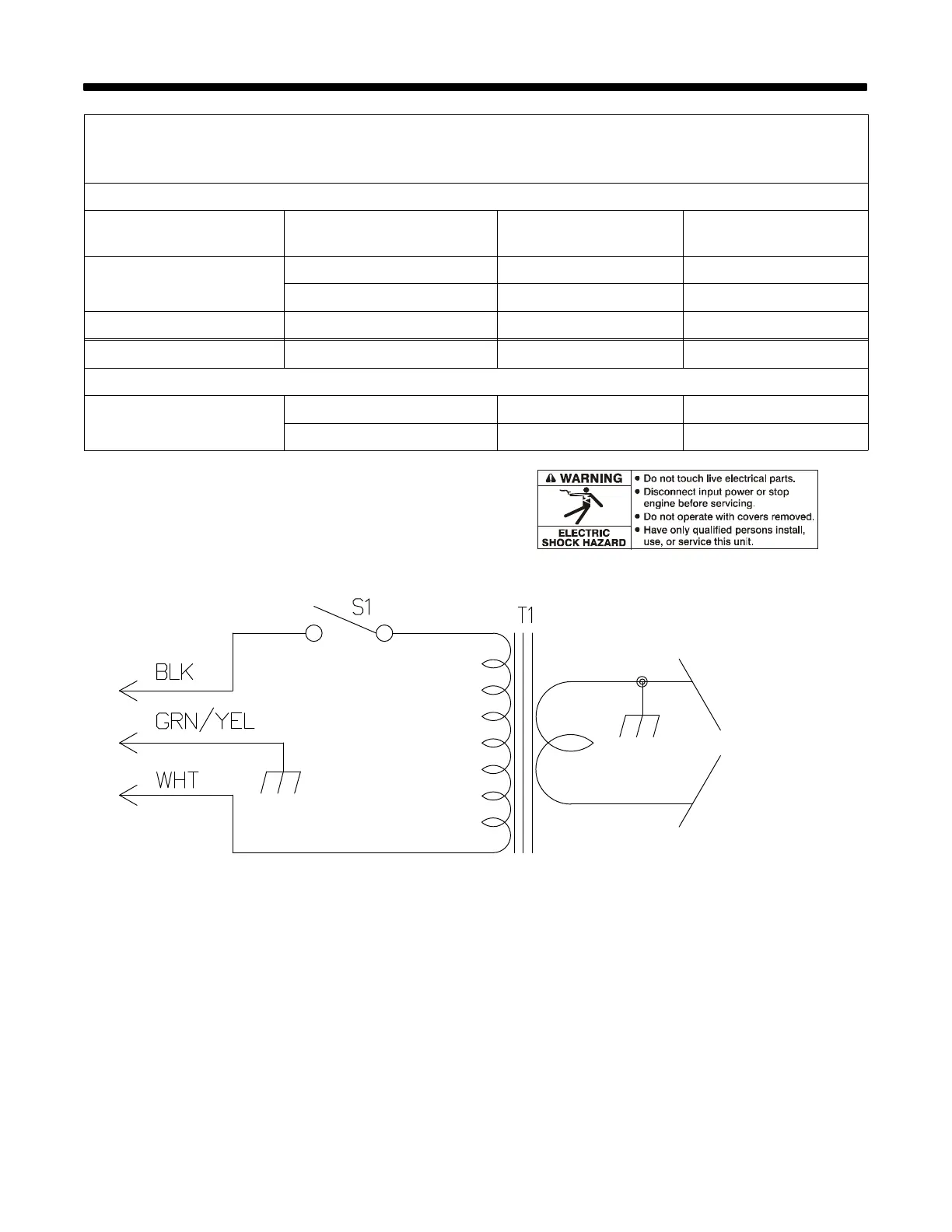

Figure 8-1. Circuit Diagram For MSW-41, MSW-42, And LMSW-52 Effective With Style No. KD-53
And Following
To Next Page
