Miller Spectrum 2050 User Manual

OM-2228 Page 18
4-10. Wiring Optional 240 Volt Plug (119 172) For Connection To Miller Bobcat Or
Trailblazer 251NT, 280NT, 300D NT, 301G, DC And 301D With A Minimum Of 8 kVA
Auxiliary Power (Continued)
Ref. 196 174-A / Ref. 192 444-A
. This plasma cutting unit is not recommended for
connection to a Hobart Champion 10,000.

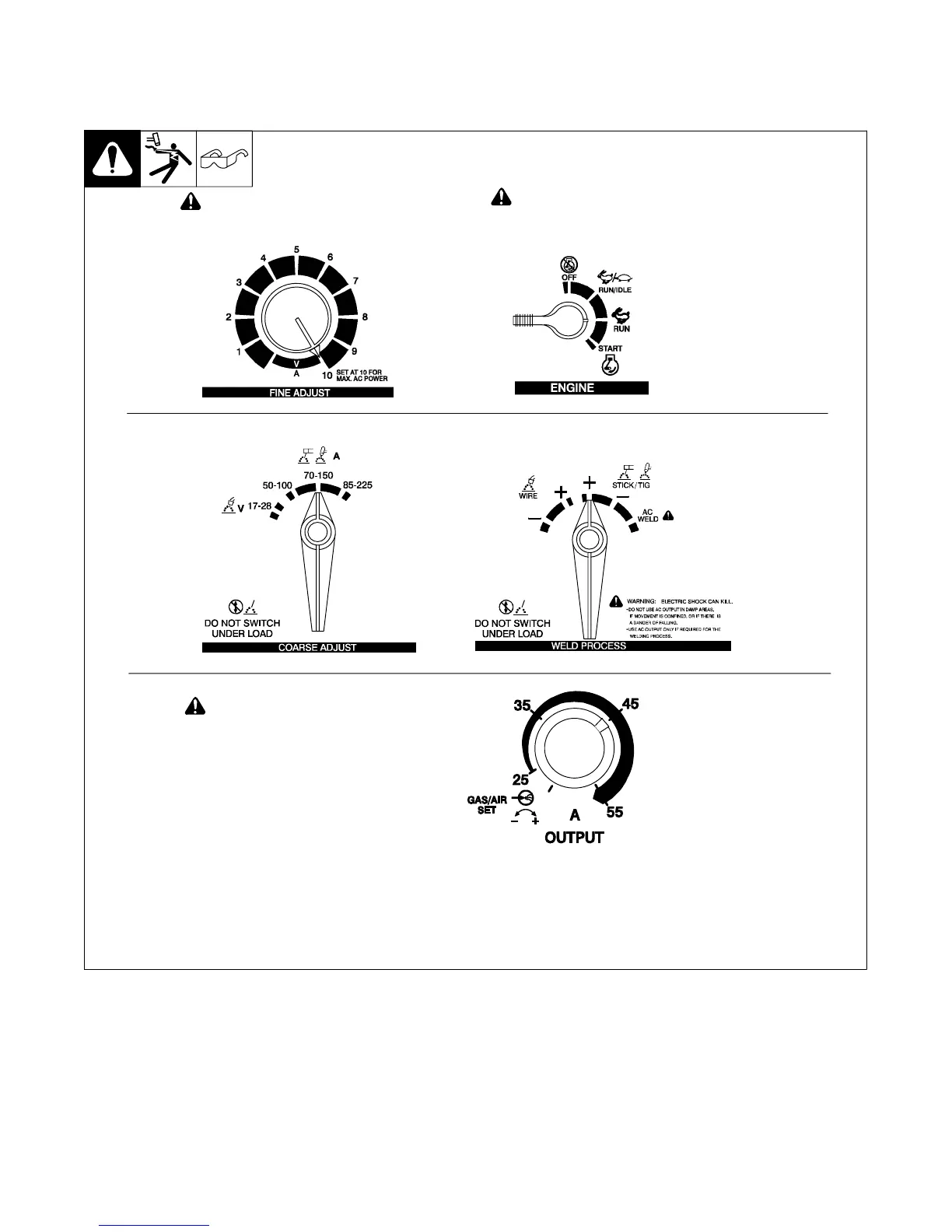

! DO NOT let generator go to idle speed;
otherwise, serious damage can result to
power source. Engine Control Switch must
be set at “RUN” position − not “RUN/IDLE”.
! Set generator Fine Adjustment Control
to 10 for maximum auxiliary power.
Coarse adjust control has no effect. Weld Process control has no effect.
! Set Output A amperage adjustment
control to 45 amperes or lower to
reduce load on welding generator
and to prevent arc outages. This
recommended amperage setting
applies when connecting the plasma
cutting unit to welding generators
that have an auxiliary power output
rating between 8-10 kVA.

Miller Spectrum 2050 Specifications

General

Input Voltage	208/230/460 V
Weight	70 lbs (31.8 kg)
Dimensions	20.5 in. x 12.5 in. x 13.5 in.
Duty Cycle	60% at 55 Amps
Input Phase	1-Phase
Input Hz	50/60 Hz
Input Power	208/230/460 V
Processes	Plasma Cutting
