Miller Spectrum 2050 User Manual

OM-2228 Page 20
4-10. Wiring Optional 240 Volt Plug (119 172) For Connection To Miller Bobcat Or
Trailblazer 251NT, 280NT, 300D NT, 301G, DC And 301D With A Minimum Of 8 kVA
Auxiliary Power (Continued)
Ref. 206 422 / Ref. 206 580 / Ref. 192 944-A
. This plasma cutting unit is not recommended for
connection to a Hobart Champion 10,000.
! DO NOT let generator go to idle speed;
otherwise, serious damage can result to
power source. Engine Control Switch must
be set at “RUN” position − not “RUN/IDLE”.

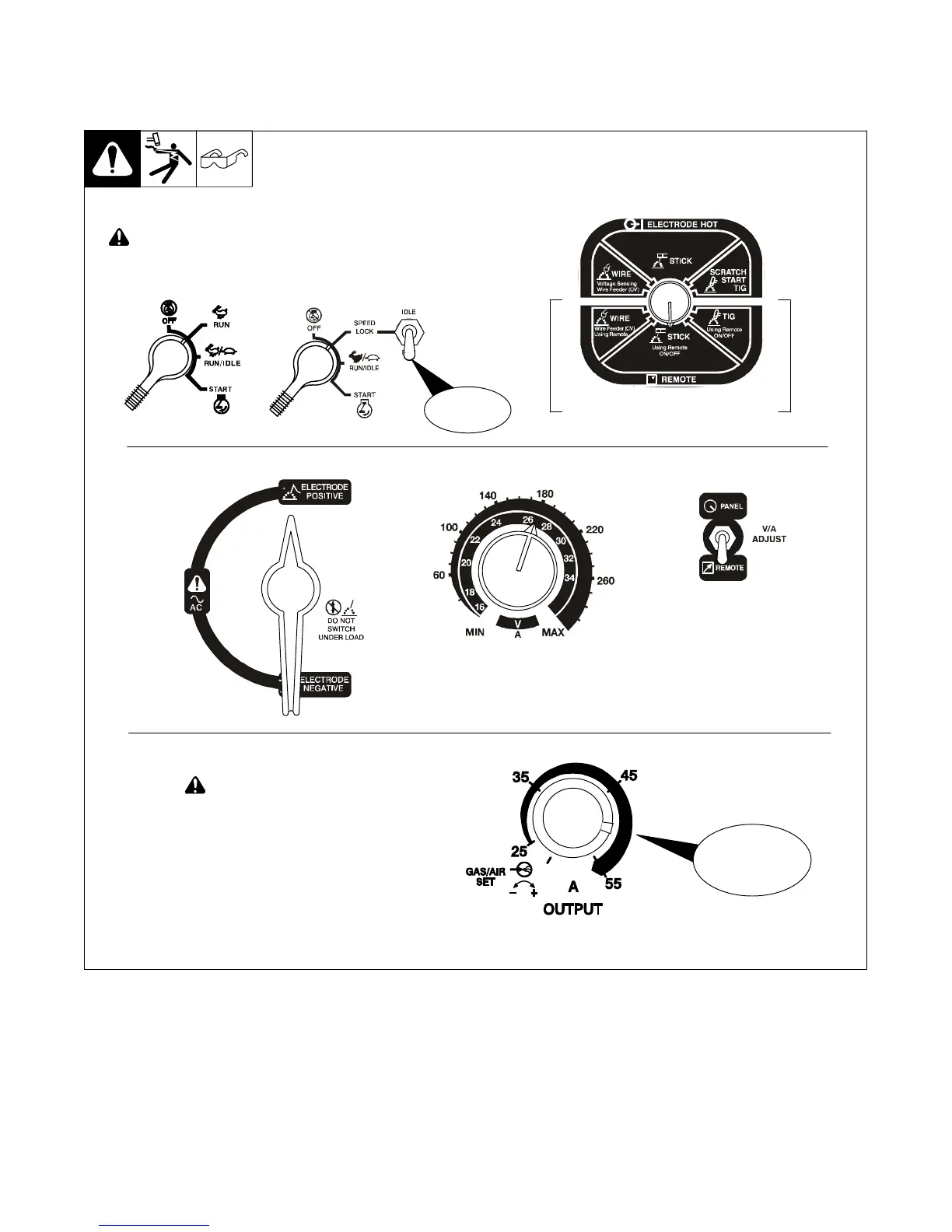

Y Set Process switch to any of the
3 bottom (remote) positions.
DC Polarity/AC switch has no effect.
A/V control has no effect.
! Set Output A amperage adjustment
control to 45 amperes or lower to
reduce load on welding generator
and to prevent arc outages. This
recommended amperage setting
applies when connecting the plasma
cutting unit to welding generators
that have an auxiliary power output
rating between 8-10 kVA.
Approximately
50 Position
Or
Run
Position
A/V switch has no effect.
Trailblazer 301G, DC And 301D

Miller Spectrum 2050 Specifications

General

Input Voltage	208/230/460 V
Weight	70 lbs (31.8 kg)
Dimensions	20.5 in. x 12.5 in. x 13.5 in.
Duty Cycle	60% at 55 Amps
Input Phase	1-Phase
Input Hz	50/60 Hz
Input Power	208/230/460 V
Processes	Plasma Cutting
