OM-236297 Page 27
Ref. 800 434-G
. Hardware is common and
not available unless listed.
1
2
5
3
4
6
7
8
9
10
17
11
12
1
2
3
4
13
14
15
8
16

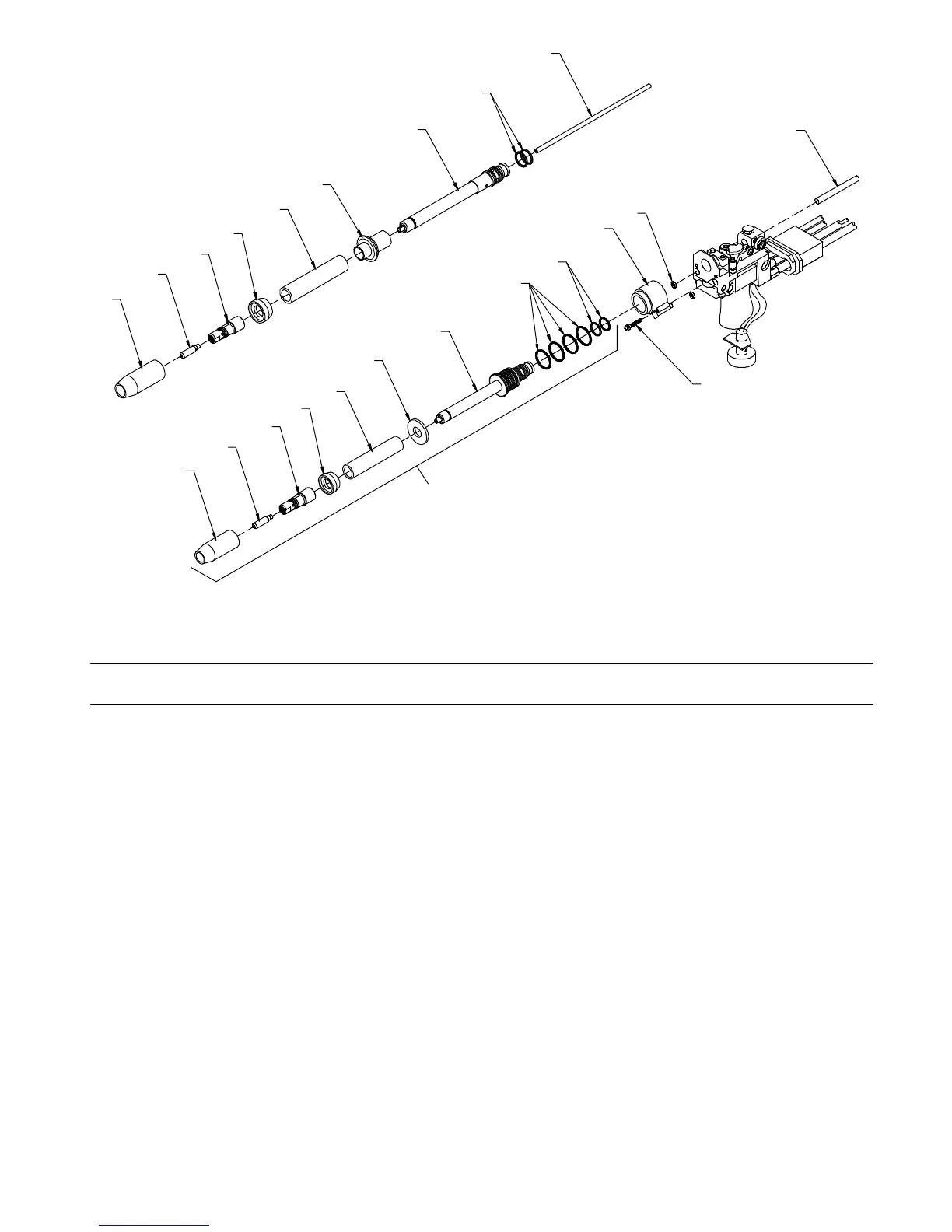

Figure 9-2. Head Tube Assembly Of Pistol-Grip Gun
Item
No.
Part
No. Quantity
Description
Figure 9-2. Head Tube Assembly Of Pistol-Grip Gun (Figure 9-1 Item 41)
1 199613 Nozzle, Brass 5/8 In Orifice Tapered 1.. .............. .. .................................
2 Tip, Fastip (See Section 10) 1.. ........................ ........................................
3 227749 Diffuser, .281/.312 Od Collar Fastip 1/8 Rec Edge 1.. .............. .. .....................
4 232284 Insulator, Nozzle Collared Diffuser 1.. .............. .. ..................................
5 219794 Jacket, Outer Insulating 1.. .............. .. ...........................................
6 219795 Insulator, Barrel Pistol 1.. .............. .. .............................................
7 219796 Head Tube, Air Pistol (Brazed) 1.. .............. .. ......................................
8 134800 O-ring, .614 Id X .070cs 2.. .............. .. ...........................................
9 203675 Manifold, Water (15W & 30W Models) (Includes) 1.. .............. .. ......................
10 175946 O-ring, .614 Id X .070cs 2.. ............. .... ..........................................
11 135128 Screw, Cap Stl Sch 6-32 X 1.000 (15, 30W Models) 2.. ............. .. ...................
12 231532 Head Tube Assy, Water Cooled Pistol HD (15, 30W Models) (Includes) 1.. ............. .. ..
13 220209 Jacket, Outer Insulating 1.. ............. .... ..........................................
14 220216 Washer, Flat .594idx1.375odx.125T Black Vulc Fbr 1.. ............. .... ..................
15 220210 Head Tube, Water Pistol (Brazed) 1.. ............. .... .................................
16 180966 O-ring, .926 Id X .070 Cs 70 Duro Quadring 4.. ............. .... ........................
17 212156 Liner, Phos Bronze .030-1/16 Wire X 7.313 1.. ............. .. ...........................
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
To Next Page
