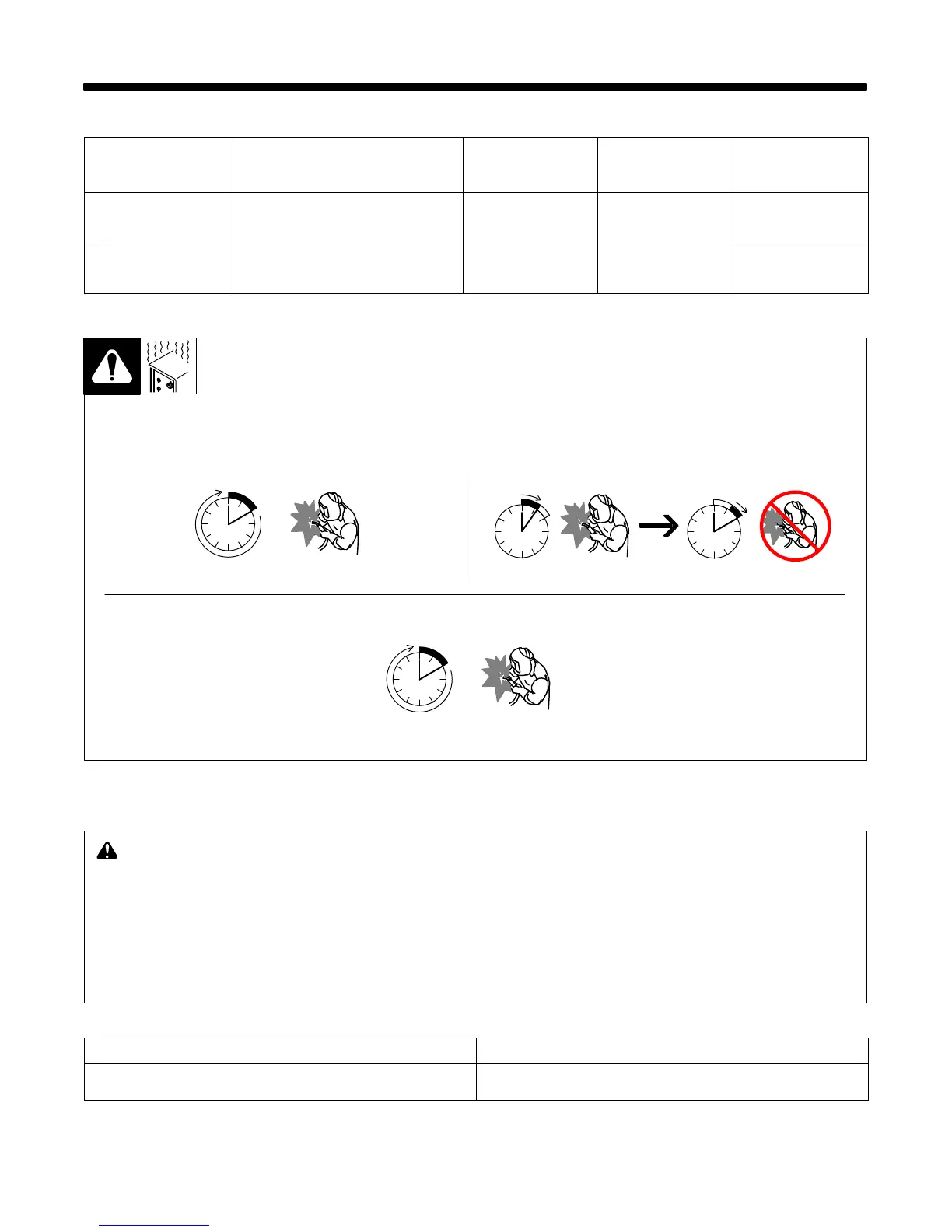

OM-236297 Page 6
SECTION 4 − SPECIFICATIONS
4-1. Gun Specifications
Model Welding Output Range Electrode
Wire Diameter
Capacity
Wire Feed
Speed Range
Net Weight
(Torch Only)
XR-A − 15 and 30 ft
(4.6 or 9.1 m) gun
(Air Cooled)
200 A at 100% Duty Cycle
250 A at 60% Duty Cycle
.030 To 1/16 in.
(0.8 To 1.6 mm)
aluminum wire
70 To 900 ipm
(1.8 To 23 mpm)
2.2 lb (1 kg)
(less cables)
XR-W − 15 and 30 ft
(4.6 or 9.1 m) gun
(Water Cooled)
400 A at 100% Duty Cycle .030 To 1/16 in.
(0.8 To 1.6 mm)
aluminum wire
70 To 900 ipm
(1.8 To 23 mpm)
2.4 lb (1.08 kg)
(less cables)
4-2. Duty Cycle And Overheating
Duty Cycle is percentage of 10 min-
utes that unit can weld at rated load
without overheating.
NOTICE − Exceeding duty cycle
can damage unit and void warranty.
sduty1 5/95
6 Minutes Welding 4 Minutes Resting
Continuous Welding
Air-Cooled Models
Water-Cooled Models
100% Duty Cycle At 400 Amperes Using Argon
Continuous Welding
100% Duty Cycle At 200 Amperes Using Argon 60% Duty Cycle At 250 Amperes Using Argon
4-3. Environmental Specifications
A. Information On Electromagnetic Fields (EMF)
! This equipment shall not be used by the general public as the EMF limits for the general public might be exceeded during welding.
This equipment is built in accordance with EN 60974−1 and is intended to be used only in an occupational environment (where the general public
access is prohibited or regulated in such a way as to be similar to occupational use) by an expert or an instructed person.
Wire feeders and ancillary equipment (such as torches, liquid cooling systems and arc striking and stabilizing devices) as part of the welding
circuit may not be a major contributor to the EMF. See the Owner’s Manuals for all components of the welding circuit for additional EMF exposure
information.
S The EMF assessment on this equipment was conducted at 0.5 meter.
S At a distance of 1 meter the EMF exposure values were less than 20% of the permissible values.
ce-emf 1 2010-10
B. Temperature Specifications
Operating Temperature Range Storage Temperature Range
14 to 104 °F (−10 to 40°C) −4 to 131 °F (−20 to 55°C)
Temp_2016- 07
