OM-236297 Page 13

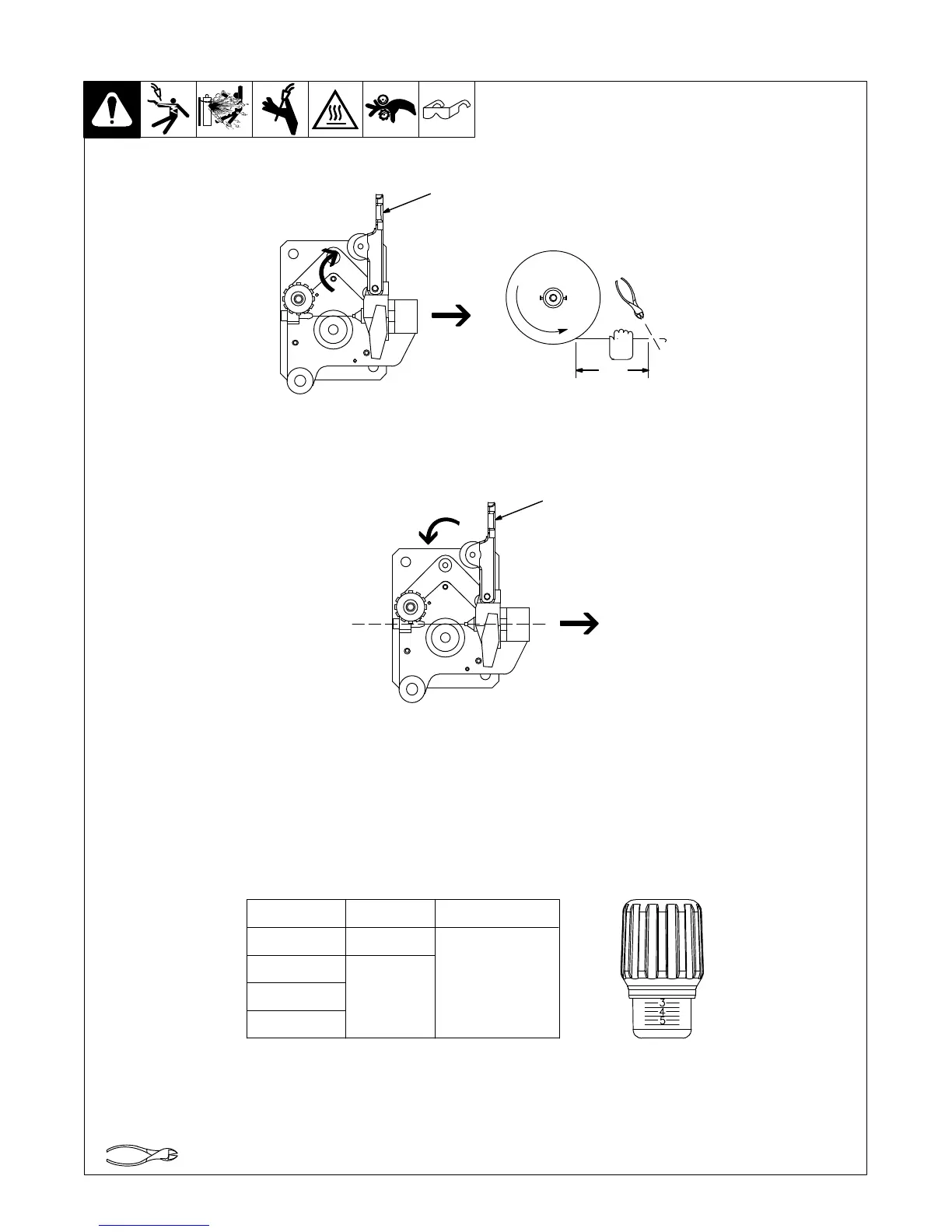

5-7. Adjusting Tension At Feeder
Ref. 805 350-A / 242 517-A
Tools Needed:
Pull and hold wire; cut off end.
6 in.
(150 mm)
1 Tension Arm
Open tension arm.
Thread wire thru inlet guide, along drive roll groove, and
into wire conduit. Close tension arm. Adjust tension as
follows:
. Hold wire tightly to keep
it from unraveling.
1
1
Wire Size Welding Gun Calibration
3−4
3−4
1−2
0.030 - 0.035 in.
0.040 in.
3/64 in.
1/16 in.
Tension Settings
Install proper size drive rolls.
