2-3 SCHEMATIC OF MAIN COMPONENTS

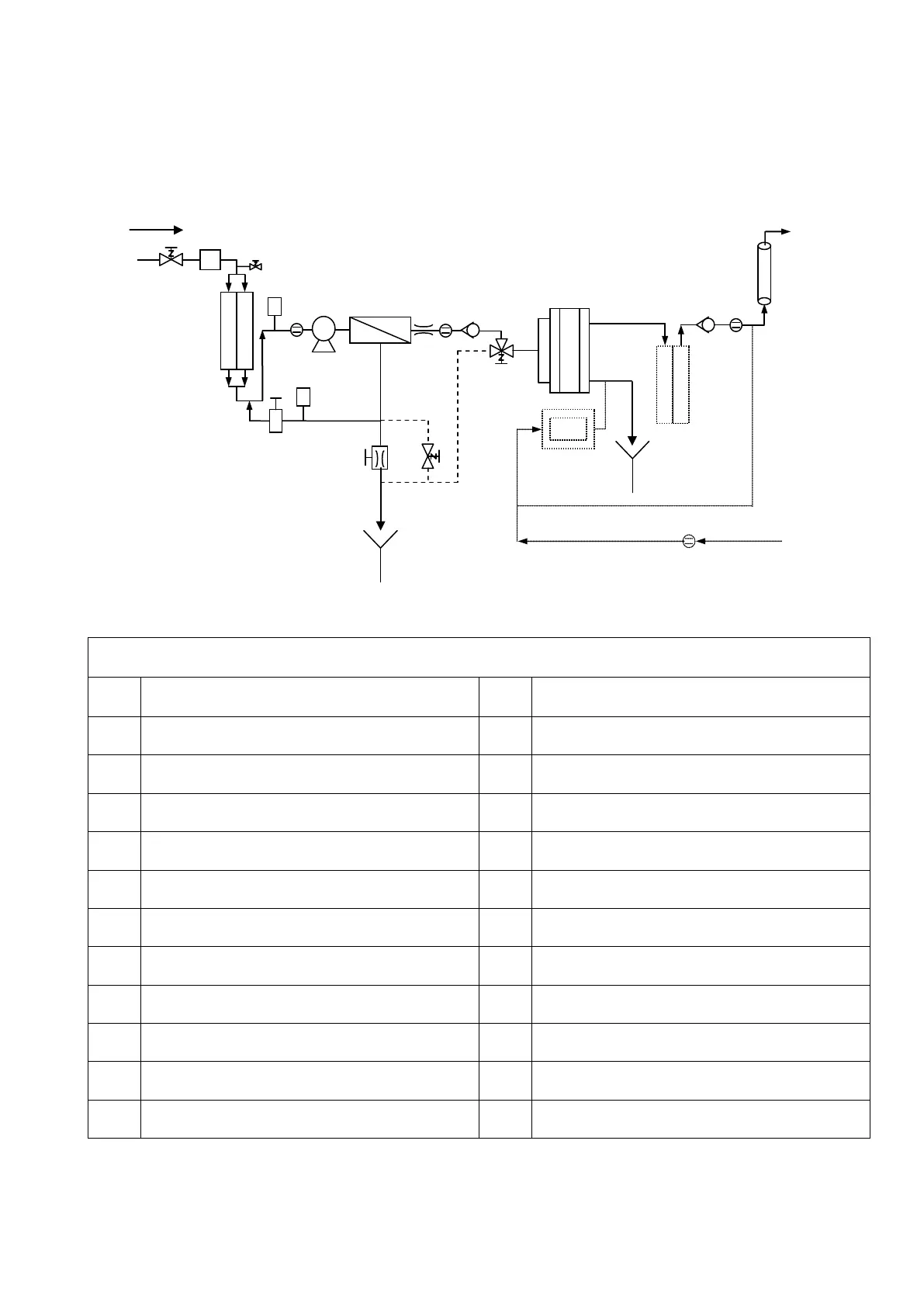

SCHEMATIC OF AN ELIX SYSTEM
The water flow through an Elix Water Purification System is shown here in a flow diagram. A description of each item is in the
next section.
GUIDE TO SCHEMATIC
Identification of lettered items in the flow schematic above
Item Description Item Description
A Inlet Solenoid Valve L RO Permeate Divert Solenoid Valve
B Flowmeter M Elix Module
C Purge Valve N QGard TL 1 Polishing Pack (Optional)
D Progard™ TL System Pretreatment Pack O Product Water Resistivity Sensor
E Feedwater Pressure Switch P UV Lamp
F Feedwater Conductivity Cell Q Loop Resistivity Sensor (Optional)
G RO Pump (Motor + Pumphead) R A10 TOC Monitor (Optional)
H RO Cartridge S Back Pressure Regulator
I Flow Controller T Pressure Sensor
J Permeate Conductivity Cell U RO Reject Control Device
K Permeate Check Valve V RO Reject Solenoid Valve
A
C
E
F
G
H
I
J
K
M
L
O
N
D
B
P
S
R
Q
T
U
V
