Millipore Labscale User Manual

Labscale Tangential Flow Filtration System User Guide 15
COVER
MILLEX VENT
FILTER
VENT PORT
FEED PRESSURE GAUGE
RETENTATE
PRESSURE
GAUGE
RESERVOIR
SHUT-OFF VALVE
TANK OUT PORT
FEED IN PORT
RET OUT PORT
PERM 2 OUT
PERM 1 OUT
RET IN PORT
RETENTATE TUBING
PERMEATE TUBIN
G
RETENTATE
BACK PRESSURE
VALVE
DIA RECIRC

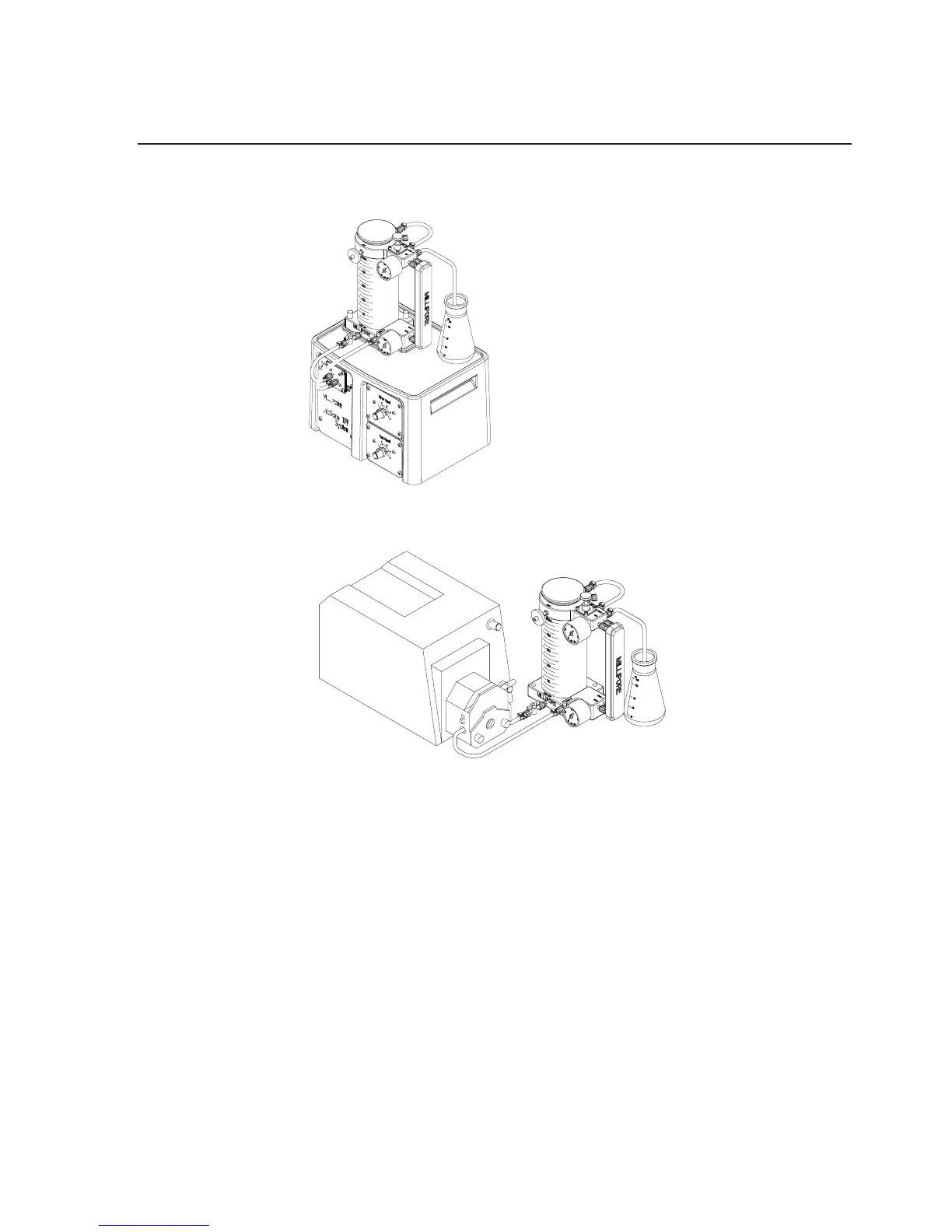

Figure 8: Labscale 500 mL Reservoir set up with Labscale TFF System.
COVER
MILLEX VENT
FILTER
VENT PORT
FEED PRESSURE GAUGE
RETENTATE
PRESSURE
GAUGE
RESERVOIR
SHUT-OFF VALVE
TANK OUT PORT
FEED IN PORT
RET OUT PORT
PERM 2 OUT
PERM 1 OUT
RET IN PORT
RETENTATE TUBING
PERMEATE TUBIN
G
RETENTATE
BACK PRESSURE
VALVE
DIA RECIRC
Figure 9: Labscale 500 mL Reservoir set up with user supplied peristaltic
pump.
Install the Sta-Pure (white) tubing on the pump outlet and feed in
port of the reservoir.
