Millipore Labscale - System Operation Procedures; Install Cleaning Tubing

Labscale Tangential Flow Filtration System User Guide 25
Install Cleaning Tubing
Install Cleaning Tubing

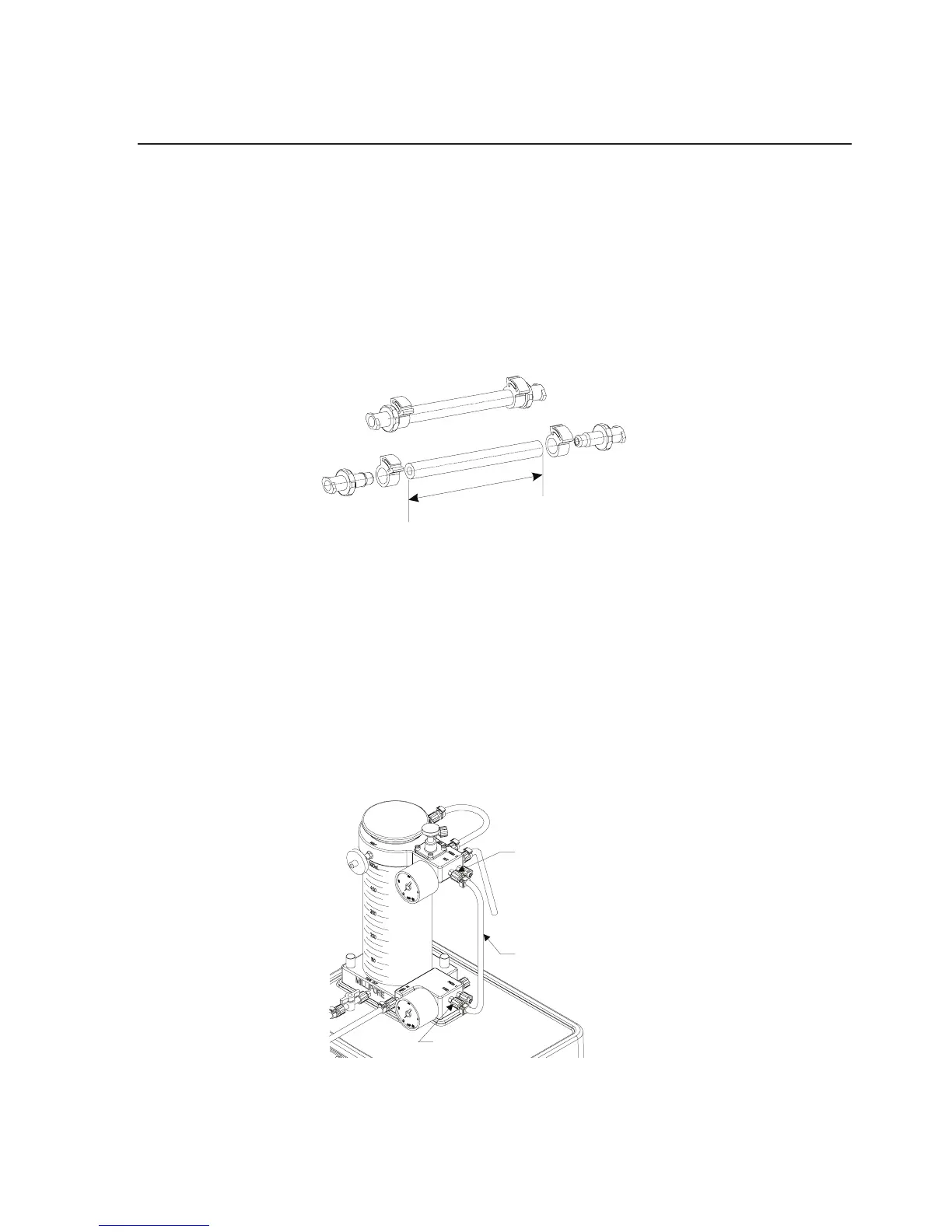

1. Cut Sta-Pure (white) tubing and install fittings and clamps as
shown in figure 23.
L = 25 cm (10 inches)
Fittings: 2 female
FEMALE
FEMALE
L
RETENTATE
BACK PRESSURE
VALVE
VENT PORT
WASTE COLLECTION
VESSEL
TANK OUTLET
VALVE
CLEANING TUBE
DEVICE
RETENTATE PORT
DEVICE FEED PORT
Figure 23: Setup of cleaning tubing, ttings and clamps.
Remove the plug from the Device Feed port (FEED) and insert
one of the female luer ends of the cleaning tubing over the FEED
port. Turn the lock nut until snug.
2. Remove the plug from the Device Retentate port (RET) and
insert the other female luer end of the cleaning Sta-Pure
(white) tubing over the (RET) port. Turn the lock nut until snug.
L = 25 cm (10 inches)
Fittings: 2 female
FEMALE
FEMALE
L
RETENTATE
BACK PRESSURE
VALVE
VENT PORT
WASTE COLLECTION
VESSEL
TANK OUTLET
VALVE
CLEANING TUBE
DEVICE
RETENTATE PORT
DEVICE FEED PORT
Figure 24: Install cleaning tubing.
