2. Reinstall the pump panel on the enclosure

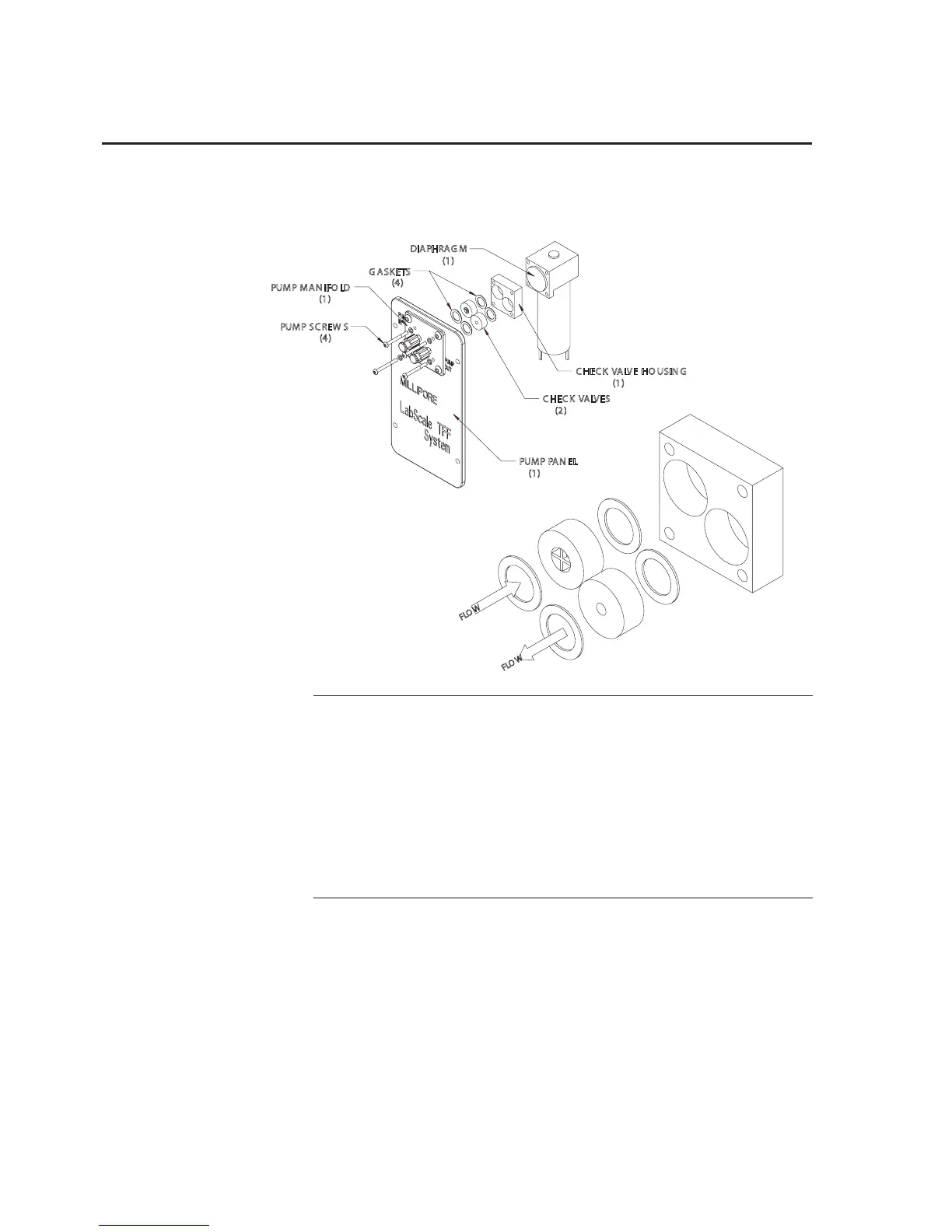

C HEC K VALVE HO USIN G
(1)
PUMP PA N EL
(1)
PUMP M AN IFO LD
(1)
DIAPHRAG M
(1)
C HEC K VALVES
(2)
G ASKETS
(4)
PUMP SC REW S
(4)
F
L
O
W
F
L
O
W
IMPORTANT:
Check Valve orientation is as shown. Improper orientation
of the check valves will damge the check valves and
cause the pump not to function. The check valves are
keyed to assist with proper orientation.
DO NOT FORCE CHECK VALVES INTO
HOUSING!
