Page 12 MiniRanger Plus 7ML19981CJ01
Installation
Rack Mount

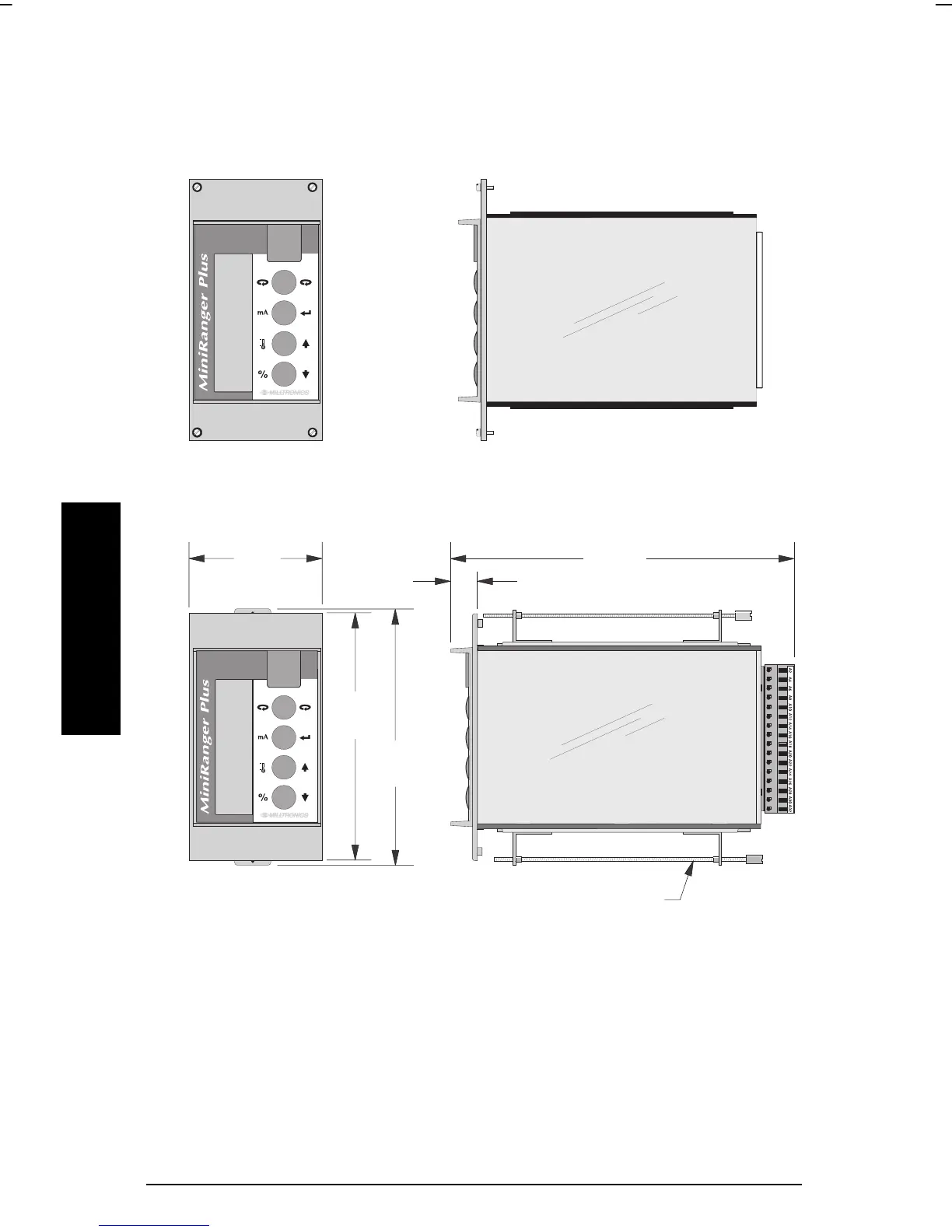

The MiniRanger Plus rack mount version is a standard DIN 3U/14 HP, 4 rail
plug-in unit, for a standard 84 HP deep sub-rack.
Panel Mount
72mm
(2.9”)
208mm
(8.2”)
144mm
(5.7”)
150mm
(5.9”)
slip on mounting bracket top and bottom
screws to be tightened to no more than
1 inch / lb. torque
16mm
(0.6”)
