7ML19981CJ01 MiniRanger Plus Page 19
Installation
Synchronization
In applications where more than one MiniRanger Plus, to a maximum of 8,
are going to be used or where their transducers are sharing a common
conduit, synchronization is required. When synchronized, no device
transmits within 180 ms of the prior one(s).
To synchronize, interconnect the SYNC terminals of all devices and ensure
that there is a common electrical ground interconnecting all units.
To synchronize MiniRanger Plus with other Milltronics products, consult
Milltronics or your distributor.

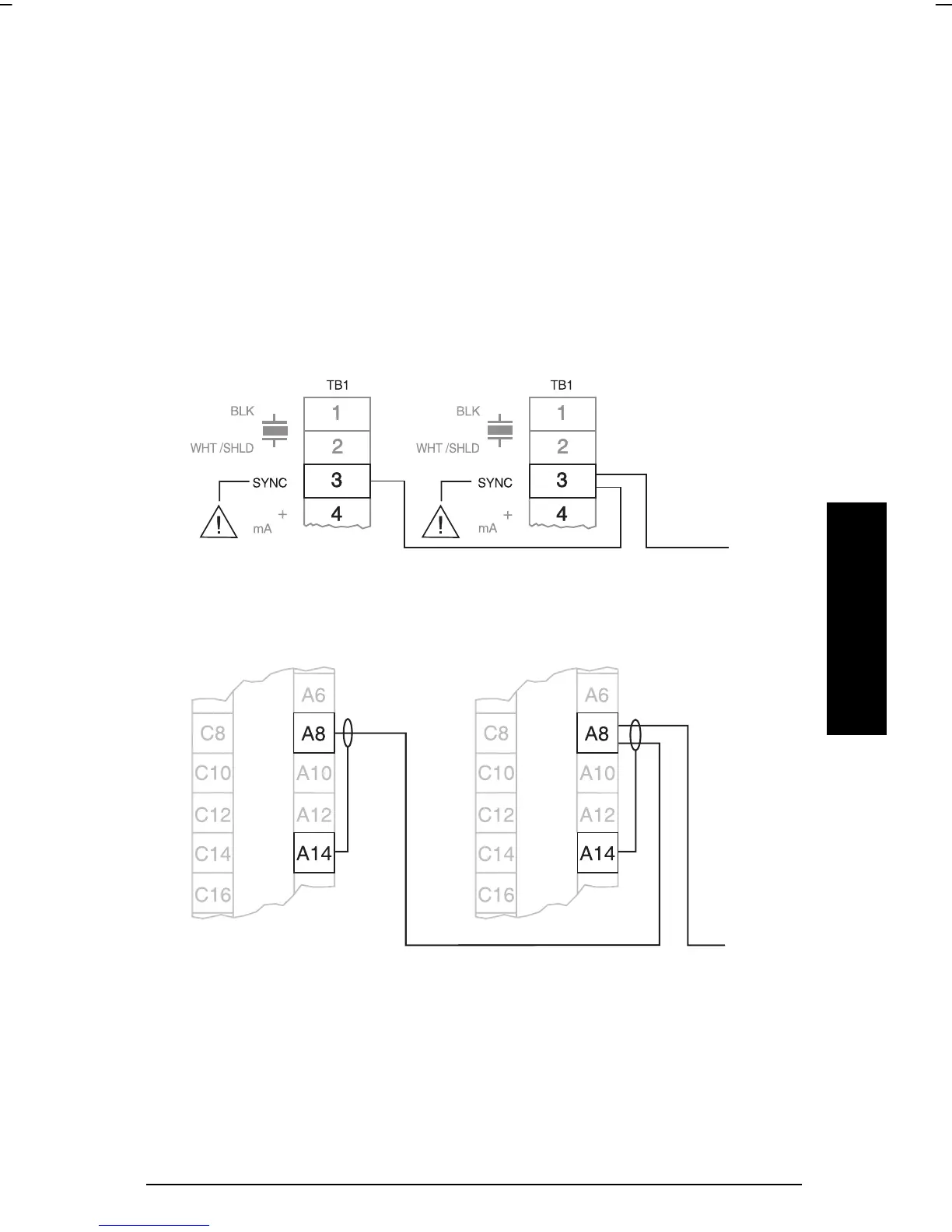

Wall Mount
to next
device
MiniRanger Plus
#1
MiniRanger Plus
#2
Rack and Panel Mount
to next
device
MiniRanger Plus
#1
MiniRanger Plus
#2
