Page 40 MiniRanger Plus 7ML19981CJ01
Functional
mA Output
The MiniRanger Plus can be programmed to provide an mA output (P200) of
0 to 20 or 4 to 20 mA, and for proportional or inverse span.
Programming
Upon entering the Program mode, the mA output level holds its prior value.
Run

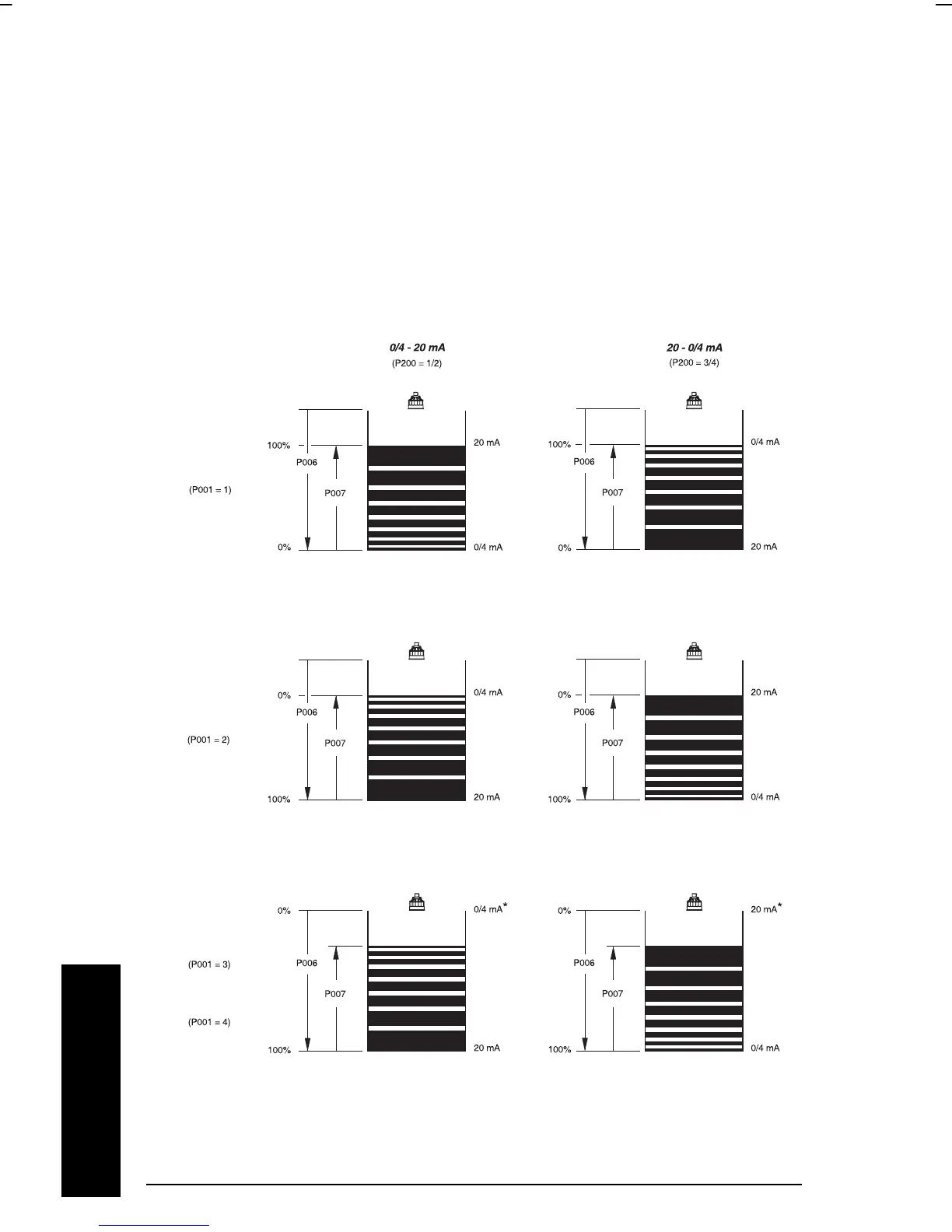

The mA output responds in the following manner:
* reference value only. mA level limited by near blanking.
0 and 100% are percentage of full scale reading (m, cm, mm, ft, in)
