Installation
Mounting
Wall Mount

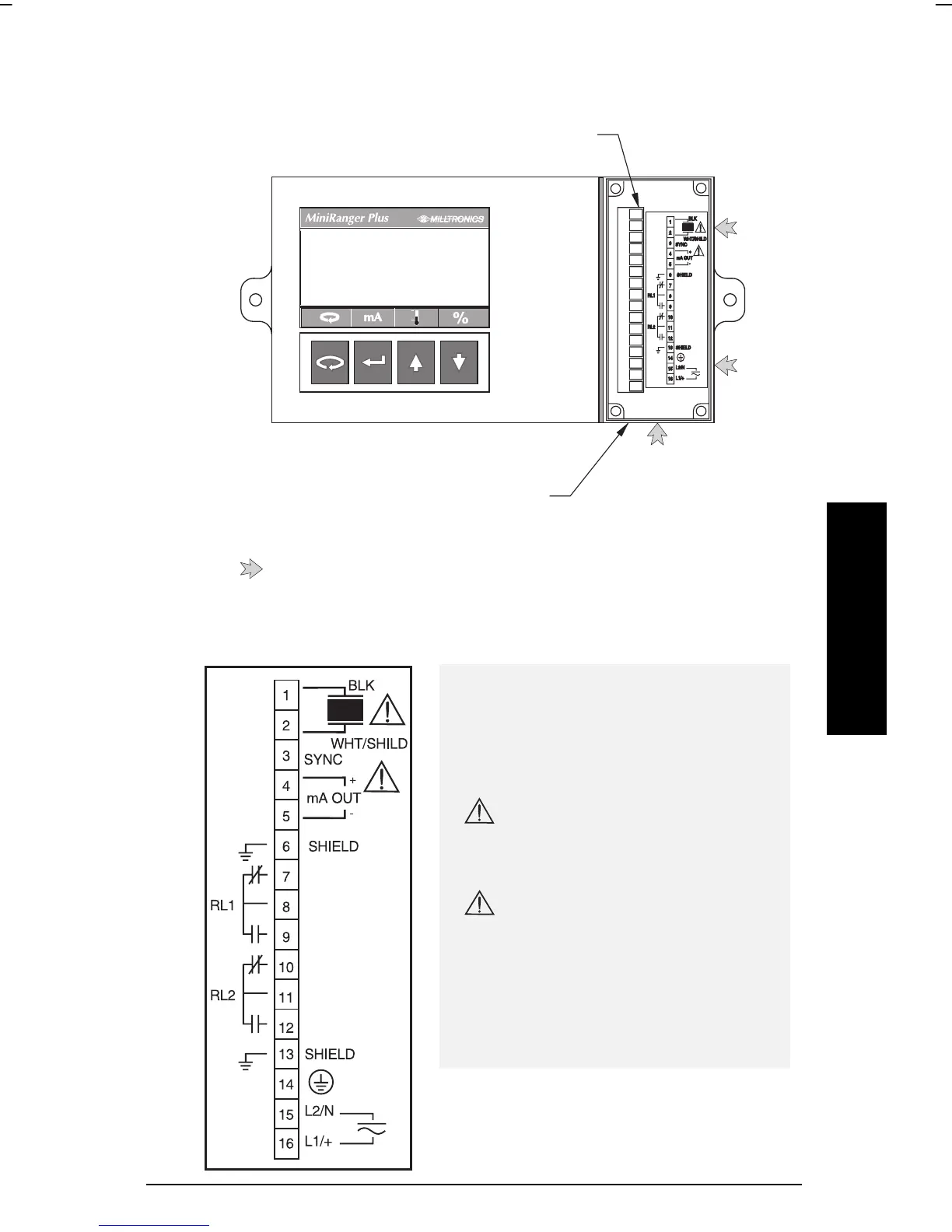

Terminal Block Layout (Wall Mount)
Notes:
Non metallic enclosure does not provide
grounding between connections. Use
grounding type bushings and jumpers
All field wiring must have
insulation suitable for at least
250 V.
Hazardous voltage present on
transducer terminals during
operation.
Relay contact terminals are for use with
equipment having no accessible live
parts and wiring having insulation
suitable for at least
250 V.
terminal block
integral junction box (cover removed)
with terminal block
Conduit entry location. Recommend drilling the enclosure with a hole
saw and the use of suitable cable glands to maintain ingress rating
To Next Page
