7ML19981CJ01 MiniRanger Plus Page 27
Start Up

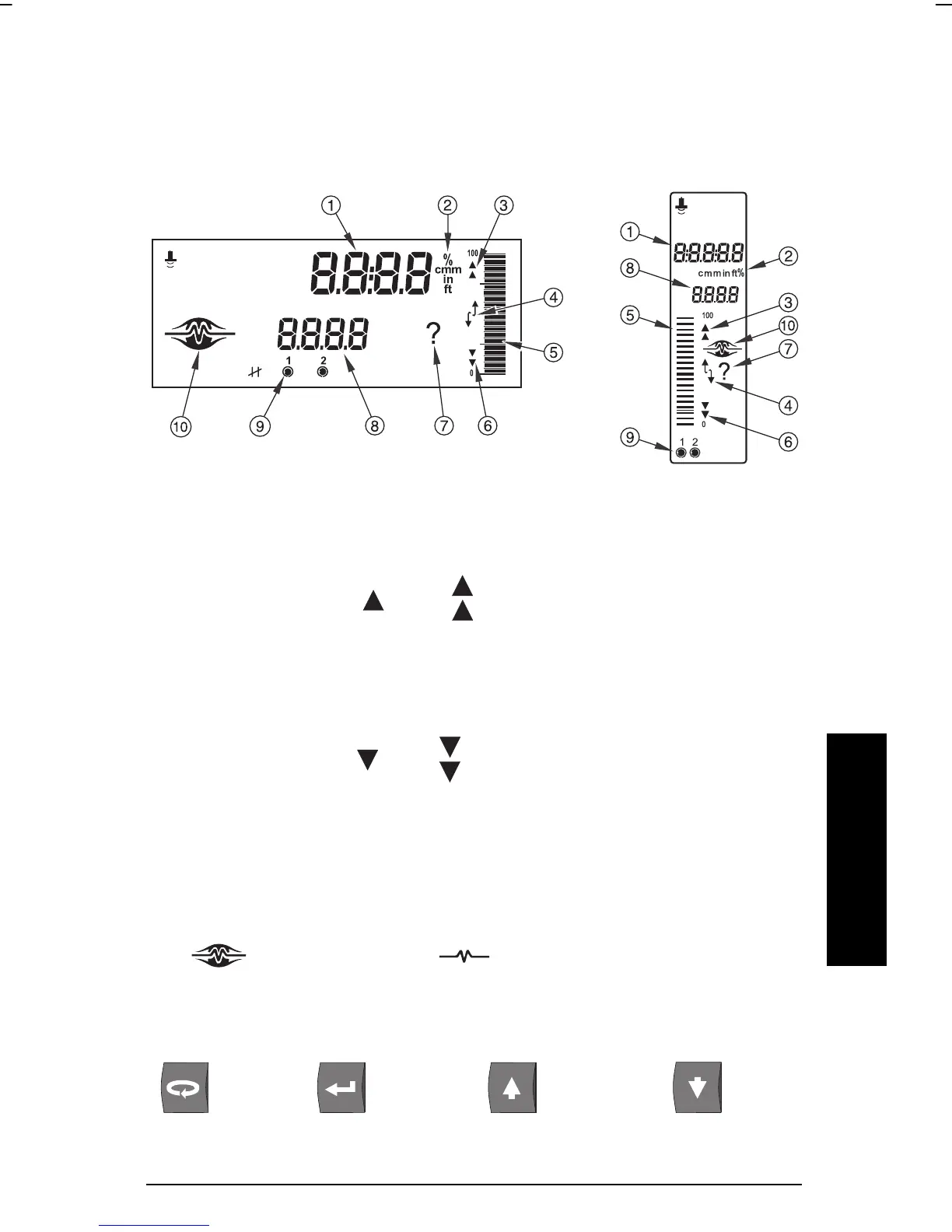

Run Mode
LCD
Wall Mount Rack and Panel Mount
1. reading
2. units
3. high alarm indicators:
= high, = high-high
4. process material level rising or falling
5. bar graph representation of material level, 0 to 100% of span
6. low alarm indicators:
= low, = low-low
7. reading questionable, appears during fail-safe operation
8. auxiliary reading
9. relay status
10.
= normal operation
=fail-safe operation
Keypad
access
program
mode
display m
A
(auxiliary)
display
temperature
(auxiliary)
toggle
% and
units
