Installation
Installation
Notes:
• Installation shall only be performed by qualified personnel and in
accordance with local governing regulations.
• This product is susceptible to electrostatic shock. Follow proper
grounding procedures.

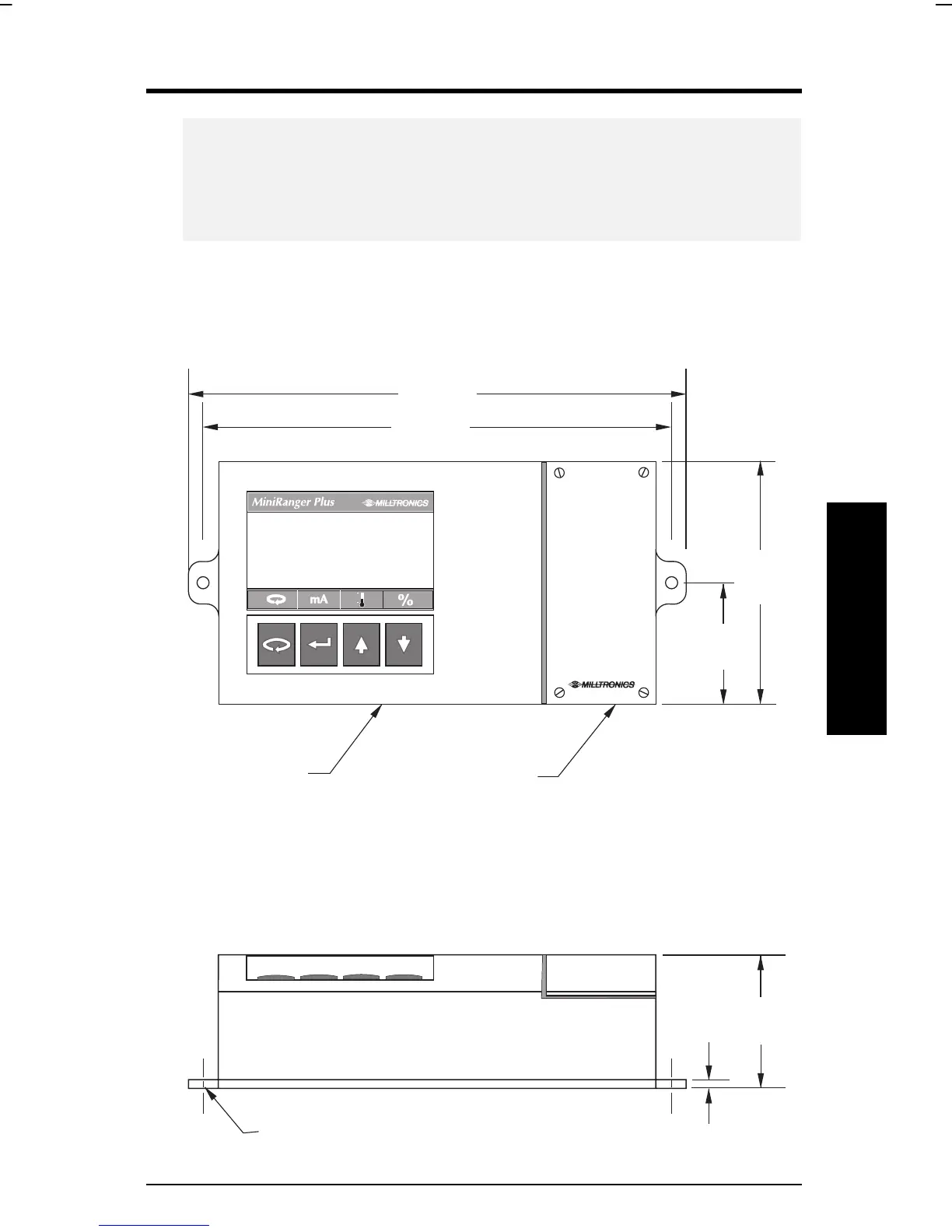

Dimensions
Wall Mount
270mm
(10.6”)
254mm
(10”)
138mm
(5.4”)
69mm
(2.7”)
integral junction bo
x
sealed enclosure
74mm
(2.9”)
mounting hole
6.4mm (1/4) ∅
5mm
(0.2”)
