7ML19981CJ01 MiniRanger Plus Page 21

Installation

Communication

Rack and Panel Mount (only)

Bipolar and RS-232 communication are both achieved through a common

`TX' port terminal C4 and C6, without any hardware or software intervention.

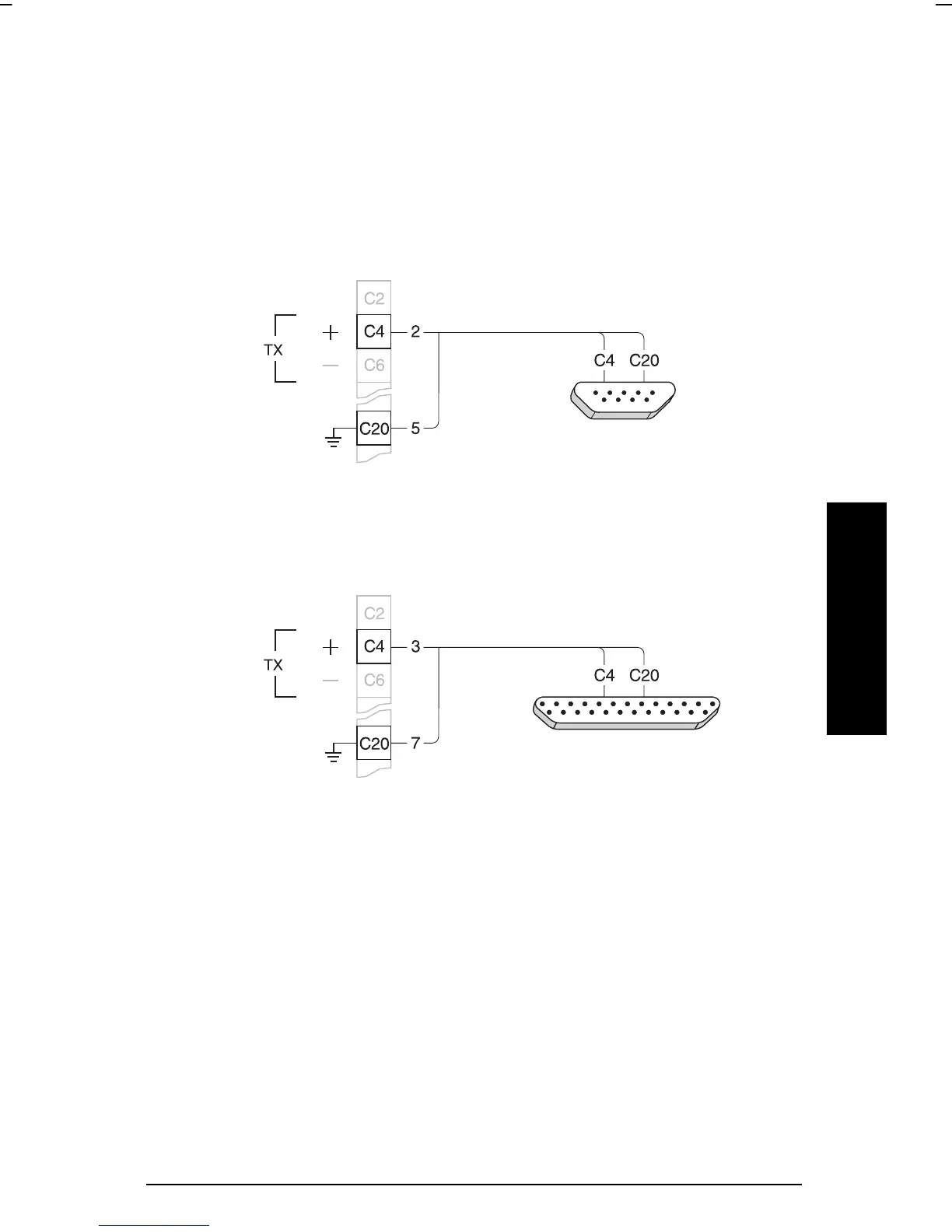

IBM PC Computer Connection / RS-232

computer serial port

DB-9 connector

MiniRanger Plus

(Rack and Panel mount (only)

MiniRanger Plus

(Rack and Panel mount (only)

*100 Ω

computer serial port

DB-25 connector

* C20 has 100Ω internal resistance to ground to avoid ground loops
