Page 22 MiniRanger Plus 7ML19981CJ01
Installation

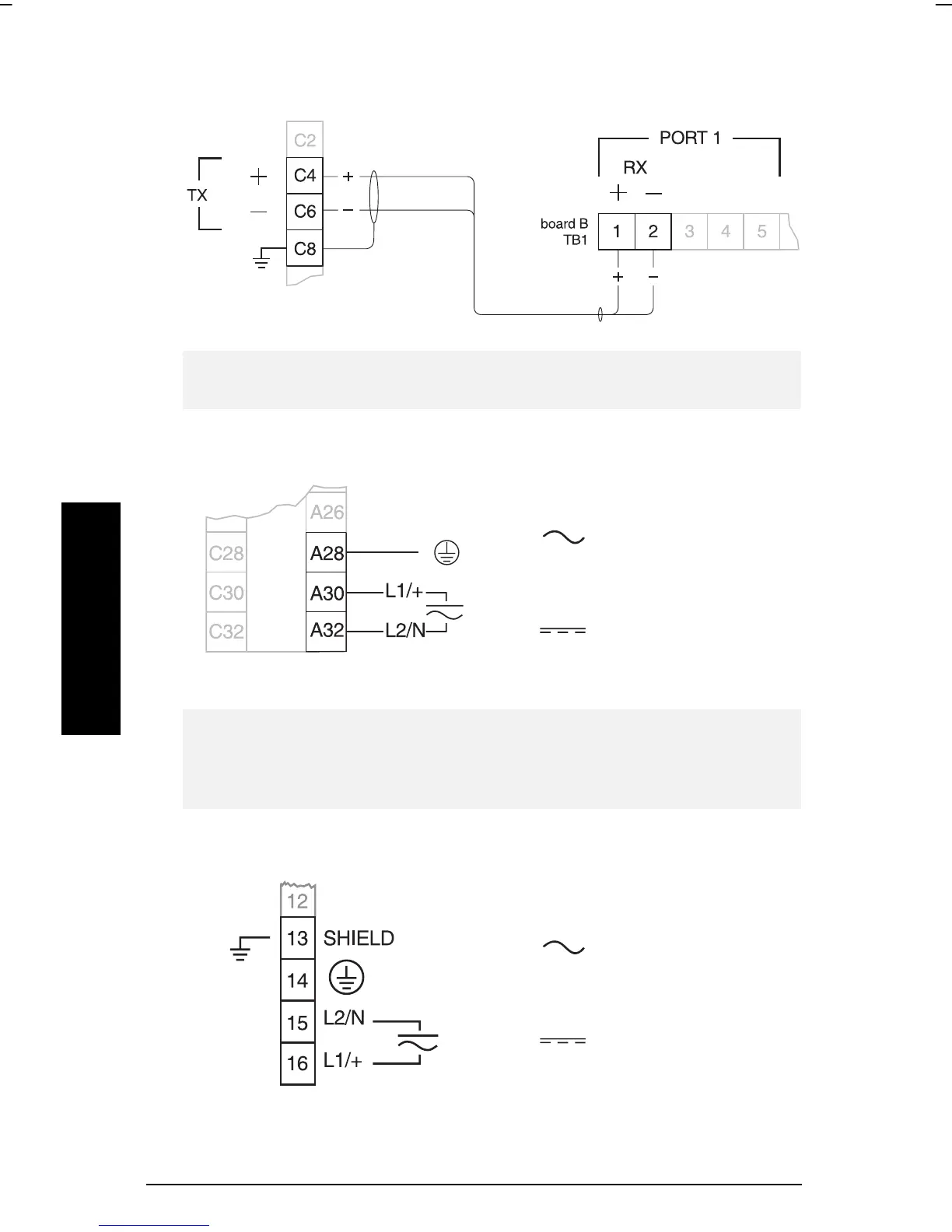

BIC-2 Connection / Bipolar Current
Note:
Ground shield at one end only
Power
9-250 V
, 40 – 70 Hz, 38 VA, 12W
or
9-250 V
, 11W
Note:
A circuit breaker or switch in the building installation, marked as the
disconnect switch, shall be in close proximity to the equipment and within
easy reach of the operator.
Wall Mount only
9-250 V
, 40 – 70 Hz, 38 VA, 12W
or
9-250 V
, 11W
MiniRanger Plus Rack and Panel mount BIC-2
♦
C8 is direct to ground
typical of BIC-2 ports 1-6
♦
